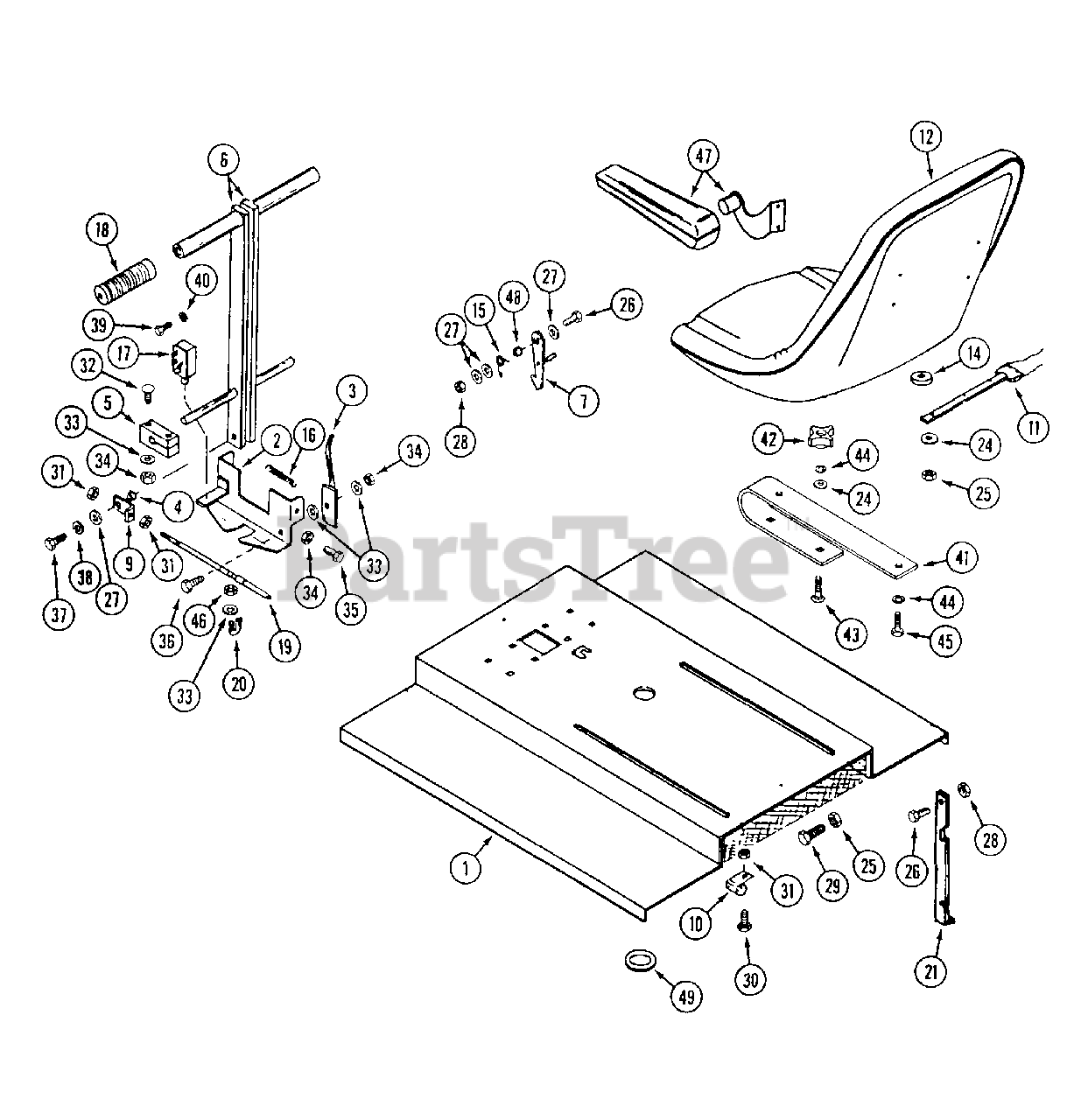

FR-180 C (135-018-190) - White Outdoor Front-Mount Riding Mower (1995) Seat Lid & Steering Parts Diagram

Front-Mount Riding Mower

Seat Lid & Steering Parts Diagram

  • Title

1

White Outdoor WD-C44237

LID - seat

$

$

Not available

2

White Outdoor WD-201-0010

BRACKET - lever lock

$

$

Not available

3

White Outdoor WD-200-0012

LATCH - lever lock

$

$

Not available

4

White Outdoor WD-C42895

BUSHING

$

$

Not available

5

White Outdoor WD-200-0010

BEARING - block

$

$

Not available

6

White Outdoor WD-C44915

LEVER - steering

$

$

Not available

7

WD-C44481

LATCH - seat lid

$

$

Not available

9

White Outdoor WD-C42896

BRACKET - steering cable end

$

$

Not available

10

WD-C32455

RETAINER - harness, seat lid

$

$

Not available

11

White Outdoor WD-900-2001

SWITCH - seat

$

$

Not available

12

White Outdoor WD-C43202

SEAT

$

$

Not available

14

White Outdoor WD-900-5523

SPACER - seat

$

$

Not available

15

White Outdoor WD-900-5700

SPRING - latch, seat lid

$

$

Not available

16

White Outdoor WD-900-5501

SPRING - bracket, lever lock

$

$

Not available

17

White Outdoor WD-900-2029

SWITCH - safety

$

$

Not available

18

White Outdoor WD-900-5500

GRIP - handle
(Superseded to WD-C37631)

$

$

Not available

19

White Outdoor WD-C42894

CABLE - steering

Note: (See "Steering Cable Kit" illustration and parts list.)

$

$

Not available

20

White Outdoor WD-900-5503

CLAMP - steering cable
(Superseded to WD-C37616)

$

$

Not available

21

White Outdoor WD-200-0008

PROP - seat lid

$

$

Not available

24

WD-900-6152

WASHER - 5/16"

$

$

Not available

25

WD-131-69

NUT - 5/16"

$

$

Not available

26

WD-113-4

BOLT - 1/4" - 20 x 1"

$

$

Not available

27

White Outdoor WD-195-102

WASHER - 1 /4"

$

$

Not available

28

White Outdoor WD-131-71

NUT - 1/4" - 20 lock

$

$

Not available

29

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

30

WD-182-528

SCREW - #10 - 32 x 1/2"

$

$

Not available

31

White Outdoor WD-900-6150

NUT - #10 - 32

$

$

Not available

32

WD-111-114

BOLT - 1/4" - 20 x 1-1/2" carriage

$

$

Not available

33

White Outdoor WD-195-102

WASHER - 1/4"

$

$

Not available

34

White Outdoor WD-131-71

NUT - 1/4" - 20 lock

$

$

Not available

35

White Outdoor WD-113-3

BOLT - 1/4" - 20 x 3/4"

$

$

Not available

36

WD-C42359

BOLT 1/4" - 20 x 2"

$

$

Not available

37

White Outdoor WD-113-3

BOLT - 1/4" - 20 x 3/4"

$

$

Not available

38

WD-192-19

LOCKWASHER - 1/4"

$

$

Not available

39

WD-182-525

SCREW - #10 - 32 x 3/8"

$

$

Not available

40

WD-192-18

LOCKWASHER - 3/16"

$

$

Not available

41

White Outdoor WD-C43137

SPRING - seat

$

$

Not available

42

White Outdoor WD-C43438

KNOB - seat

$

$

Not available

43

White Outdoor WD-111-204

BOLT - carriage 5/16" - 18 x 1-1/4"

$

$

Not available

44

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

45

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

46

WD-131-1102

NUT - 1/4" - 20

$

$

Not available

47

~NSS

KIT - arm rest

Note: (Optional) (order as complete goods)

$

$

Not available

48

WD-C44498

SPACER

$

$

Not available

49

White Outdoor WD-900-5829

GROMMET - 1/2" x 1"

$

$

Not available

WD-C25165

GROMMET - 1" x 1-3/4"

$

$

Not available

WD-C22947

TIE - nylon

$

$

Not available
