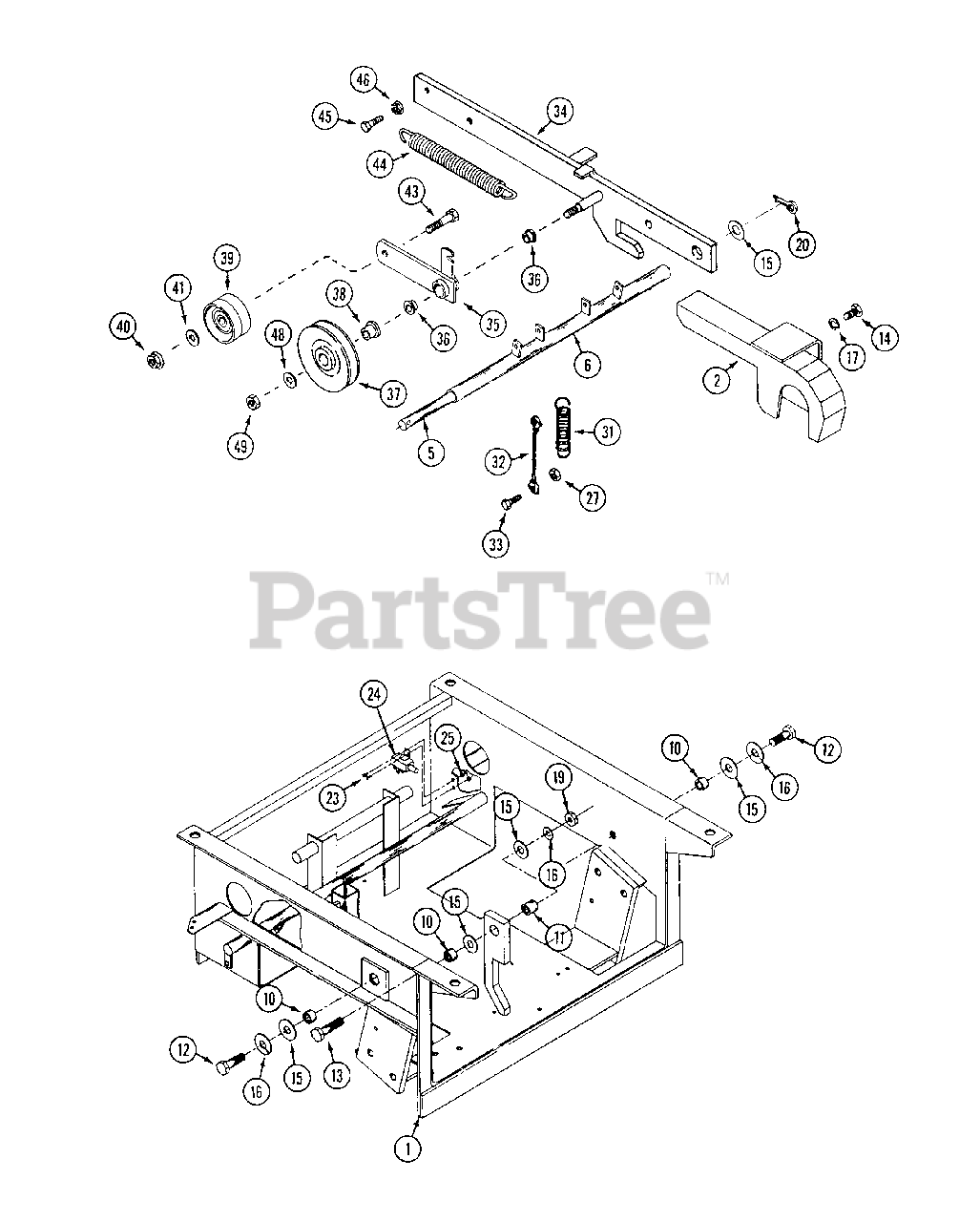

FR-180 C (135-018-190) - White Outdoor Front-Mount Riding Mower (1995) Base Assembly Parts Diagram

Front-Mount Riding Mower

Base Assembly Parts Diagram

  • Title

1

White Outdoor WD-C42892

BASE

$

$

Not available

2

White Outdoor WD-C44403

GUARD - belt

$

$

Not available

?3

WD-113-1182

NUT - 1/2" - 13

$

$

Not available

?4

White Outdoor WD-195-533

WASHER

$

$

Not available

5

WD-300-0022

PIN - cross bar

$

$

Not available

6

White Outdoor WD-300-0014

BAR - cross

$

$

Not available

?7

White Outdoor WD-300-0041

TUBE - wire

$

$

Not available

?8

White Outdoor WD-111-0023

LOCK - forward nose down

$

$

Not available

10

White Outdoor WD-300-0013S

BUSHING - deck lift arm (3/8" long)
(Superseded to WD-C37576)

$

$

Not available

11

White Outdoor WD-300-0013

BUSHING - pivot (1/2" long)
(Superseded to WD-C37586)

$

$

Not available

12

White Outdoor WD-113-417

BOLT - 1/2" - 13 x 1-1/4"

$

$

Not available

13

White Outdoor WD-113-441

BOLT - 1/2" - 13 x 2-1/4"

$

$

Not available

14

White Outdoor WD-113-102

BOLT - 5/16" - 18 x 3/4"

$

$

Not available

15

White Outdoor WD-195-106

WASHER - 1/2"

$

$

Not available

16

White Outdoor WD-192-23

LOCKWASHER - 1/2"

$

$

Not available

17

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

19

White Outdoor WD-129-105

NUT - 1/2" - 13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

20

WD-132-310

PIN - cotter 1/8" x 1"

$

$

Not available

23

WD-C37597

SCREW - machine #10 - 32 x 5/8"

$

$

Not available

24

White Outdoor WD-900-2029

SWITCH - safety

$

$

Not available

25

White Outdoor WD-900-6150

NUT - lock #10 - 32

$

$

Not available

27

White Outdoor WD-131-71

NUT - lock 1/4" - 20

$

$

Not available

?28

White Outdoor WD-129-103

NUT - 3/8" - 16
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 20+

0

?29

White Outdoor WD-192-21

LOCKWASHER - 3/8"
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

?30

White Outdoor WD-113-257

BOLT - 3/8" - 16 x 2-1/2"

$

$

Not available

31

White Outdoor WD-900-5516

SPRING - lift assist

$

$

Not available

32

White Outdoor WD-900-5518

CABLE - lift

$

$

Not available

33

WD-113-4

BOLT - 1/4" - 20 x 1"

$

$

Not available

34

WD-C45009

ARM - deck L.H.

Note: (Shown)

$

$

Not available

White Outdoor WD-C44250

ARM - deck R.H.

$

$

Not available

35

White Outdoor WD-C45095

ARM - idler

$

$

Not available

36

White Outdoor WD-C27501

BEARING - flange

$

$

Not available

37

White Outdoor WD-C25370

PULLEY - "V" idler

$

$

Not available

38

White Outdoor WD-C45102

BUSHING - pulley

$

$

Not available

39

White Outdoor WD-C45121

PULLEY - flat
(Superseded to WD-C48400)

$

$

Not available

40

White Outdoor WD-131-938

NUT - 3/8" - 16 lock, flange

$

$

Not available

41

White Outdoor WD-195-104

WASHER - 3/8"

$

$

Not available

43

White Outdoor WD-113-219

BOLT - 3/8" - 16 x 2"

$

$

Not available

44

White Outdoor WD-C44242

SPRING - extension

$

$

Not available

45

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

46

White Outdoor WD-131-911

NUT - 5/16" - 18 flange lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

48

UNKNOWN

$

$

Not available

49

UNKNOWN

$

$

Not available
