FR-180 C (134-018-190) - White Outdoor Front-Mount Riding Mower (1994) Hydraulic Lift Assembly Parts Diagram

Front-Mount Riding Mower

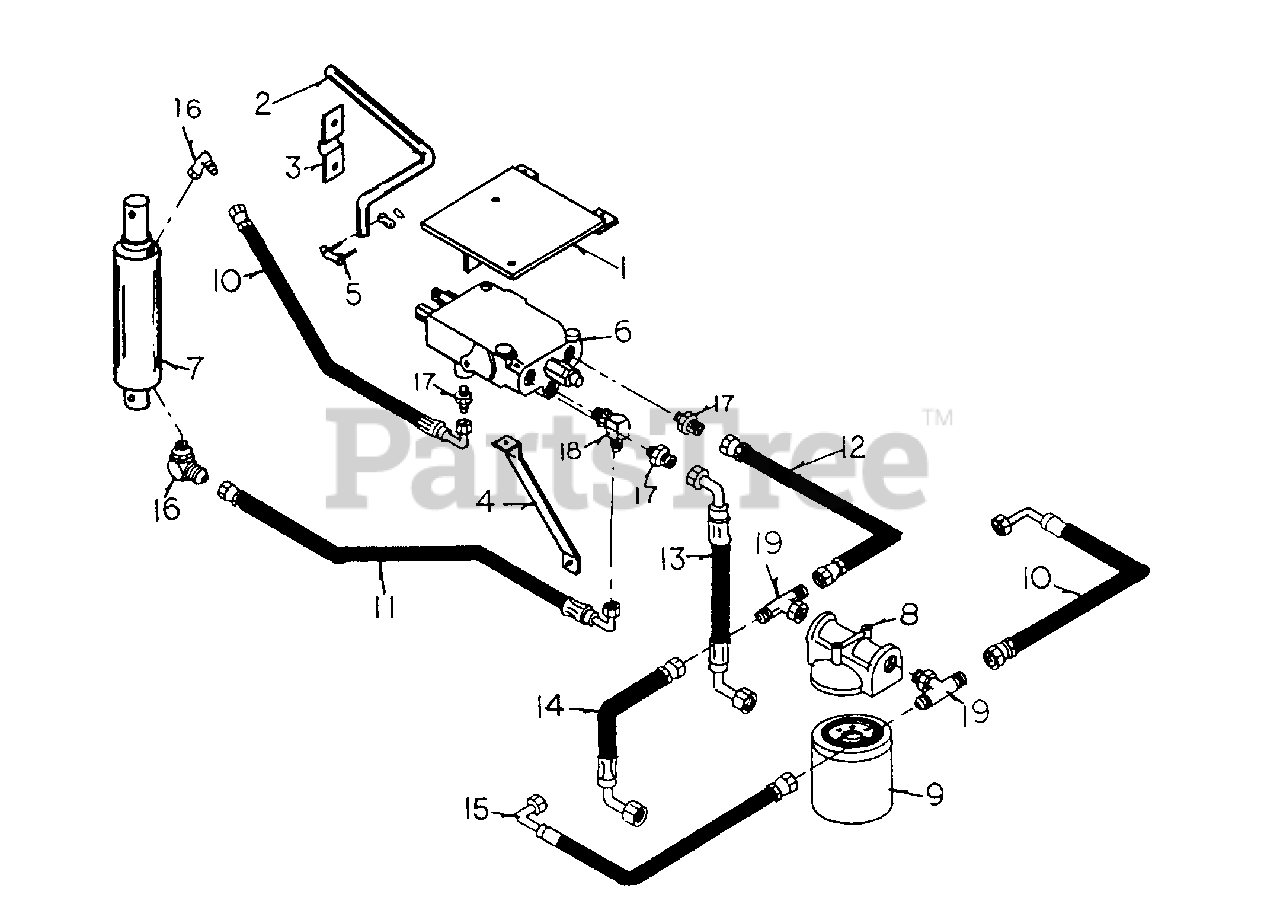

Hydraulic Lift Assembly Parts Diagram

  • Title

1

WD-212-0002

MOUNT - valve

$

$

Not available

2

White Outdoor WD-212-0003

VALVE LEVER

$

$

Not available

3

White Outdoor WD-111-0004

BEARING - clutch brake cross rod

$

$

Not available

4

WD-212-0005

SUPPORT - valve

$

$

Not available

5

White Outdoor WD-900-1004

CONNECTING LINK - #50

$

$

Not available

6

White Outdoor WD-900-8000

VALVE

$

$

Not available

7

White Outdoor WD-900-8070

LIFT CYLINDER

$

$

Not available

8

White Outdoor WD-900-8072

HOUSING - oil filter
(Superseded to WD-C37636)

$

$

Not available

9

White Outdoor WD-900-8073

ELEMENT - oil filter
(Superseded to WD-C37637)

$61.99

$

Usually ships in 3-6 days

0

10

White Outdoor WD-900-8103

HOSE - 3/8" ID x 26" long
(Superseded to WD-C37794)

$

$

Not available

11

White Outdoor WD-900-8106

HOSE - 3/8" ID x 31" long

$

$

Not available

12

White Outdoor WD-900-8101

HOSE - 3/8" ID x 20" long

$

$

Not available

13

White Outdoor WD-900-8102

HOSE - 3/8" ID x 13" long

$

$

Not available

14

WD-900-8105

HOSE - 3/8" ID x 11.5" long

$

$

Not available

15

WD-900-8104

HOSE - 3/8" ID x 21" long

$

$

Not available

16

White Outdoor WD-900-8116

FITTING - male o-ring, 90° male tube adp.

$

$

Not available

17

White Outdoor WD-900-8094

FITTING - male o-ring, male tube adp.

$

$

Not available

18

WD-900-8097

FITTING - male o-ring, 90° male tube adp.

$

$

Not available

19

White Outdoor WD-900-8095

FITTING - male tube, male o-ring tee

$

$

Not available
