FR-180 C (134-018-190) - White Outdoor Front-Mount Riding Mower (1994) Engine And Attaching Parts Parts Diagram

Front-Mount Riding Mower

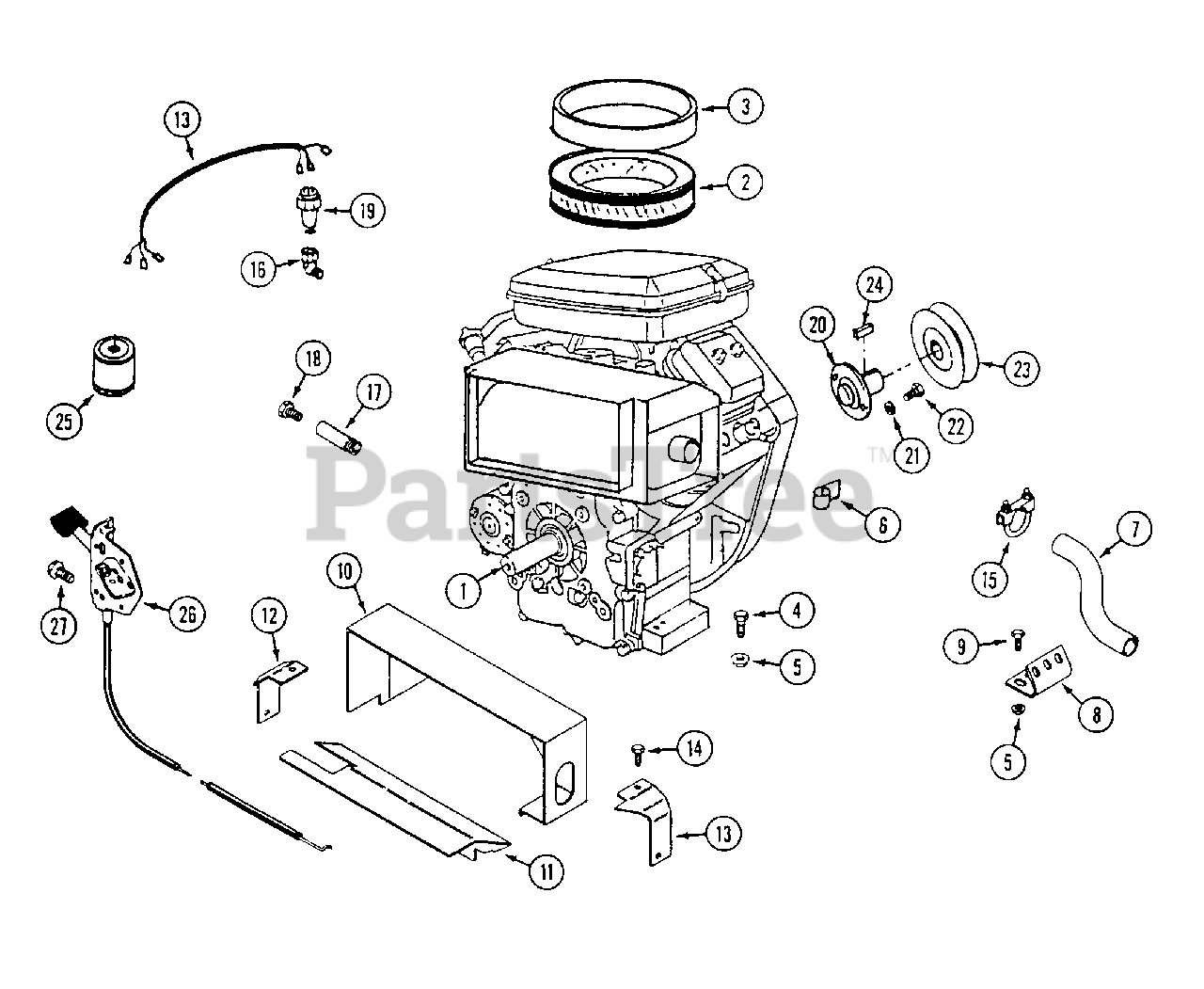

Engine And Attaching Parts Parts Diagram

  • Title
1

ENGINE - Briggs & Stratton Model 350447, (18 hp)

$

$

Not available

2

White Outdoor WD-900-5005

ELEMENT - air cleaner
(Superseded to BS-394018S)

$25.99

$

In Stock, Qty 8

0

3

White Outdoor WD-900-5008

PRE-CLEANER
(Superseded to BS-272490S)

$5.49

$

In Stock, Qty 16

0

4

WD-113-104

BOLT - 5/16" - 18 x 1-1/4"

$

$

Not available

5

White Outdoor WD-131-911

NUT - 5/16" - 18 flange lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

6

WD-C32455

CLIP - "J"

$

$

Not available

7

White Outdoor WD-C44244

PIPE - exhaust

$

$

Not available

8

White Outdoor WD-C44243

BRACKET - exhaust pipe

$

$

Not available

9

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

10

White Outdoor WD-C44259

DUCT - muffler, upper

$

$

Not available

11

White Outdoor WD-C44256

DUCT - bottom

$

$

Not available

12

White Outdoor WD-C44254

SUPPORT - duct front

$

$

Not available

13

White Outdoor WD-C44255

SUPPORT - duct rear

$

$

Not available

14

White Outdoor WD-C37200

SCREW - M6 x 10

$

$

Not available

15

White Outdoor WD-C28294

CLAMP - exhaust

$

$

Not available

16

WD-217-1085

FITTING - street elbow, 1/4" NPT 45°

$

$

Not available

17

WD-C33949

NIPPLE - pipe 3.5"

$

$

Not available

18

WD-218-5154

PLUG - 1/2" - 20

$

$

Not available

19

White Outdoor WD-900-5017

UNIT - oil sending
(Superseded to WD-C37531P)

$

$

Not available

20

$

$

Not available

21

White Outdoor WD-192-21

LOCKWASHER - 3/8"
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

22

White Outdoor WD-113-207

BOLT - 3/8" - 16 x 1"
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor WD-900-2503

PULLEY - engine

Note: (Use 83-55 set screw)

$

$

Not available

24

White Outdoor WD-100-0014

KEY - 1/4" x 1/4" x 1"
(Superseded to 714-0128)

$4.99

$

In Stock, Qty 6

0

25

White Outdoor WD-C34374

FILTER - oil
(Superseded to BS-491056)

$9.99

$

In Stock, only 1 left!

0

26

$

$

Not available

26

White Outdoor WD-900-5605

CABLE - throttle

$

$

Not available

27

WD-900-6152

SCREW - #12 x 1/2"

$

$

Not available
