FR-180 C (134-018-190) - White Outdoor Front-Mount Riding Mower (1994) Electric Clutch (PTO) Parts Diagram

Front-Mount Riding Mower

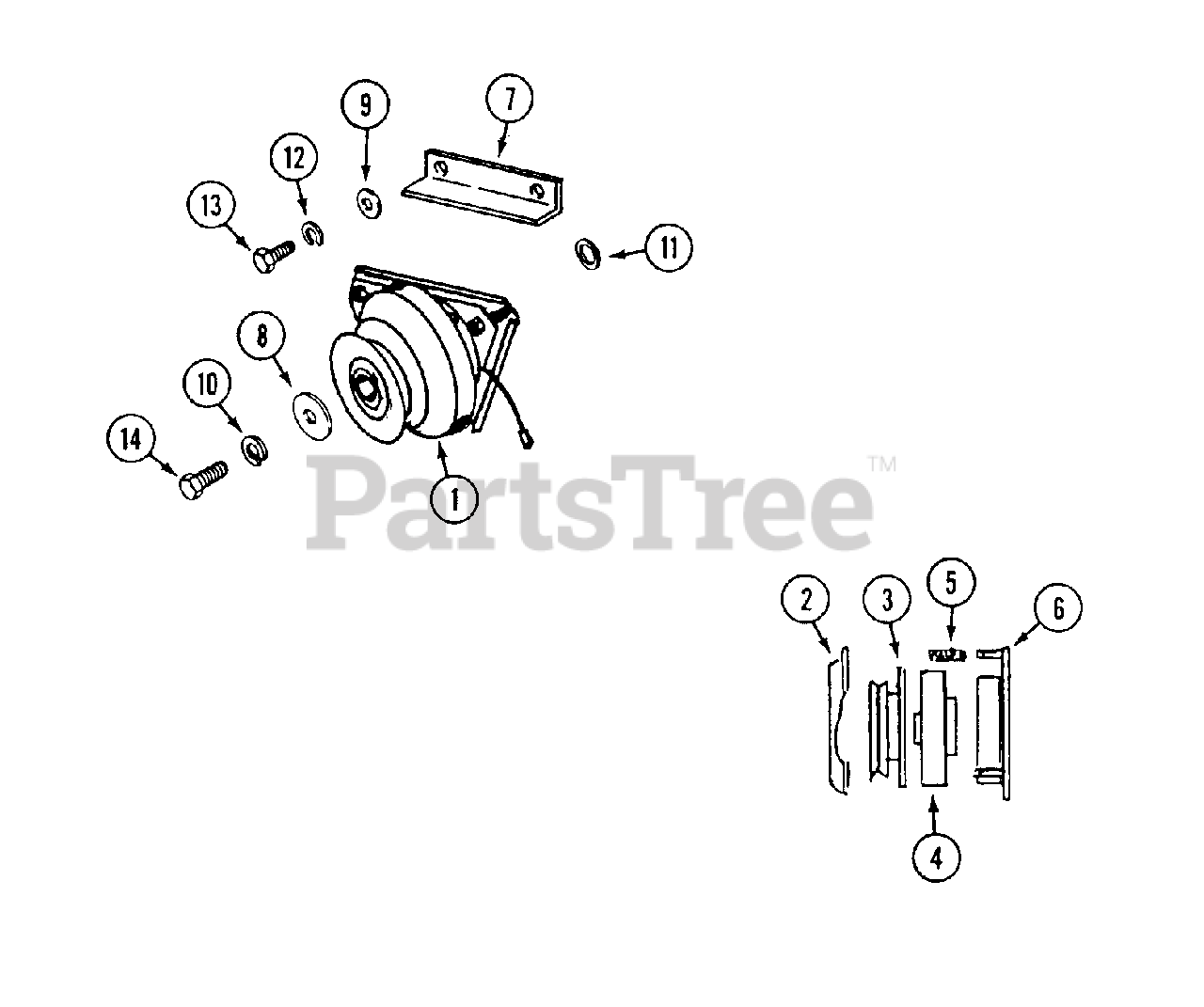

Electric Clutch (PTO) Parts Diagram

  • Title
1

White Outdoor WD-900-5581

CLUTCH ASSEMBLY

$

$

Not available

2

White Outdoor WD-900-5582

BRAKE - clutch

$

$

Not available

3

White Outdoor WD-900-5583

ARMATURE - clutch

$

$

Not available

4

White Outdoor WD-900-5584

ROTOR - clutch
(Superseded to WD-C37551)

$

$

Not available

5

White Outdoor WD-900-5586

KIT - spring and nut

Note: (3 each)

$

$

Not available

6

White Outdoor WD-900-5585

COIL - clutch
(Superseded to 759-3541)

$

$

Not available

7

WD-112-0011

BRACKET - clutch stop

$

$

Not available

8

White Outdoor WD-C31615

WASHER - retaining

$

$

Not available

9

White Outdoor WD-195-104

WASHER - .438" x 1"

$

$

Not available

10

White Outdoor WD-192-21

LOCKWASHER - 3/8"
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor WD-C31614

WASHER - 1-1/8"

$

$

Not available

12

WD-192-22

LOCKWASHER - 7/16"

$

$

Not available

13

WD-113-335

BOLT - 7/16" - 14 x 3/4"

$

$

Not available

14

White Outdoor WD-114-203

BOLT - 3/8" - 24 x 1-1/2"
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

?15

White Outdoor WD-113-0010

BRACKET - clutch stop

Note: (Early production)

$

$

Not available
