FR-180 C (134-018-190) - White Outdoor Front-Mount Riding Mower (1994) Drive Assembly L.H. Parts Diagram

Front-Mount Riding Mower

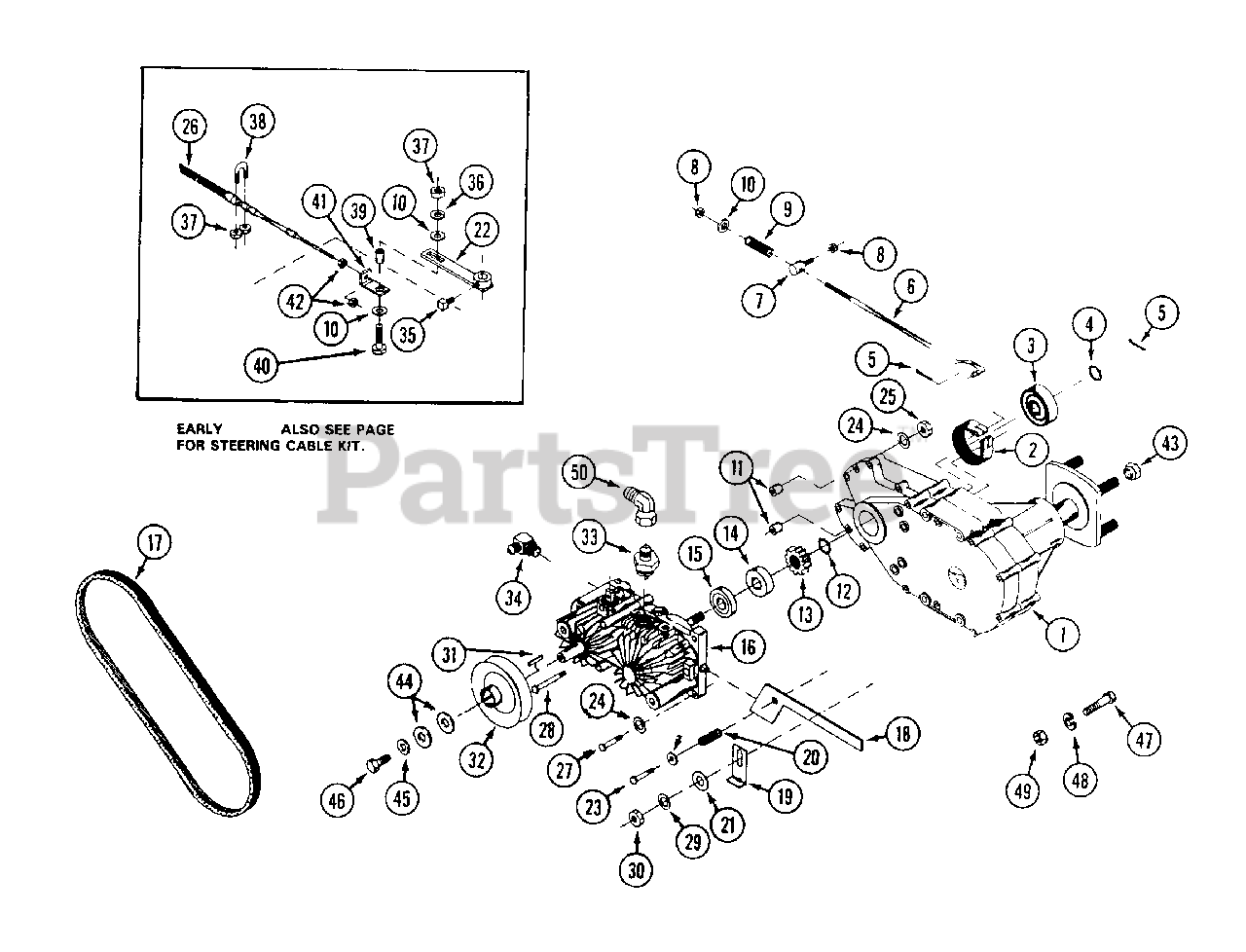

Drive Assembly L.H. Parts Diagram

  • Title

1

White Outdoor WD-900-8134

TRANSMISSION - ZT

$

$

Not available

2

White Outdoor WD-900-7050

BAND - brake

$

$

Not available

3

White Outdoor WD-900-7051

DRUM - brake

$

$

Not available

4

White Outdoor WD-900-7052

RING - snap

$

$

Not available

5

White Outdoor WD-132-332

PIN - cotter 1/8" x 1"

$

$

Not available

6

White Outdoor WD-114-0004

ROD - brake

$

$

Not available

7

White Outdoor WD-111-0014

COLLAR - rod

$

$

Not available

8

White Outdoor WD-131-71

NUT - lock 1/4" - 20

$

$

Not available

9

White Outdoor WD-900-5722

SPRING

$

$

Not available

10

White Outdoor WD-195-102

WASHER - 1/4

$

$

Not available

11

White Outdoor WD-900-7045

SPACER

$

$

Not available

12

White Outdoor WD-900-7046

RING - snap
(Superseded to 716-0865)

$4.49

$

In Stock, only 1 left!

0

13

White Outdoor WD-900-7047

GEAR

$

$

Not available

14

White Outdoor WD-900-7048

BEARING
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

15

White Outdoor WD-900-7049

SPACER

$

$

Not available

16

White Outdoor WD-900-8133

PUMP - hydro L.H.

$

$

Not available

17

White Outdoor WD-900-3027

BELT - pump drive

$

$

Not available

18

White Outdoor WD-114-0005

LEVER - transmission dump

$

$

Not available

19

WD-114-0001

BRACKET - dump lever stop

$

$

Not available

20

White Outdoor WD-900-6501

SPRING - compression

$

$

Not available

21

WD-900-6052

WASHER - 3/8"

$

$

Not available

22

WD-114-0013

ARM - transmission

$

$

Not available

23

WD-900-6019

BOLT - dump lever

$

$

Not available

24

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

25

WD-900-6050

NUT - 5/16" - 18

$

$

Not available

26

~NSS

CABLE - steering 58"

Note: (See steering cable kit)

$

$

Not available

27

WD-113-120

BOLT - 5/16" - 18 x 1-3/4"

$

$

Not available

28

White Outdoor WD-C37751

BOLT - 5/16" - 18 x 7-1/2"

$

$

Not available

29

White Outdoor WD-C37591

LOCKWASHER - 3/8"

$

$

Not available

30

White Outdoor WD-C37592

NUT - 3/8" - 16
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 15

0

31

White Outdoor WD-900-6168

KEY - 5 x 5 x 25 mm

$

$

Not available

32

White Outdoor WD-900-2552

PULLEY - 4" O.D. x 15 mm ID

Note: (Use C41928 set screw)

$

$

Not available

33

WD-218-5354

FITTING - male adapter

$

$

Not available

34

White Outdoor WD-900-8116

FITTING - male adaptor 90°

$

$

Not available

35

White Outdoor WD-C37756

SCREW - set 5/16" - 18 x 1/2" square head

Note: (Early production)

$

$

Not available

36

WD-129-19

LOCKWASHER - 1 /4"

$

$

Not available

37

WD-121-101

NUT - 1/4" - 20

$

$

Not available

38

White Outdoor WD-900-5503

CLAMP - cable
(Superseded to WD-C37616)

$

$

Not available

39

White Outdoor WD-200-0014

BUSHING - cable
(Superseded to WD-C42895)

$

$

Not available

40

WD-113-4

BOLT - 1/4" - 20 x 1"

$

$

Not available

41

White Outdoor WD-200-0013

BRACKET - cable end
(Superseded to WD-C37614)

$

$

Not available

42

White Outdoor WD-900-6150

NUT lock #10 - 32

$

$

Not available

White Outdoor WD-900-4048

WHEEL ASSEMBLY

Note: Not shown

$

$

Not available

White Outdoor WD-900-4042

TIRE - 18 x 9.50 - 8

$

$

Not available

White Outdoor WD-900-4040

RIM - wheel

$

$

Not available

43

White Outdoor WD-900-6138

NUT - lug 1/2" - 20

$

$

Not available

44

White Outdoor WD-195-2063

WASHER - .625" x 1"

$

$

Not available

45

White Outdoor WD-195-520

WASHER - .312" x,875"

$

$

Not available

46

White Outdoor WD-C37200

BOLT - M6 - 1.0 x 12 mm flange

$

$

Not available

47

White Outdoor WD-113-203

BOLT - 3/8" - 16 x 3-1/2" mounting

$

$

Not available

WD-113-267

BOLT - 3/8" - 16 x 4" mounting

$

$

Not available

48

White Outdoor WD-192-21

LOCKWASHER - 3/8"
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

49

White Outdoor WD-129-103

NUT - 3/8" - 16
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 15

0

50

White Outdoor WD-900-8121

FITTING - 90° male to female

$

$

Not available
