FR-180 (135-013-190) - White Outdoor Front-Mount Riding Mower (1995) Pump Drive Cross Shaft Parts Diagram

Front-Mount Riding Mower

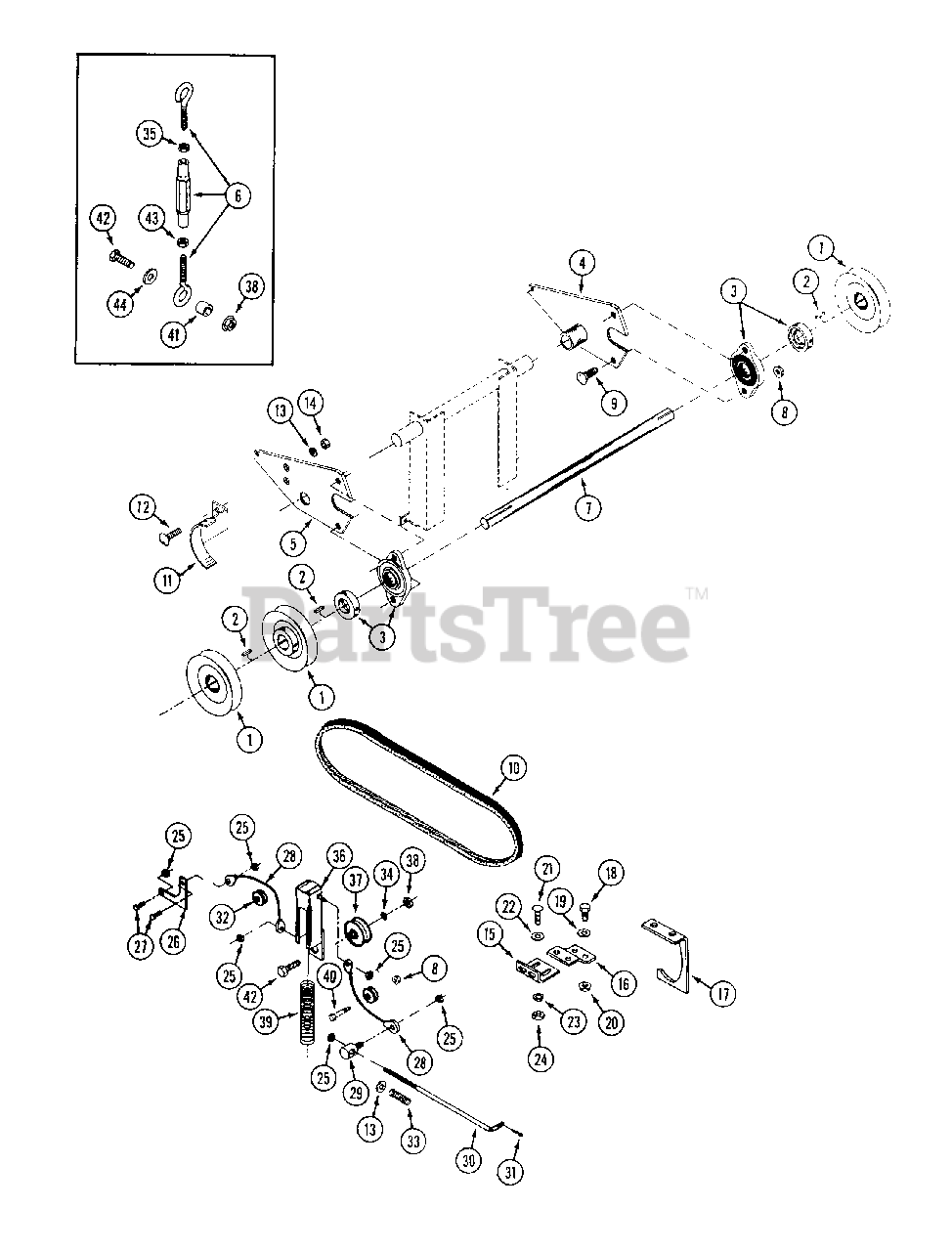

Pump Drive Cross Shaft Parts Diagram

  • Title

1

White Outdoor WD-900-2506

PULLEY - 4" O.D. x 3/4" ID
(Superseded to WD-C37770)

Note: (Use 83-55 set screw)

$

$

Not available

2

White Outdoor WD-900-7001

KEY - 3/16" x 3/16" x 1"
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0

3

White Outdoor WD-900-3516

BEARING - flanged

Note: (Includes locking collar)

$

$

Not available

4

White Outdoor WD-114-0006

MOUNT - bearing L.H.
(Superseded to WD-C37774)

$

$

Not available

5

White Outdoor WD-114-0007

MOUNT - bearing R.H.
(Superseded to WD-C37775)

$

$

Not available

6

White Outdoor WD-C45123

TURN BUCKLE

$

$

Not available

7

White Outdoor WD-C45474

SHAFT - cross
(Superseded to WD-C45777)

$

$

Not available

White Outdoor WD-114-0002

SHAFT - cross
(Superseded to WD-C45777)

$

$

Not available

8

White Outdoor WD-131-911

NUT - 5/16 - 18 flange lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor WD-111-203

BOLT - 5/16" - 18 x 1" carriage

$

$

Not available

10

White Outdoor WD-C24342

BELT - drive 36"

$

$

Not available

11

White Outdoor WD-C44336

RETAINER - cross shaft belt

$

$

Not available

12

White Outdoor WD-111-108

BOLT - 1/4" - 20 x 3/4" carriage

$

$

Not available

13

WD-192-19

LOCKWASHER - 1/4"

$

$

Not available

14

WD-129-101

NUT - 1/4" - 20

$

$

Not available

15

WD-114-0010

BRACKET - engine belt retainer

$

$

Not available

16

WD-C44328

BRACKET - engine belt

$

$

Not available

17

White Outdoor WD-114-0011

RETAINER - engine belt

$

$

Not available

18

White Outdoor WD-113-3

BOLT - 1/4" - 20 x 3/4"

$

$

Not available

19

White Outdoor WD-195-102

WASHER - 1/4"

$

$

Not available

20

White Outdoor WD-131-934

NUT - 1/4" - 20 flange lock

$

$

Not available

21

White Outdoor WD-111-203

BOLT - 5/16" - 20 x 1" carriage

$

$

Not available

22

White Outdoor WD-195-103

WASHER - 3/8"

$

$

Not available

23

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

24

White Outdoor WD-129-102

NUT - 5/16" - 18

$

$

Not available

25

White Outdoor WD-131-71

NUT - nylock 1/4" - 20

$

$

Not available

26

WD-114-0014

BRACKET - "L", brake linkage

$

$

Not available

27

WD-113-4

BOLT - 1/4" - 20 x 1"

$

$

Not available

28

WD-900-5824

CABLE - clutch, brake

$

$

Not available

29

White Outdoor WD-111-0014

COLLAR - caliper rod

$

$

Not available

30

White Outdoor WD-111-0007

ROD - caliper

$

$

Not available

31

WD-900-6175

PIN - cotter - 3/32" x 1"

$

$

Not available

32

White Outdoor WD-C38963

PULLEY - 1-1/2" O.D.

$

$

Not available

33

White Outdoor WD-900-5722

SPRING - caliper rod

$

$

Not available

34

White Outdoor WD-192-21

LOCKWASHER - 3/8"
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

35

White Outdoor WD-129-103

NUT - 3/8" - 16
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 20+

0

36

White Outdoor WD-C44329

TUBE - drive idler

$

$

Not available

37

White Outdoor WD-C15672

PULLEY - idler 2-1/4" O.D.

$

$

Not available

38

White Outdoor WD-131-938

NUT - 3/8" - 16 flange lock

$

$

Not available

39

White Outdoor WD-900-5580

SPRING - belt tightener

$

$

Not available

40

White Outdoor WD-113-110

BOLT - 5/16" - 18 x 2-1/4"

$

$

Not available

41

White Outdoor WD-C45146

SPACER

$

$

Not available

42

White Outdoor WD-113-209

BOLT - 3/8" - 16 x l-1/2"

$

$

Not available

43

White Outdoor WD-129-175

NUT - 3/8" - 16 L.H. threads

$

$

Not available

44

White Outdoor WD-195-2029

WASHER

$

$

Not available
