FR-180 (135-013-190) - White Outdoor Front-Mount Riding Mower (1995) Parking Brake Parts Diagram

Front-Mount Riding Mower

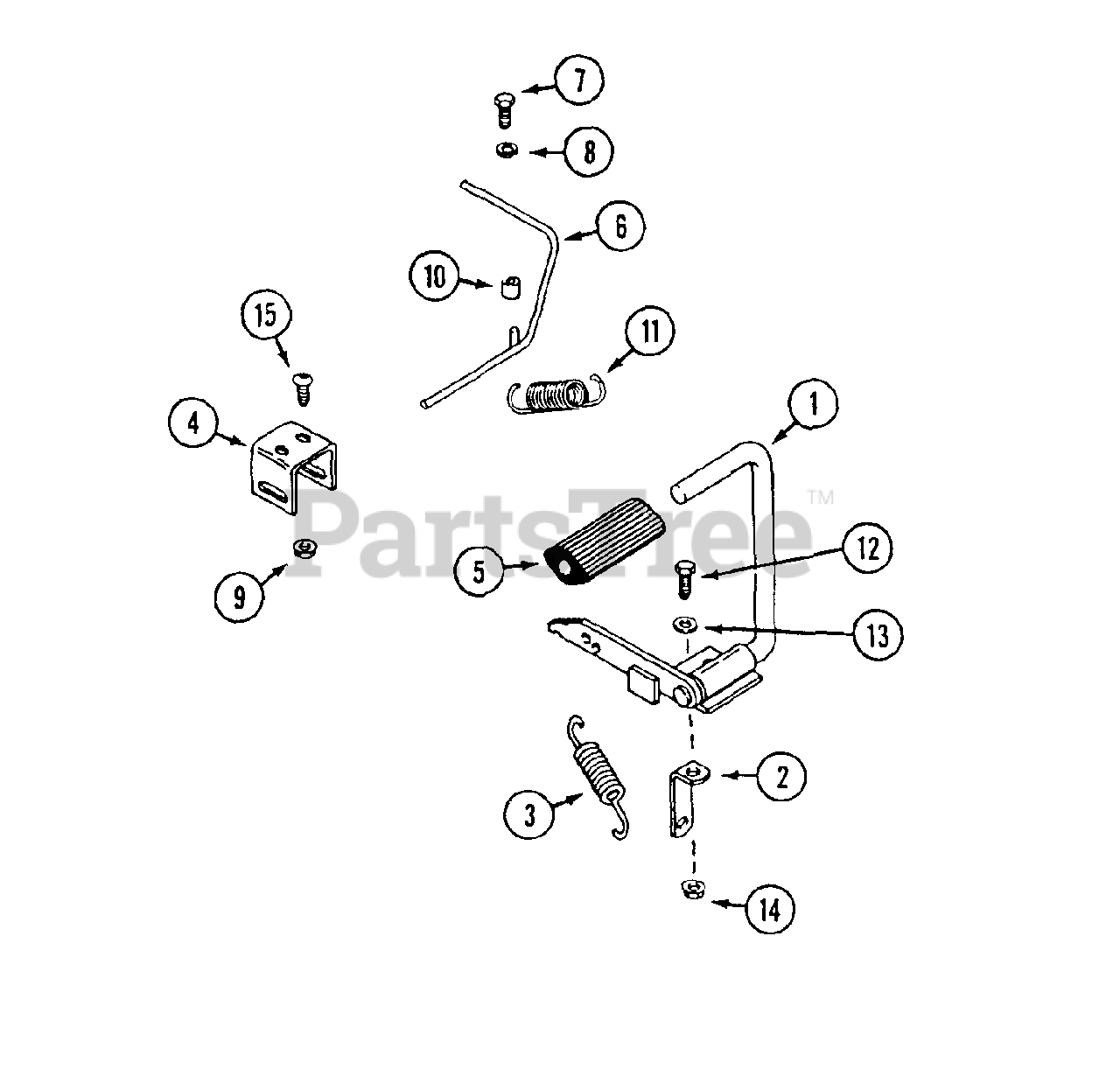

Parking Brake Parts Diagram

  • Title
1

White Outdoor WD-C44420

PEDAL - parking brake

$

$

Not available

2

WD-C44424

TAB - spring mount

$

$

Not available

3

White Outdoor WD-900-5569

SPRING - brake return

$

$

Not available

4

WD-C44425

BRACKET - brack lock

$

$

Not available

5

White Outdoor WD-900-5563

PAD - brake pedal
(Superseded to 735-0239A)

$12.99

$

Usually ships in 3-6 days

0

6

WD-C44969

LEVER - brake lock

$

$

Not available

7

White Outdoor WD-C42056

SCREW - 5/16" - 18 x 5/8" allen head

$

$

Not available

8

WD-900-6151

LOCKWASHER - 5/16"

$

$

Not available

9

White Outdoor WD-131-934

NUT - 1/4" - 20 flange lock

$

$

Not available

10

$

$

Not available

11

White Outdoor WD-900-5562

SPRING - return, lock lever

$

$

Not available

12

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

13

White Outdoor WD-195-103

WASHER - 5/16"

$

$

Not available

14

White Outdoor WD-131-911

NUT - 5/16" - 18 flange lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

15

WD-C44981

SCREW - 1/4" - 20 x 1/2" allen head

$

$

Not available
