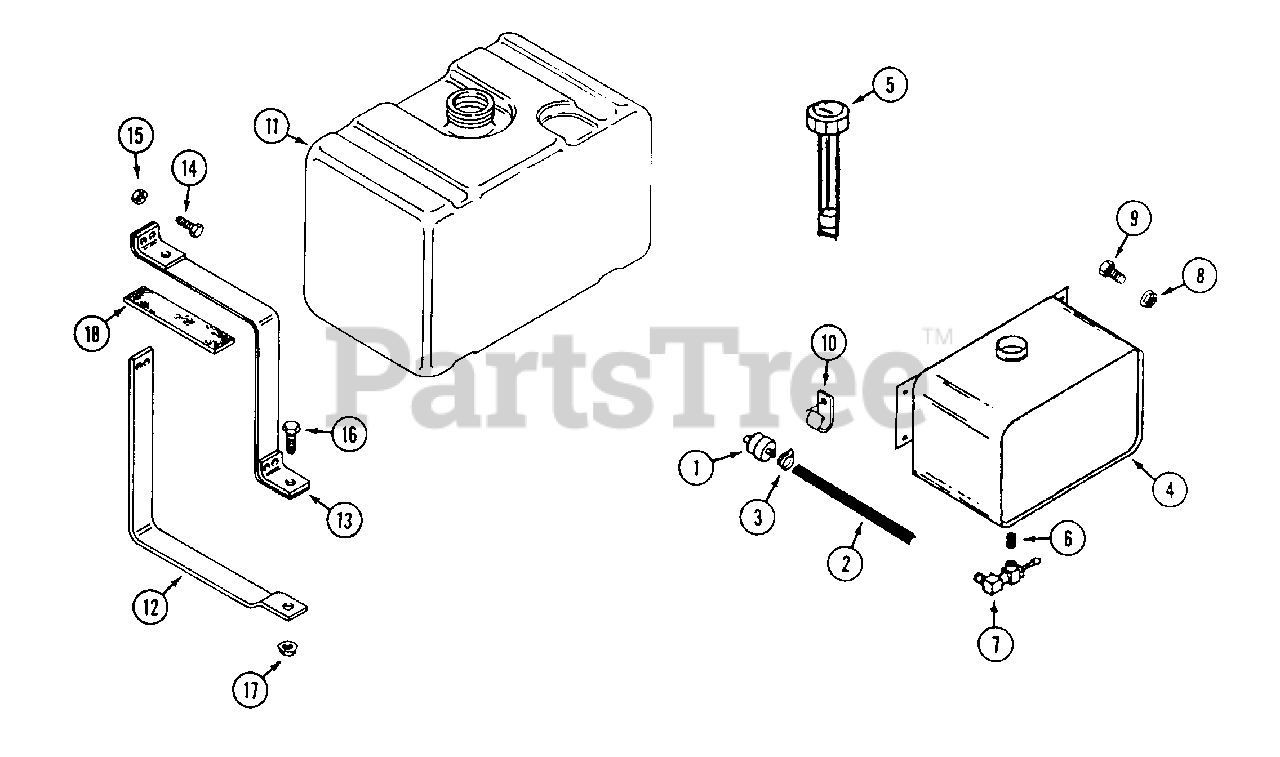

FR-180 (134-013-190) - White Outdoor Front-Mount Riding Mower (1994) Fuel System Parts Diagram

Front-Mount Riding Mower

Fuel System Parts Diagram

  • Title

1

White Outdoor WD-900-5514

FILTER - fuel
(Superseded to BS-298090S)

$

$

Not available

2

WD-C44027

HOSE - fuel (cut to length)

$

$

Not available

3

White Outdoor WD-214-103

CLAMP - hose

$

$

Not available

4

~NSS

TANK- fuel (1-3/4" filler tube) metal

Note: (Use C45119, C44822)

$

$

Not available

White Outdoor WD-C45119

TANK - fuel (2-1/4" filler tube) metal

$

$

Not available

5

White Outdoor WD-C44290

CAP - fuel tank (with gauge) (1-3/4" threads)

$

$

Not available

White Outdoor WD-C44822

CAP - fuel tank (with gauge) (2-1/4" threads)

Note: Use on metal tank

$

$

Not available

White Outdoor WD-C45334

CAP - fuel tank (with gauge) (2-1/4" threads)

Note: Use on plastic tank

$

$

Not available

6

White Outdoor WD-221-1101

NIPPLE - pipe 1/8"

$

$

Not available

7

White Outdoor WD-900-5513

VALVE - shut off

$

$

Not available

8

White Outdoor WD-131-934

NUT - 1/4" - 20 flange lock

$

$

Not available

9

WD-113-1

BOLT - 1/4" - 20 x 1/2"

$

$

Not available

9

White Outdoor WD-113-3

BOLT - 1/4" - 20 x 3/4"

$

$

Not available

10

WD-C32455

CLIP - "J" fuel line

$

$

Not available

11

White Outdoor WD-C45333

TANK - fuel (2-1/4" filler tube) (plastic)

$

$

Not available

11

~NSS

TANK - fuel (1-3/4" filler tube) (plastic)

Note: (Use C45333, C45334)

$

$

Not available

12

WD-C45061

BRACKET - fuel tank

$

$

Not available

13

WD-C45062

STRAP - fuel tank

$

$

Not available

14

WD-113-17

BOLT 1/4" - 20 x 1-1/2"

$

$

Not available

15

White Outdoor WD-131-71

NUT 1/4" - 20 lock

$

$

Not available

16

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

17

White Outdoor WD-131-911

NUT - 5/16" - 18 flange lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor WD-C34189

CUSHION

$

$

Not available
