FR-18 - White Outdoor Front-Mount Riding Mower (1985) 42-Inch Mower Deck (FR-18 Only) Parts Diagram

Front-Mount Riding Mower

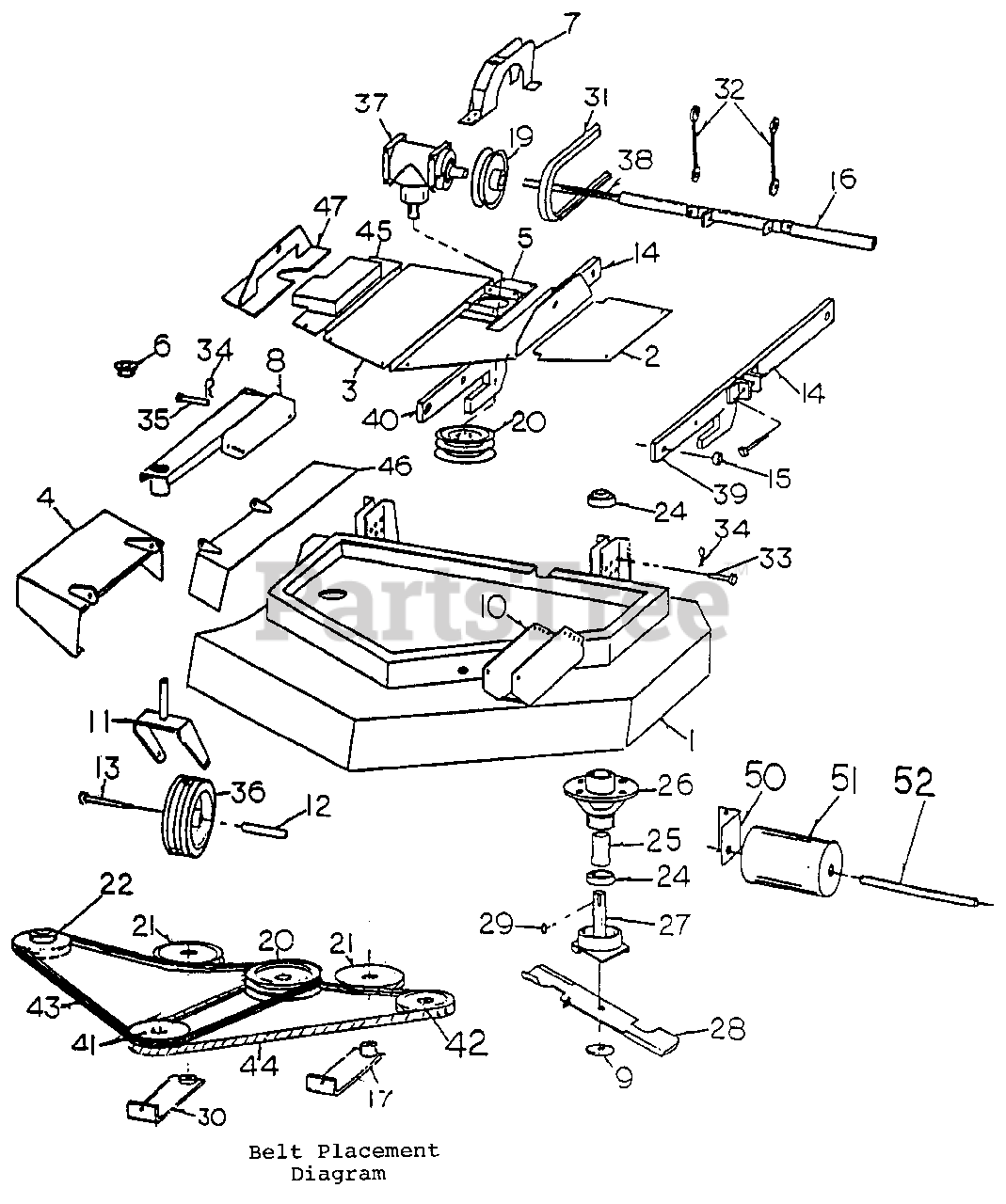

42-Inch Mower Deck (FR-18 Only) Parts Diagram

  • Title

1

MTD WD-310-0000

MOWER DECK

Note: NLA

$

$

Currently unavailable

2

MTD WD-300-0001

COVER (Small)

Note: NLA

$

$

Not available

3

MTD WD-310-0003

COVER (Large)

Note: NLA

$

$

Not available

4

MTD WD-320-0003

FOOT GUARD

Note: NLA

$

$

Not available

5

MTD WD-311-0001

GEAR BOX MOUNT

Note: NLA

$

$

Not available

6

MTD WD-900-3507

GAGE WHEEL BUSHING

Note: NLA

$

$

Not available

7

MTD WD-311-0002

BELT GUARD

Note: NLA

$

$

Not available

8

MTD WD-300-0007

GAGE WHEEL MOUNT

Note: NLA

$

$

Not available

9

MTD WD-900-5534

SPRING WASHER

Note: NLA

$

$

Not available

10

MTD WD-300-0009

BRACKET, GAGE WHEEL MOUNT

Note: NLA

$

$

Not available

11

MTD WD-300-0010

FORK, GAGE WHEEL

Note: NLA

$

$

Not available

12

MTD WD-300-0011

AXLE, GAGE WHEEL

Note: NLA

$

$

Not available

13

GAGE WHEEL BOLT

$

$

Not available

14

MTD WD-301-0024

DECK LIFT ARM BACK ADJUSTABLE

Note: NLA

$

$

Currently unavailable

15

MTD WD-C37586

BUSHING, DECK LIFT ARM

$

$

Not available

16

MTD WD-300-0014

CROSSBAR

Note: NLA

$

$

Not available

17

MTD WD-300-0029

BELT TIGHTENER

Note: NLA

$

$

Not available

17

MTD WD-C37937

SPACER, IDLER

$

$

Not available

19

MTD WD-900-2514

PULLEY, GEAR BOX(Input)

Note: NLA

$

$

Currently unavailable

20

MTD WD-900-2515

PULLEY, GEAR BOX(Output)

Note: NLA

$

$

Not available

21

MTD WD-900-2518

PULLEY, IDLR

Note: NLA

$

$

Not available

22

MTD WD-C37887

PULLEY, SPINDLE

$

$

Not available

22

MTD WD-C37900

WASHER SPINDLE

$

$

Not available

24

MTD WD-C42786P

BEARING SPINDLE

$88.99

$

In Stock, only 1 left!

0

25

MTD WD-300-0027

SPACER SPINDLE

Note: NLA

$

$

Not available

26

MTD WD-300-0025

HOUSING SPINDLE

Note: NLA

$

$

Not available

27

MTD WD-C37883

SHAFT SPINDLE

$

$

Not available

28

MTD WD-C38036

BLADE

$

$

Not available

29

MTD 914-0105

KEY SPINDLE

$3.99

$

Usually ships in 3-6 days

0

30

MTD WD-300-0030

BELT TIGHTENER

Note: NLA

$

$

Not available

31

MTD WD-C37894

BELT, DRIVE

$

$

Not available

32

MTD WD-C37816

CABLE, DECK

$

$

Not available

33

MTD WD-900-5519

PINS, DECK

Note: NLA

$

$

Not available

34

MTD WD-900-5520

HAIR PIN

Note: NLA

$

$

Not available

35

MTD WD-900-5521

PINS, GAGE WHEEL

Note: NLA

$

$

Currently unavailable

36

MTD WD-900-4007

GAGE WHEEL

Note: NLA

$

$

Not available

37

MTD WD-900-5535

GEAR BOX

Note: NLA

$

$

Not available

38

MTD WD-300-0022

CROSS BAR PIN

Note: NLA

$

$

Currently unavailable

39

MTD WD-300-0023

L.H 1 DECK LIFT ARM FRONT ADJUSTABLEW L.H.

Note: NLA

$

$

Currently unavailable

40

MTD WD-300-0023

R.H. 1 DECK LIFT ARM FRONT ADJUSTABLE R.H.

Note: NLA

$

$

Currently unavailable

41

MTD WD-C37889

PULLEY, DOUBLE A

$

$

Not available

42

MTD WD-900-2517

PULLEY, LEFT SIDE SPINDLE

Note: NLA

$

$

Currently unavailable

43

MTD WD-C37896

BELT, DECK LONG

$

$

Not available

44

MTD WD-C37897

BELT, DECK SHORT

$

$

Not available

45

MTD WD-310-0002

SMALL COVER

Note: NLA

$

$

Not available

46

MTD WD-320-0010

FOOT GUARD MOUNT

Note: NLA

$

$

Not available

47

MTD WD-310-0004

DECK MOUNT

Note: NLA

$

$

Currently unavailable

50

MTD WD-300-0037

ROLLAR BRACKET

Note: NLA

$

$

Currently unavailable

51

MTD WD-900-5559

RUBBER ROLLAR

Note: NLA

$

$

Not available

52

MTD WD-300-0038

SHAFT, ROLLAR

Note: NLA

$

$

Not available
