FR-18 C - White Outdoor Front-Mount Riding Mower (1985) 52-Inch Mower Deck Assembly Parts Diagram

Front-Mount Riding Mower

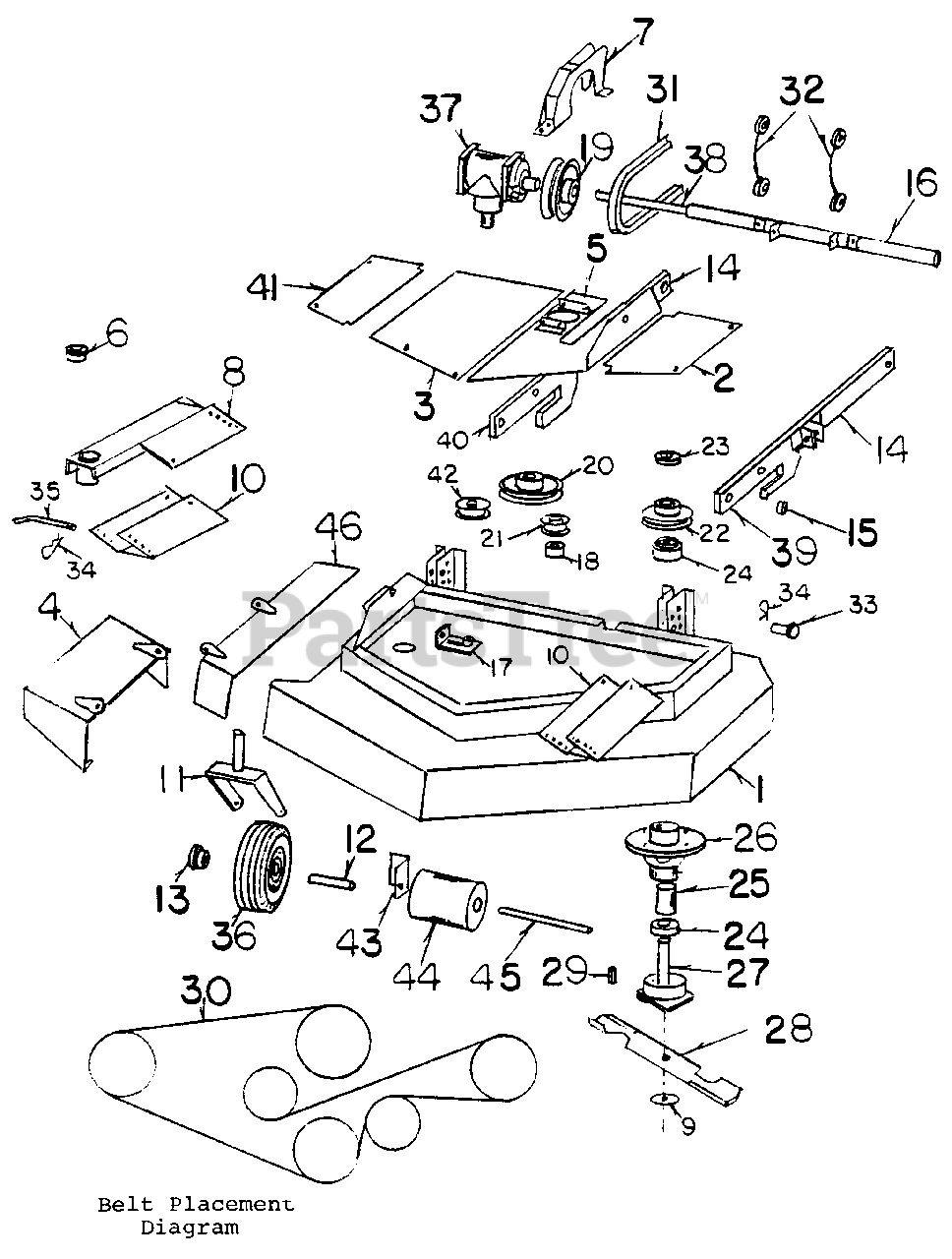

52-Inch Mower Deck Assembly Parts Diagram

  • Title

1

MTD WD-320-0000

MOWER DECK

Note: NLA

$

$

Not available

2

MTD WD-320-0001

COVER (Small)

Note: NLA

$

$

Not available

3

MTD WD-320-0002

COVER (Large)

Note: NLA

$

$

Not available

4

MTD WD-320-0003

FOOT GUARD

Note: NLA

$

$

Not available

5

MTD WD-321-0001

GEAR BOX MOUNT

Note: NLA

$

$

Not available

6

MTD 941-3002

GAGE WHEEL MOUNT

$35.99

$

In Stock, Qty 15

0

7

MTD WD-311-0002

BELT GUARD

Note: NLA

$

$

Not available

8

MTD WD-330-0005

GAGE WHEEL MOUNT

Note: NLA

$

$

Not available

9

MTD WD-900-5534

SPRING WASHER

Note: NLA

$

$

Not available

10

MTD WD-320-0006

BRACKET, GAGE WHEEL MOUNT

Note: NLA

$

$

Not available

11

MTD WD-330-0007

FORK, GAGE WHEEL

Note: NLA

$

$

Not available

12

MTD WD-C37915

AXLE, GAGE WHEEL

$

$

Not available

13

MTD WD-C44499P

WHEEL BEARING

$

$

Not available

14

MTD WD-301-0024

DECK LIFT ARM BACK ADJUSTABLE FR18

Note: NLA

$

$

Currently unavailable

14

MTD WD-330-0024

DECK LIFT ARM BACK ADJUSTABLE FR18C

Note: NLA

$

$

Currently unavailable

15

MTD WD-C37586

BUSHING, DECK LIFT ARM

$

$

Not available

16

MTD WD-300-0014

CROSSBAR

Note: NLA

$

$

Not available

17

MTD WD-330-0012

BELT TIGHTENER

Note: NLA

$

$

Not available

18

MTD WD-C37937

SPACER IDLER

$

$

Not available

19

MTD WD-C37892

PULLEY, GEAR BOX (Input)

$

$

Not available

20

MTD WD-900-2510

PULLEY, GEAR BOX (Output)

Note: NLA

$

$

Not available

21

MTD WD-C45655

PULLEY, IDLER (Small)

$

$

Not available

22

MTD WD-C37931

PULLEY, SPINDLE

$

$

Not available

23

MTD WD-C37900

WASHER, SPINDLE

$

$

Not available

24

MTD WD-C42786P

BEARING, SPINDLE

$88.99

$

In Stock, only 1 left!

0

25

MTD WD-300-0027

SPACER, SPINDLE

Note: NLA

$

$

Not available

26

MTD WD-300-0025

HOUSING, SPINDLE

Note: NLA

$

$

Not available

27

MTD WD-C37883

SHAFT, SPINDLE

$

$

Not available

28

MTD WD-C38042

BLADE

$

$

Not available

29

MTD 914-0105

KEY, SPINDLE

$3.99

$

Usually ships in 3-6 days

0

30

MTD WD-C37935

DECK BELT

$

$

Not available

31

MTD WD-C37894

DRIVE BELT FR18

$

$

Not available

31

MTD WD-900-3012

DRIVE BELT FR18C

Note: NLA

$

$

Not available

32

MTD WD-C37816

CABLE, DECK

$

$

Not available

33

MTD WD-900-5519

PINS, DECK

Note: NLA

$

$

Not available

34

MTD WD-900-5520

HAIR PINS

Note: NLA

$

$

Not available

35

MTD WD-900-5536

PINS, GAGE WHEEL

Note: NLA

$

$

Not available

36

MTD WD-900-4004

GAGE WHEEL

Note: NLA

$

$

Not available

37

MTD WD-900-5535

GEAR BOX

Note: NLA

$

$

Not available

38

MTD WD-300-0022

CROSSBAR PIN

Note: NLA

$

$

Currently unavailable

39

MTD WD-300-0023

L.H. 1 DECK LIFT ARM FRONT ADJUSTABLE

Note: NLA

$

$

Currently unavailable

40

MTD WD-300-0023B

R.H. 1 DECK LIFT ARM FRONT ADJUSTABLE

Note: NLA

$

$

Currently unavailable

41

MTD WD-320-0009

COVER, RIGHT HAND SIDE

Note: NLA

$

$

Currently unavailable

42

MTD WD-C37933

PULLEY, IDLER (Large)

$104.99

$

Usually ships in 3-6 days

0

43

MTD WD-300-0037

RUBBER ROLLAR

Note: NLA

$

$

Currently unavailable

44

MTD WD-900-5559

RUBBER ROLLAR

Note: NLA

$

$

Not available

45

MTD WD-300-0038

ROLLAR SHAFT

Note: NLA

$

$

Not available

46

MTD WD-320-0010

FOOT GUARD MOUNT

Note: NLA

$

$

Not available
