FR-18 (136-008-190) - White Outdoor Front-Mount Riding Mower (1996) Mower Deck And Attaching Parts (62") Parts Diagram

Front-Mount Riding Mower

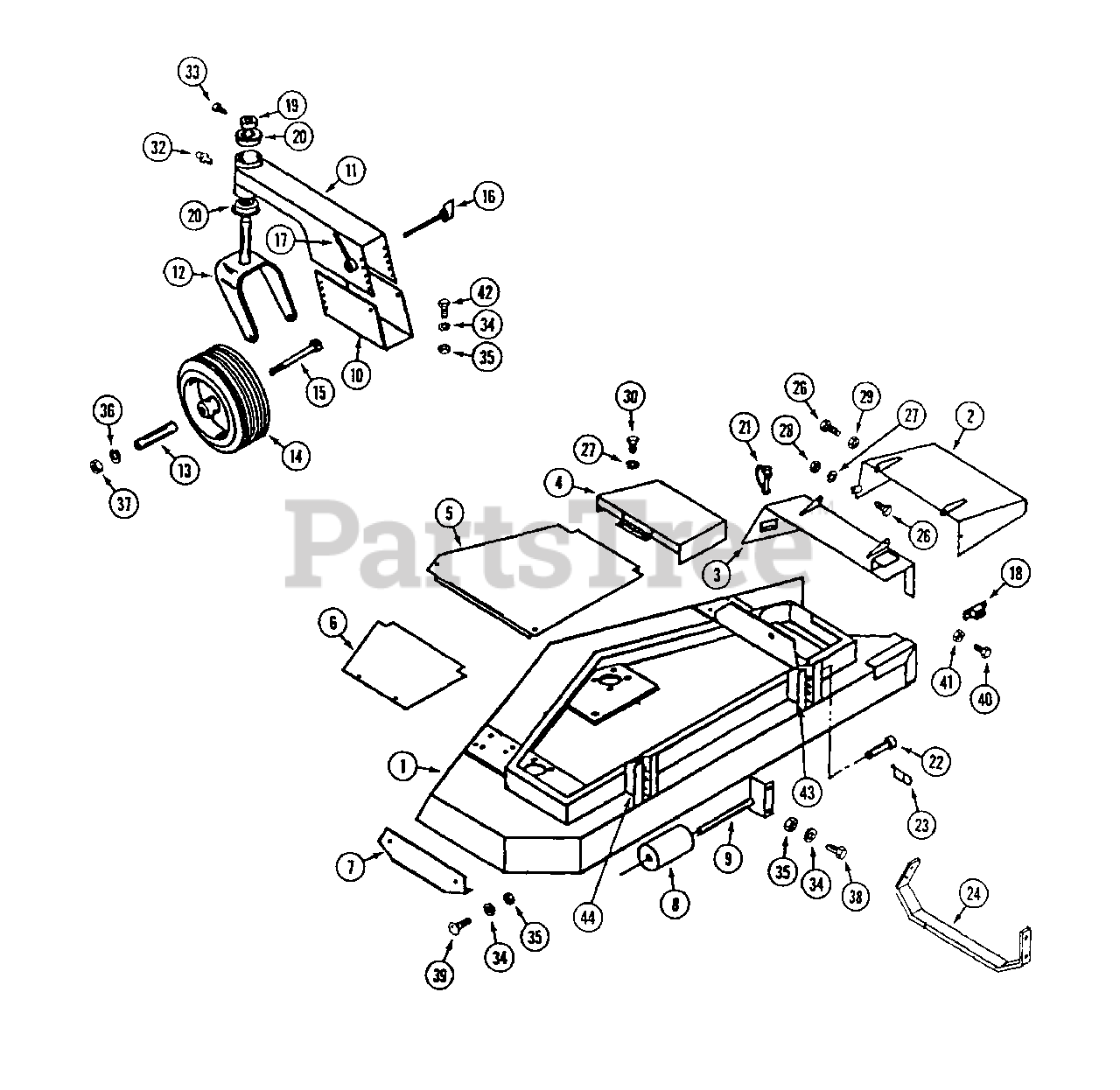

Mower Deck And Attaching Parts (62") Parts Diagram

  • Title
1

White Outdoor WD-C44088

DECK 62"
(Superseded to WD-CS48614)

$

$

Not available

2

White Outdoor WD-C41396

CHUTE - foot guard

$

$

Not available

3

White Outdoor WD-C41400

MOUNT - foot guard

$

$

Not available

4

White Outdoor WD-C41392

COVER - pulley

$

$

Not available

5

White Outdoor WD-C41378

COVER - center

$

$

Not available

6

WD-C41371

COVER - L.H.

$

$

Not available

7

$

$

Not available

8

White Outdoor WD-C37910

ROLLER - anti-scalp

$

$

Not available

9

White Outdoor WD-C37911

SHAFT - roller

$

$

Not available

10

White Outdoor WD-C37912

BRACKET - gauge wheel mount

$

$

Not available

11

White Outdoor WD-C37913

MOUNT - gauge wheel

$

$

Not available

$

$

Not available

13

$

$

Not available

14

White Outdoor WD-C37916

WHEEL - gauge

$

$

Not available

White Outdoor WD-C37917

TIRE - 11 x 4.00 - 5

$

$

Not available

$

$

Not available

White Outdoor WD-C44499

BEARING - wheel

$

$

Not available

15

White Outdoor WD-113-2419

BOLT - 1/2" - 13 x 6-1/2"

$

$

Not available

16

$

$

Not available

17

White Outdoor WD-C37921

NUT - gauge wheel handle

$

$

Not available

18

White Outdoor WD-C37505

BREAKER - circuit, 10 amp

$

$

Not available

19

$

$

Not available

20

$

$

Not available

21

White Outdoor WD-C37922

PIN - "fas-tatch"

$

$

Not available

22

$

$

Not available

23

White Outdoor WD-C29029

PIN - cotter, hair

$

$

Not available

24

WD-C37967

SHOE - skid R.H.

$

$

Not available

26

White Outdoor WD-113-3

BOLT - 1/4" - 20 x 3/4"

$

$

Not available

27

WD-192-19

LOCKWASHER - 1/4"

$

$

Not available

28

WD-129-101

NUT - 1/4" - 20

$

$

Not available

29

White Outdoor WD-131-71

NUT - 1/4" - 20 lock

$

$

Not available

30

WD-113-1

BOLT - 1/4" - 20 x 1"

$

$

Not available

32

White Outdoor WD-C37993

FITTING - grease

$

$

Not available

33

White Outdoor WD-C37756

SCREW - set 5/16" - 18 x 1/2" square head

$

$

Not available

34

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

35

White Outdoor WD-129-102

NUT - 5/16" - 18

$

$

Not available

36

White Outdoor WD-192-23

LOCKWASHER - 1/2"

$

$

Not available

37

White Outdoor WD-129-105

NUT - 1/2" - 1 3
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor WD-113-102

BOLT - 5/16" - 18 x 3/4"

$

$

Not available

39

White Outdoor WD-111-202

BOLT - 5/16" - 18 x 3/4" carriage

$

$

Not available

40

WD-182-528

SCREW - #10 - 32 x 1/2"

$

$

Not available

41

White Outdoor WD-193-1000

NUT - #10 - 32

$

$

Not available

42

White Outdoor WD-111-203

BOLT - 5/16" - 18 x 1" carriage

$

$

Not available

43

WD-C39221

BRACKET - height adjust R.H.

$

$

Not available

44

WD-C39222

BRACKET - height adjust L.H.

$

$

Not available
