FR-18 (136-008-190) - White Outdoor Front-Mount Riding Mower (1996) Electrical System Parts Diagram

Front-Mount Riding Mower

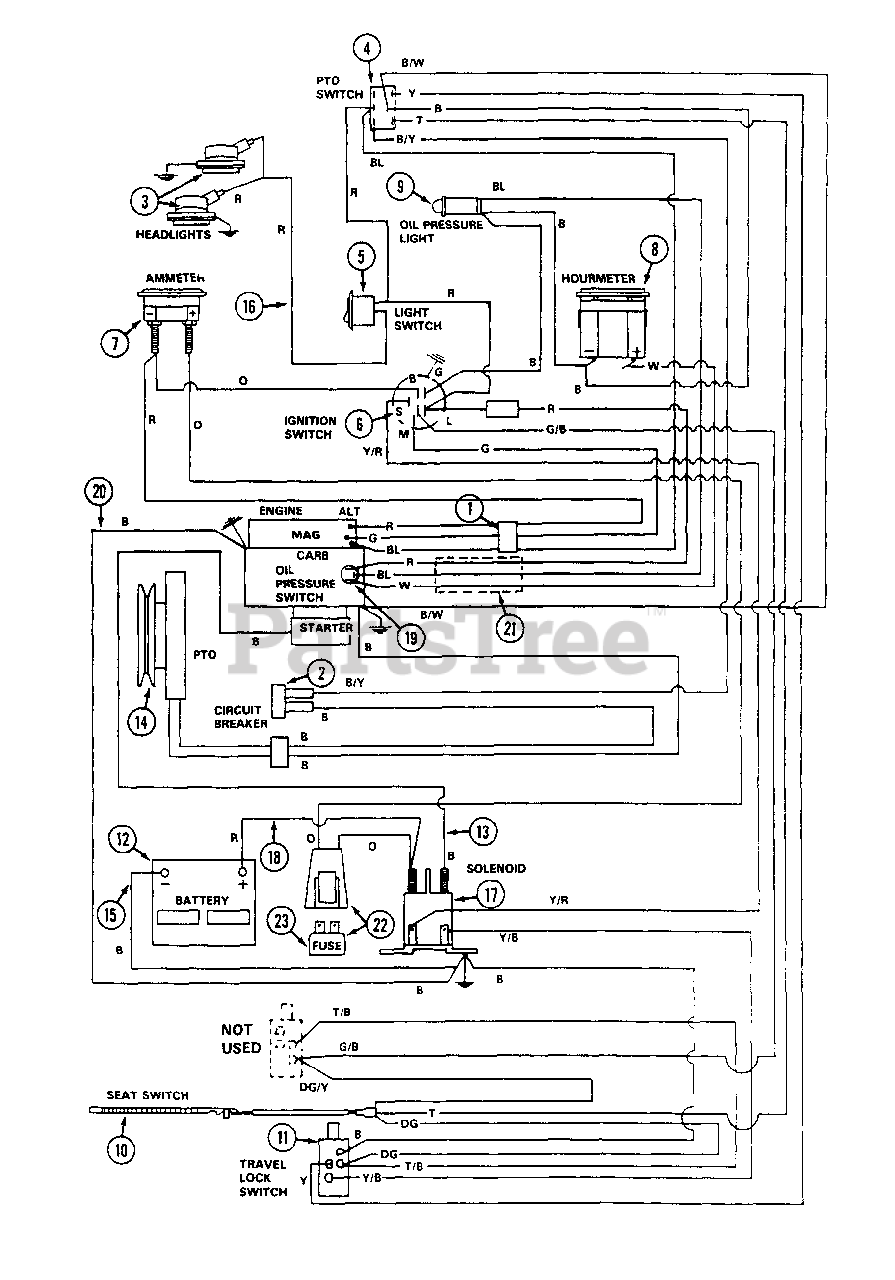

Electrical System Parts Diagram

  • Title

White Outdoor WD-C45535

HARNESS - wire, main

$

$

Not available

1

White Outdoor WD-C45539

HARNESS - wire, alternator and magneto

$

$

Not available

2

White Outdoor WD-C37505

BREAKER - circuit, 10 amp

$

$

Not available

3

White Outdoor WD-C32178

HEADLIGHT

$

$

Not available

White Outdoor WD-C22573

LENS - headlight
(Superseded to WD-C32178)

$

$

Not available

White Outdoor WD-C37508

BULB - headlight
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

White Outdoor WD-C37509

RECEPTICAL

$

$

Not available

White Outdoor WD-C14304

GASKET - headlight

$

$

Not available

4

White Outdoor WD-C31937

SWITCH - PTO

Note: (Also use C31619 Cap)

$

$

Not available

White Outdoor WD-C44469

NUT - 1/2" - 27 PTO switch retaining

$

$

Not available

5

White Outdoor WD-C43044

SWITCH - headlight

$

$

Not available

6

White Outdoor WD-C30267

SWITCH - ignition

$

$

Not available

White Outdoor WD-C32407

KEY - ignition

$

$

Not available

WD-C32397

CAP - nut, ignition switch

$

$

Not available

WD-193-63

LOCKWASHER - 5/8

$

$

Not available

WD-C32396

NUT - 5/8" - 32 ignition switch

$

$

Not available

7

White Outdoor WD-C29413

AMMETER

$

$

Not available

8

WD-C42929

METER - hour

$

$

Not available

9

White Outdoor WD-C45536

LIGHT - oil

$

$

Not available

10

White Outdoor WD-C45537

SWITCH - seat

$

$

Not available

11

White Outdoor WD-C37521

SWITCH - safety

$

$

Not available

WD-182-526

SCREW - #10 - 32 x 3/8"

Note: (safety switch mount)

$

$

Not available

WD-192-18

LOCKWASHER - 3/16"

Note: (safety switch mount)

$

$

Not available

White Outdoor WD-193-1000

NUT - #10 - 32 lock

Note: (safety switch mount)

$

$

Not available

WD-182-528

SCREW - #10 - 32 x 1/2"

Note: (safety switch mount)

$

$

Not available

12

White Outdoor WD-C41010

BATTERY - 12 volt

$

$

Not available

13

White Outdoor WD-C44261

WIRE - starter

$

$

Not available

14

White Outdoor WD-C37511

CLUTCH PTO

$

$

Not available

15

White Outdoor WD-C37528

CABLE - ground

$

$

Not available

16

WD-C44075

WIRE - headlight

$

$

Not available

17

White Outdoor WD-C33024

SOLENOID - start
(Superseded to WD-C33024P)

$

$

Not available

White Outdoor WD-113-3

BOLT - 1/4" - 20 x 3/4"

Note: (solenoid mounting)

$

$

Not available

White Outdoor WD-131-934

NUT - 1/4" - 20

Note: (solenoid mounting)

$

$

Not available

WD-192-19

LOCKWASHER - 1/4"

Note: (solenoid studs)

$

$

Not available

WD-129-101

NUT - 1/4" - 20

Note: (solenoid studs)

$

$

Not available

18

White Outdoor WD-C37523

CABLE - battery positive to solenoid

$

$

Not available

19

White Outdoor WD-C37531

SWITCH - oil light
(Superseded to WD-C37531P)

$

$

Not available

20

White Outdoor WD-C41643

WIRE - ground

$

$

Not available

21

WD-C42240

HARNESS - oil pressure switch

$

$

Not available

22

WD-C31947

KIT - fuse holder

$

$

Not available

23

White Outdoor WD-C30260

FUSE - 30 amp

$

$

Not available
