FR-18 (136-008-190) - White Outdoor Front-Mount Riding Mower (1996) Electric Clutch (PTO) Parts Diagram

Front-Mount Riding Mower

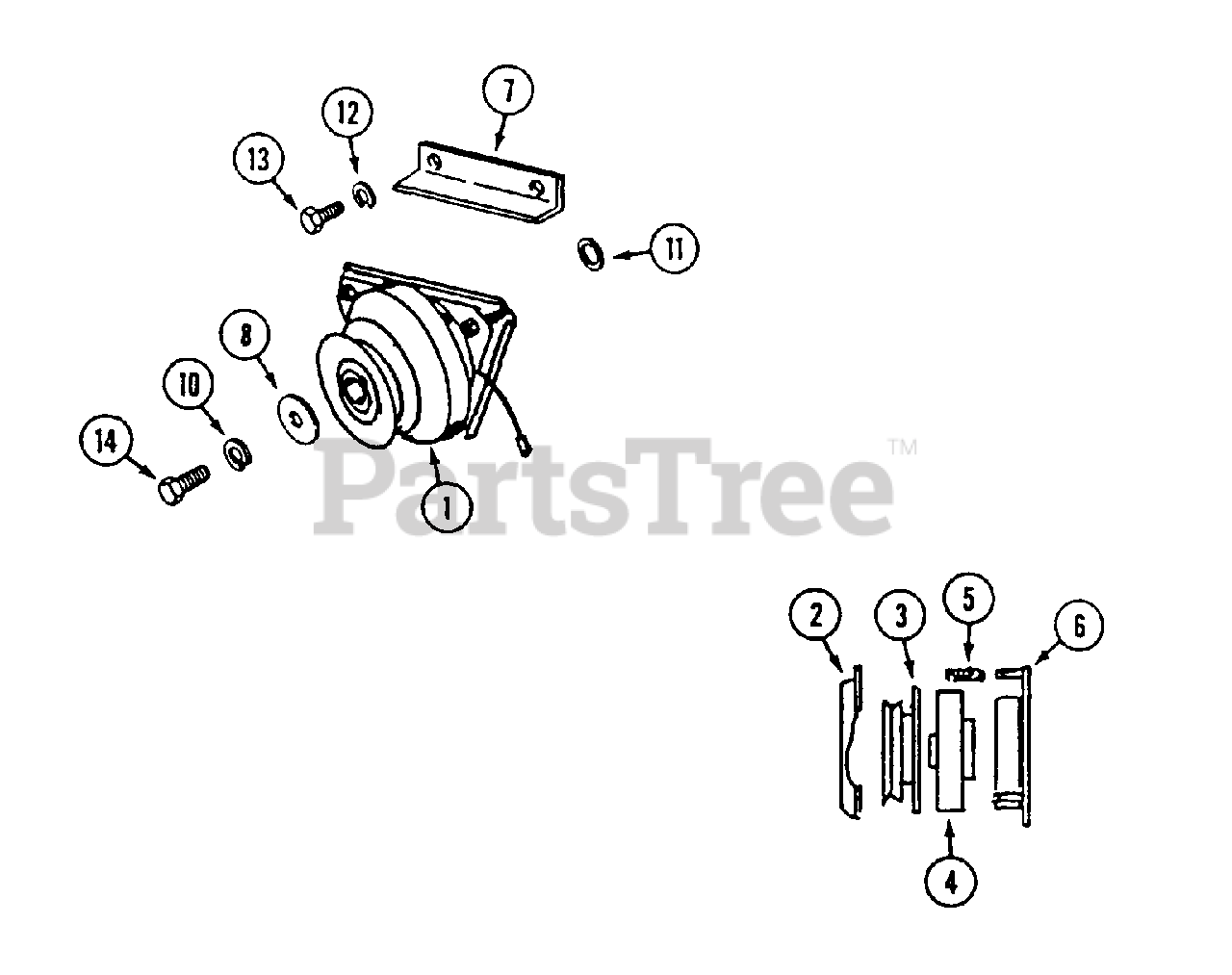

Electric Clutch (PTO) Parts Diagram

  • Title
1

White Outdoor WD-C37511

CLUTCH ASSEMBLY

$

$

Not available

2

White Outdoor WD-C37549

BRAKE - clutch

$

$

Not available

3

White Outdoor WD-C37550

ARMATURE - clutch

$

$

Not available

4

White Outdoor WD-C37551

ROTOR - clutch

$

$

Not available

5

White Outdoor WD-C37552

KIT - spring and nut (3 each)

$

$

Not available

6

White Outdoor WD-C37553

COIL - clutch
(Superseded to 759-3541)

$

$

Not available

7

White Outdoor WD-C37562

BRACKET - clutch stop

$

$

Not available

8

White Outdoor WD-C31615

WASHER - retaining

$

$

Not available

10

White Outdoor WD-192-21

LOCKWASHER - 3/8"
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor WD-C31614

WASHER - 1-1/8"

$

$

Not available

12

WD-192-22

LOCKWASHER - 7/16"

$

$

Not available

13

WD-113-335

BOLT - 7/16" - 14 x 3/4"

$

$

Not available

14

White Outdoor WD-114-201

BOLT - 3/8" - 24 x 1-1/4"

$

$

Not available
