FR-18 (136-008-190) - White Outdoor Front-Mount Riding Mower (1996) Dual Tail Wheel Parts Diagram

Front-Mount Riding Mower

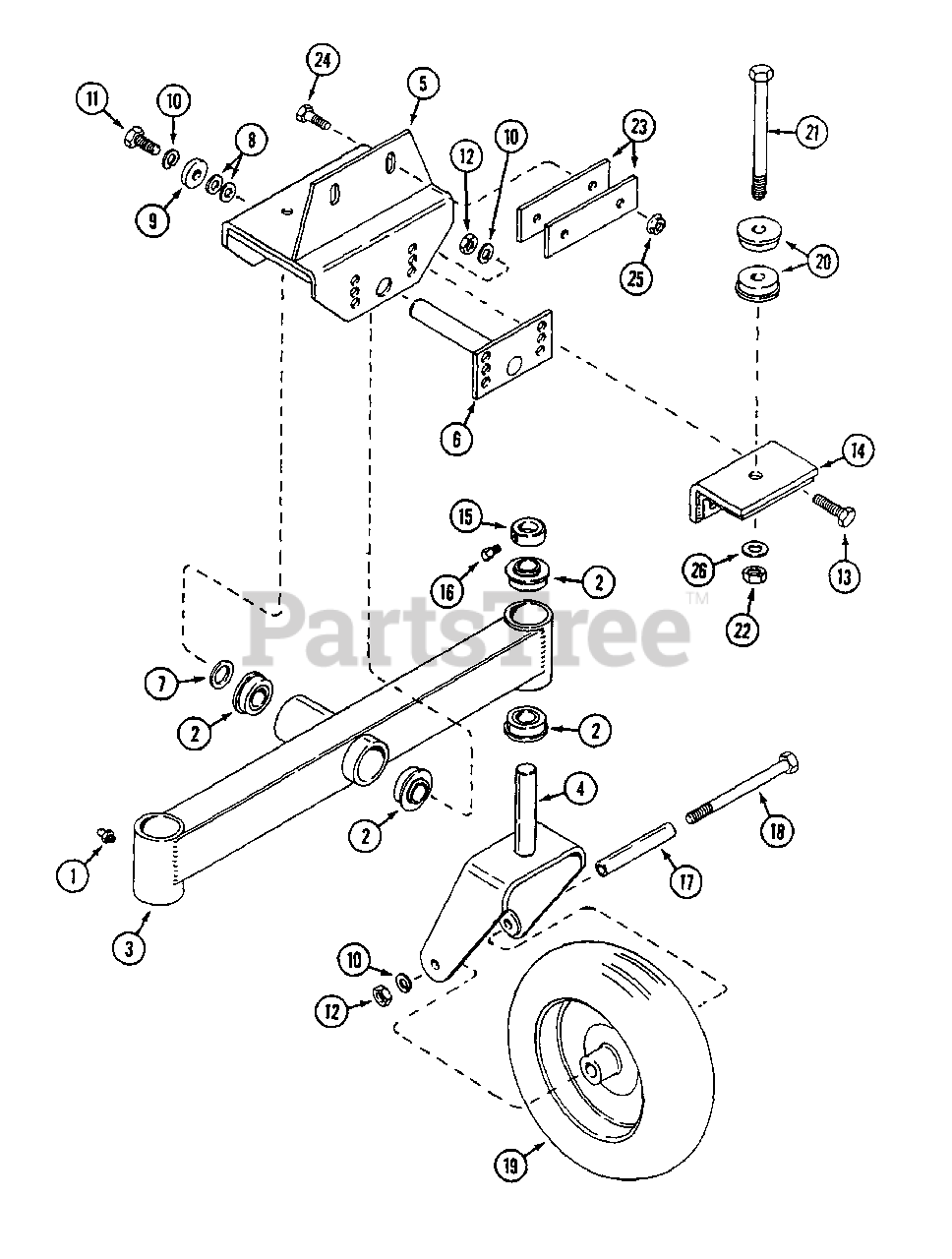

Dual Tail Wheel Parts Diagram

  • Title

1

White Outdoor WD-219-20

FITTING - lubrication 1/4" - 28

$

$

Not available

2

White Outdoor WD-C37824

BEARING - ball 1"

$

$

Not available

3

WD-C45610

AXLE - dual wheel

$

$

Not available

4

White Outdoor WD-C45645

FORK - wheel

$

$

Not available

5

White Outdoor WD-C45618

MOUNT - axle

$

$

Not available

6

WD-C45689

ROD - axle pivot

$

$

Not available

7

WD-C14919

WASHER - 1" x 1-3/4"

$

$

Not available

8

WD-C37004

WASHER - 1/2" x 1"

$

$

Not available

9

WD-C45841

WASHER - 1/2" x 1-3/8"

$

$

Not available

10

White Outdoor WD-192-23

LOCKWASHER - 1/2"

$

$

Not available

11

UNKNOWN

$

$

Not available

12

White Outdoor WD-129-105

NUT - 1/2" - 13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor WD-113-412

BOLT - 1/2" - 13 x 1-3/4"

$

$

Not available

14

White Outdoor WD-C45708

MOUNT - axle, front extension

$

$

Not available

15

White Outdoor WD-C37860

COLLAR - set 1"

$

$

Not available

16

White Outdoor WD-85-58

SCREW - set 5/16" - 18 x 1/2" square head

$

$

Not available

17

White Outdoor WD-C37915

TUBE - axle

$

$

Not available

18

White Outdoor WD-113-448

BOLT - 1/2" - 13 x 7"

$

$

Not available

19

White Outdoor WD-C37869

WHEEL ASSEMBLY

$

$

Not available

White Outdoor WD-C37872

BEARING - wheel

$

$

Not available

WD-C37870

TIRE - 13 x 5.00 - 6

$

$

Not available

WD-C37871

RIM

$

$

Not available

20

White Outdoor WD-C45711

BUSHING - tail wheel hub

$

$

Not available

21

White Outdoor WD-113-646

BOLT - 5/8" - 11 x 7-1/2"

$

$

Not available

21

WD-713-2606

BOLT - 5/8" - 11 x 11"

$

$

Not available

22

White Outdoor WD-131-356

NUT - 5/8" - 11

$

$

Not available

23

White Outdoor WD-C45746

PLATE - stiffener

$

$

Not available

24

White Outdoor WD-113-208

BOLT - 3/8" - 16 x 1-1/4"

$

$

Not available

25

White Outdoor WD-131-1352

NUT - 3/8" - 16 flange lock

$

$

Not available

26

White Outdoor WD-195-541

WASHER - 5/8" x 1-1/2"

$

$

Not available
