FR-16 (135-006-190) - White Outdoor Front-Mount Riding Mower (1995) Gear Box (Curtis) Parts Diagram

Front-Mount Riding Mower

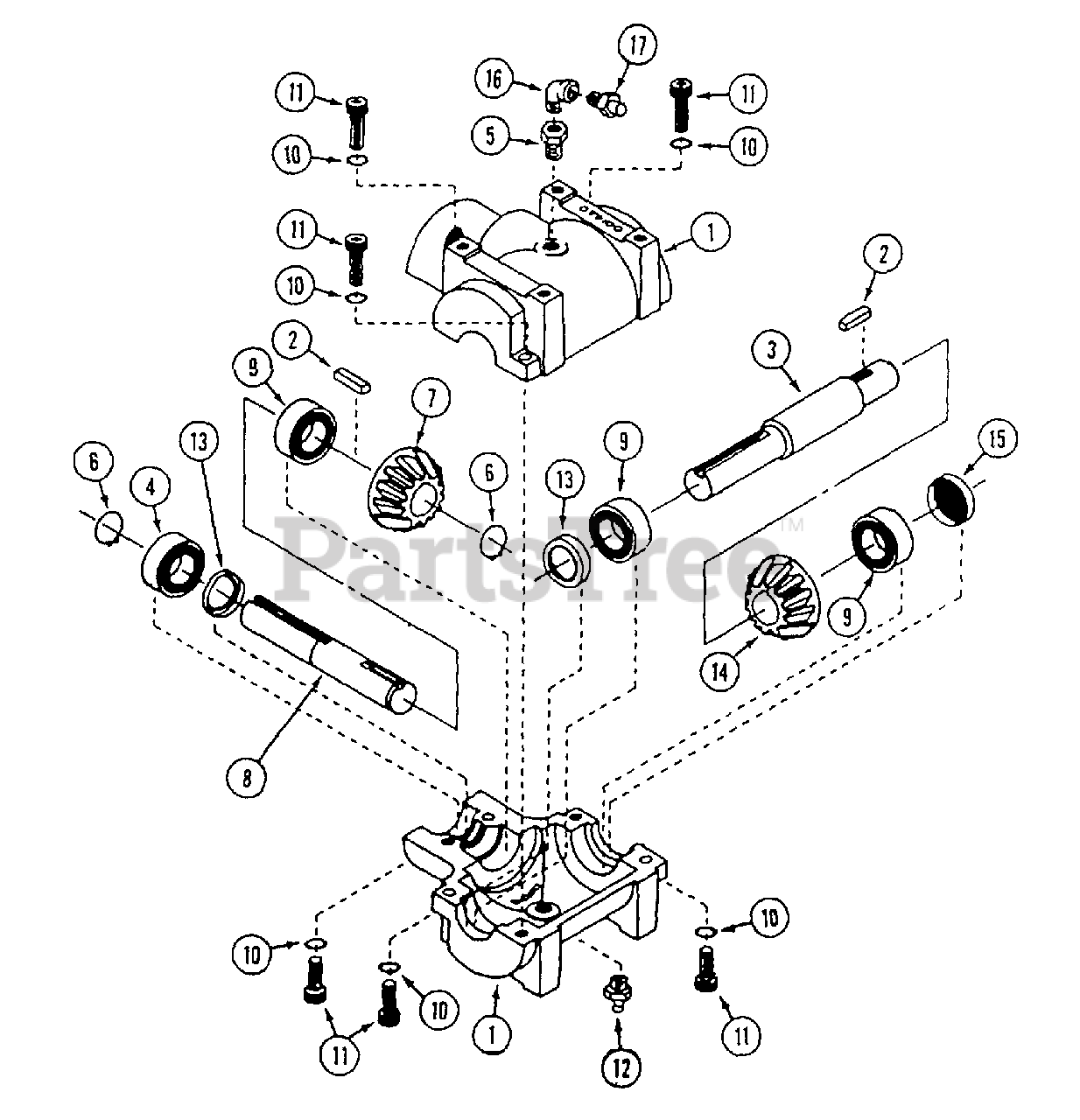

Gear Box (Curtis) Parts Diagram

  • Title

WD-C44917

GEAR BOX

$

$

Not available

1

White Outdoor WD-C37959

HOUSING - half

$

$

Not available

2

White Outdoor WD-C29581

KEY - 3/16" x 3/16" x 1"

$

$

Not available

3

White Outdoor WD-C37960

SHAFT - input

$

$

Not available

4

White Outdoor WD-C37961

BEARING - ball
(Superseded to WD-C37961P)

$

$

Not available

5

White Outdoor WD-221-84

BUSHING - pipe 1/4" x 1/8"

$

$

Not available

6

White Outdoor WD-C37963

RING - retaining

$

$

Not available

7

White Outdoor WD-C37964

GEAR - output shaft

$

$

Not available

8

White Outdoor WD-C37965

SHAFT - output

$

$

Not available

9

White Outdoor WD-C37966

BEARING - ball

$

$

Not available

10

WD-C37967

LOCKWASHER

$

$

Not available

11

White Outdoor WD-C37968

CAP SCREW - allen head

$

$

Not available

12

WD-219-23

FITTING - grease 1/4" NPT

$

$

Not available

13

$

$

Not available

14

White Outdoor WD-C37970

GEAR - input shaft

$

$

Not available

15

White Outdoor WD-C37971

PLUG - expansion

$

$

Not available

16

WD-221-441

ELBOW - street 1/8" x 90°.

$

$

Not available

17

White Outdoor WD-C28241

VALVE - relief

$

$

Not available

WD-C37975

GREASE - synthetic, cartridge

$

$

Not available
