FR-16 (135-006-190) - White Outdoor Front-Mount Riding Mower (1995) Engine & Attaching Parts Parts Diagram

Front-Mount Riding Mower

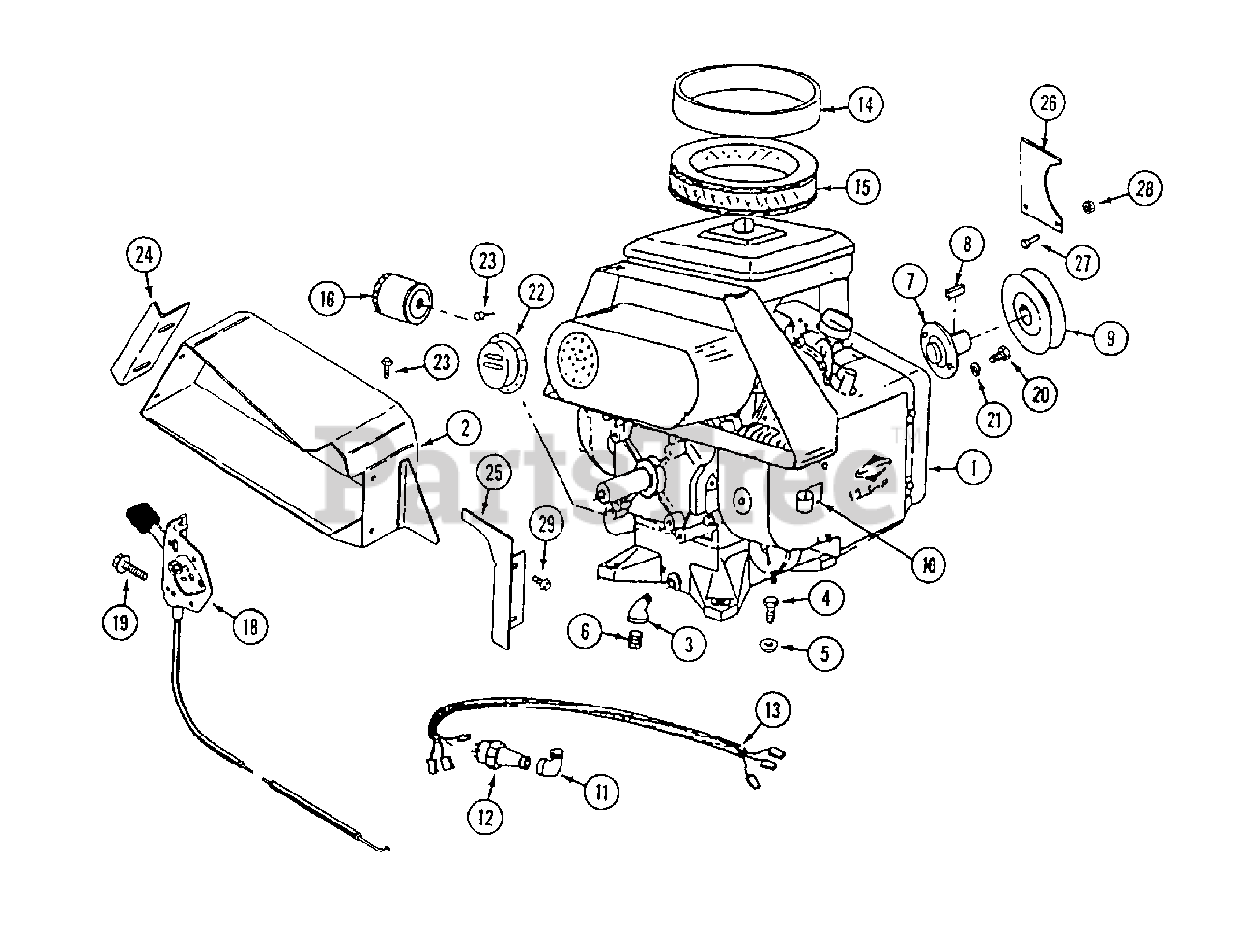

Engine & Attaching Parts Parts Diagram

  • Title
1

WD-C41675

ENGINE - Briggs and Stratton

Note: For model 422447, Spec. No. 1277

$

$

Not available

2

WD-C45077

DUCT - air

$

$

Not available

3

WD-221-1413

ELBOW - street 3/8"

$

$

Not available

4

WD-113-104

BOLT - 5/16" - 18 x 1-1/4"

$

$

Not available

5

White Outdoor WD-131-911

NUT - 5/16" - 18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor WD-900-5022

PLUG - pipe 3/8"
(Superseded to BS-491056)

$9.99

$

In Stock, only 1 left!

0

7

$

$

Not available

8

White Outdoor WD-C41015

KEY - 1/4" x 1/4" x 1"
(Superseded to 714-0128)

$4.99

$

In Stock, Qty 6

0

9

White Outdoor WD-900-2503

PULLEY - drive

Note: (Use 83-55 set screw)

$

$

Not available

10

WD-C32455

RETAINER - starter cable

$

$

Not available

11

White Outdoor WD-221-411

ELBOW - street 1/8"

$

$

Not available

12

White Outdoor WD-900-5017

UNIT - oil sending
(Superseded to WD-C37531P)

$

$

Not available

13

WD-C42240

HARNESS - wire

$

$

Not available

14

White Outdoor WD-900-5008

PRECLEANER
(Superseded to BS-272490S)

$5.49

$

In Stock, Qty 16

0

15

White Outdoor WD-900-5005

FILTER - air
(Superseded to BS-394018S)

$25.99

$

In Stock, Qty 8

0

16

White Outdoor WD-900-5022

FILTER - oil
(Superseded to BS-491056)

$9.99

$

In Stock, only 1 left!

0

?17

WD-121-21

BOLT - 1/4" - 20 flange lock

$

$

Not available

18

$

$

Not available

White Outdoor WD-900-5605

CABLE - throttle

$

$

Not available

19

WD-C39403

SCREW - #12 x 1/2"

$

$

Not available

20

White Outdoor WD-192-21

LOCKWASHER - 3/8"
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor WD-113-207

BOLT - 3/8" - 16 x 1"
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

22

WD-C33444

DEFLECTOR - exhaust

$

$

Not available

23

WD-187-1041

SCREW - #8 - 32 x 3/8"

$

$

Not available

24

WD-C45078

DEFLECTOR - front extension

$

$

Not available

25

WD-C45079

DEFLECTOR - rear extension

$

$

Not available

26

White Outdoor WD-111-0012

RETAINER - drive belt

$

$

Not available

27

WD-113-4

BOLT - 1/4" - 20 x 1"

$

$

Not available

28

White Outdoor WD-131-71

NUT - 1/4" - 20 lock

$

$

Not available

29

UNKNOWN

$

$

Not available
