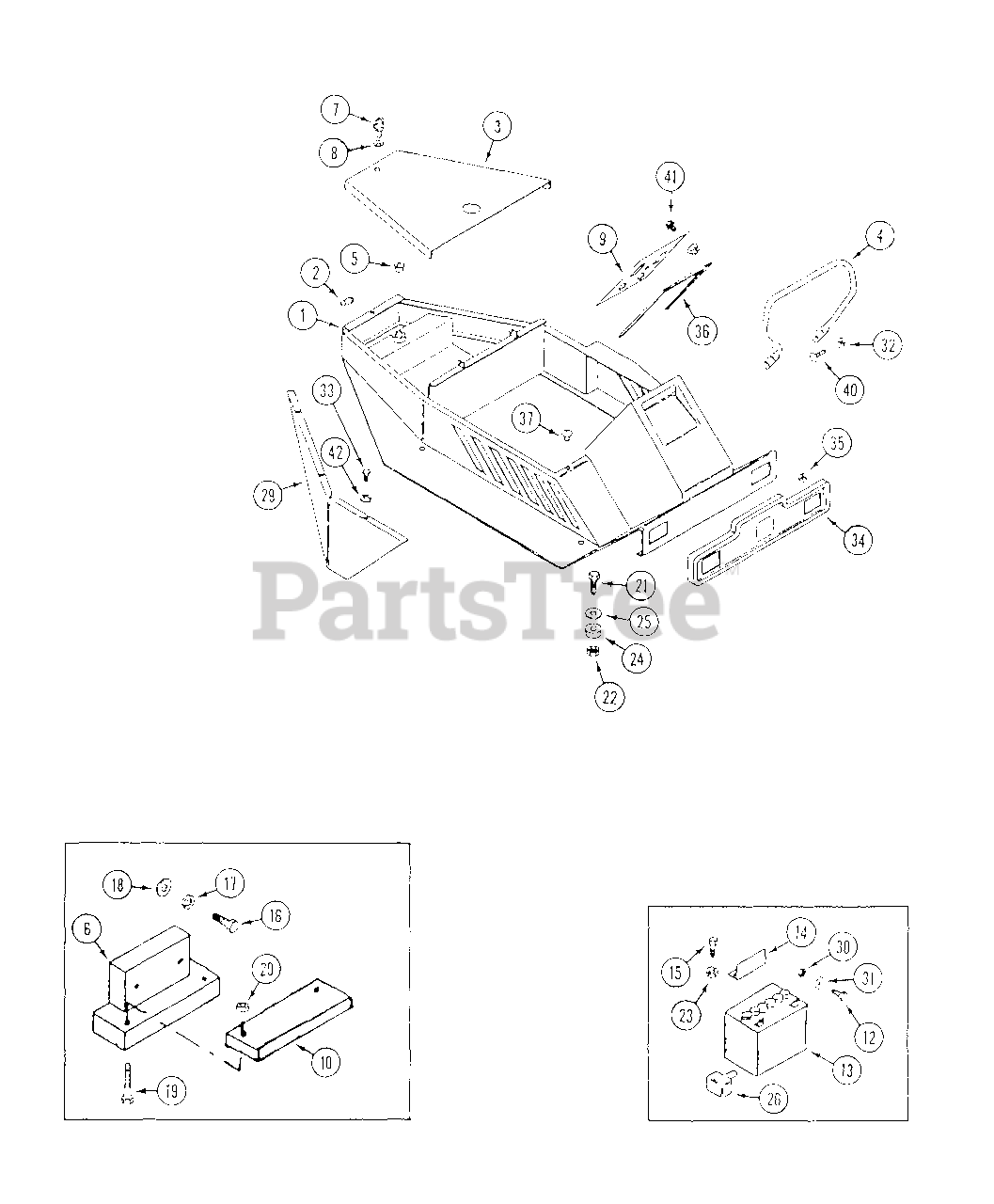

FR-16 (135-006-190) - White Outdoor Front-Mount Riding Mower (1995) Body Parts Diagram

Front-Mount Riding Mower

Body Parts Diagram

  • Title
1

WD-C44954

BODY

$

$

Not available

2

WD-219-92

FITTING - grease

$

$

Not available

3

$

$

Not available

4

$

$

Not available

5

White Outdoor WD-900-3501

BEARING - rear wheel fork

$

$

Not available

6

White Outdoor WD-230-0002

WEIGHT - tail

Note: (Optional)

$

$

Not available

7

White Outdoor WD-C41944

STUD - fastener

$

$

Not available

8

White Outdoor WD-C41945

GROMMET - fastener

$

$

Not available

9

$

$

Not available

10

White Outdoor WD-230-0010

WEIGHT - tail 13 lb.

Note: (Optional)

$

$

Not available

?11

WD-C34117

NUT - #10 - 24 flange lock

$

$

Not available

12

White Outdoor WD-113-3

BOLT - 1/4" - 20 x 3/4"

$

$

Not available

13

White Outdoor WD-C41010

BATTERY - 12V, 300 CCA

$

$

Not available

14

White Outdoor WD-200-0019

BRACKET - hold down, battery

$

$

Not available

15

WD-C38677

BOLT - 1/4" - 20 x 7"

$

$

Not available

16

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

17

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

18

White Outdoor WD-195-103

WASHER - 5/16"

$

$

Not available

19

WD-113-259

BOLT - 3/8" - 16 x 4-1/2"

$

$

Not available

20

White Outdoor WD-131-1352

NUT - 3/8" - 16 flange lock

$

$

Not available

21

White Outdoor WD-113-425

BOLT - 1/2" - 13 x 3"
(Superseded to 710-0182A)

$7.99

$

In Stock, only 2 left!

0

22

White Outdoor WD-131-70

NUT - 1/2" lock
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor WD-131-71

NUT - 1/4" - 20 lock

$

$

Not available

24

White Outdoor WD-900-5509

MOUNT - body, rubber

$

$

Not available

25

White Outdoor WD-200-0015

WASHER - mount, body

$

$

Not available

26

White Outdoor WD-C24069

COVER - terminal

$

$

Not available

?27

WD-C39525

PAD - footrest, front L.H.

$

$

Not available

White Outdoor WD-C39526

PAD - footrest, front R.H.

Note: (Shown)

$

$

Not available

?28

White Outdoor WD-C44955

PAD - footrest, rear L.H.

$

$

Not available

WD-C44956

PAD - footrest, rear R.H.

$

$

Not available

29

$

$

Not available

$

$

Not available

30

WD-129-101

NUT - 1/4" - 20

$

$

Not available

31

White Outdoor WD-195-102

WASHER - 1/4"

$

$

Not available

32

White Outdoor WD-131-911

NUT - 5/16" - 18 flange lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

33

WD-C34808

BOLT - 1/4" - 20 x 3/4" self-tap

$

$

Not available

34

$

$

Not available

35

White Outdoor WD-131-971

NUT - #8 - 32 flange lock

$

$

Not available

36

WD-C44035

TRIM - 28"

$

$

Not available

37

White Outdoor WD-C35067

BUMPER - nylon

$

$

Not available

40

White Outdoor WD-C42056

BOLT - 5/16" - 18 x 5/8"

$

$

Not available

41

WD-900-6152

SCREW - #12 x 1/2"

$

$

Not available

WD-182-513

SCREW - #10 - 24 x 1/2"

$

$

Not available

42

WD-192-19

LOCKWASHER - 1/4"

$

$

Not available
