FR-16 (135-006-190) - White Outdoor Front-Mount Riding Mower (1995) 52" Mower Drive Parts Diagram

Front-Mount Riding Mower

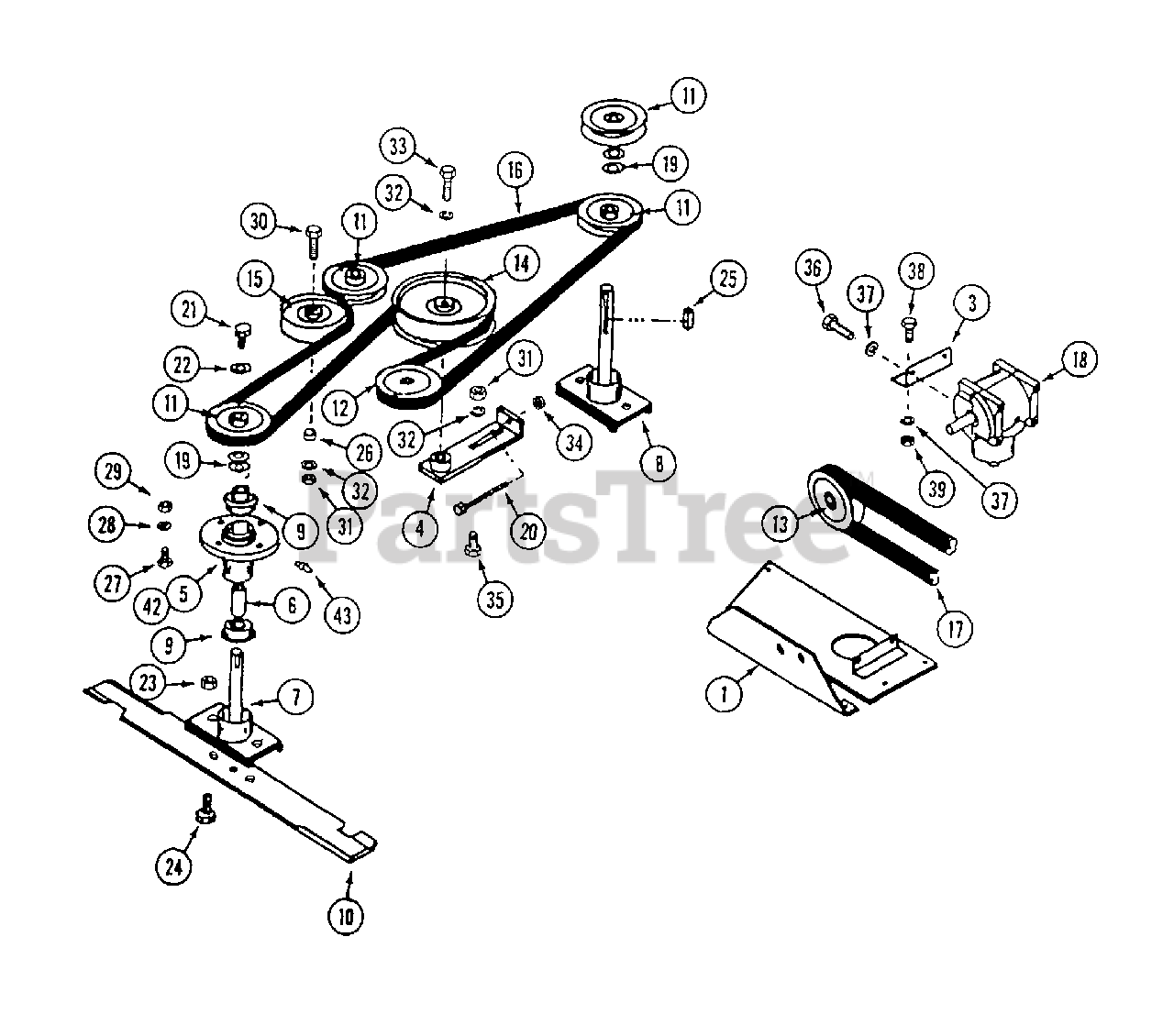

52" Mower Drive Parts Diagram

  • Title

1

White Outdoor WD-321-0001

MOUNT - gear box

$

$

Not available

3

White Outdoor WD-310-0006

ANGLE - gear box mount

$

$

Not available

4

White Outdoor WD-C45653

TIGHTENER - belt

$

$

Not available

5

White Outdoor WD-300-0025

HOUSING - spindle

$

$

Not available

6

White Outdoor WD-C45884

SPACER - spindle

$

$

Not available

7

White Outdoor WD-C44128

SHAFT - spindle

$

$

Not available

8

White Outdoor WD-C44130

SHAFT - spindle, long

$

$

Not available

9

White Outdoor WD-C45886

BEARING - spindle

$

$

Not available

10

White Outdoor WD-C44136

BLADE - mower

$

$

Not available

11

White Outdoor WD-900-2511

PULLEY - spindle
(Superseded to WD-C37931)

$

$

Not available

12

White Outdoor WD-900-2510

PULLEY - gear box output

$

$

Not available

13

White Outdoor WD-900-2525

PULLEY - gear box input
(Superseded to WD-C37892)

$

$

Not available

14

White Outdoor WD-900-2521

PULLEY - idler, large 6"
(Superseded to WD-C37933)

$104.99

$

Usually ships in 3-6 days

0

White Outdoor WD-C45649

PULLEY - idler, large 5-1/2"

$

$

Not available

15

White Outdoor WD-C45655

PULLEY - idler, small

$

$

Not available

16

White Outdoor WD-900-3005B

BELT - deck

$

$

Not available

17

White Outdoor WD-900-3004

BELT - drive

$

$

Not available

18

White Outdoor WD-900-5842

GEAR BOX - angle drive

Note: (For repairs) (Curtis model)

$

$

Not available

White Outdoor WD-C42775

GEAR BOX - angle drive

Note: (For repairs) (Superior model)

$

$

Not available

19

White Outdoor WD-900-6002

SPACER - washer

$

$

Not available

20

White Outdoor WD-900-6034

BOLT - 1/4" - 20 x 4"

$

$

Not available

21

White Outdoor WD-114-201

BOLT - 3/8" - 24 x 1-1/4"

$

$

Not available

22

White Outdoor WD-C45846

WASHER - 3/8" hardend

$

$

Not available

23

White Outdoor WD-131-1216

NUT - 3/8" - 16 lock

$

$

Not available

24

White Outdoor WD-113-268

BOLT - 3/8" - 16 x 1"

$

$

Not available

25

White Outdoor WD-300-0021

KEY - 3/16" x 1"
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0

26

White Outdoor WD-300-0016

SPACER - idler pulley
(Superseded to WD-C37937)

Note: (Early production)

$

$

Not available

27

White Outdoor WD-113-312

BOLT - 7/16" - 14 x 1-1/4"

$

$

Not available

28

WD-192-22

LOCKWASHER - 7/16"

$

$

Not available

29

WD-129-104

NUT - 7/16" - 14

$

$

Not available

30

White Outdoor WD-113-257

BOLT - 3/8" - 16 x 2-1/2"

$

$

Not available

White Outdoor WD-113-213

BOLT - 3/8" - 16 x 2-1/4"

$

$

Not available

31

White Outdoor WD-129-103

NUT - 3/8" lock
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 20+

0

White Outdoor WD-131-1352

NUT - 3/8" - 16 flange lock

$

$

Not available

32

White Outdoor WD-192-21

LOCKWASHER - 3/8"
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

33

White Outdoor WD-113-208

BOLT - 3/8" - 16 x 1-1/4"

$

$

Not available

34

White Outdoor WD-131-71

NUT - 1/4" - 20 lock

$

$

Not available

35

WD-111-371

BOLT - 3/8" - 16 x 1" carriage

$

$

Not available

36

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

37

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

38

White Outdoor WD-113-102

BOLT - 5/16" - 18 x 3/4"

$

$

Not available

39

White Outdoor WD-129-102

NUT - 5/16" - 18

$

$

Not available

?40

WD-113-1

BOLT - 1/4" - 20 x 1/2"

$

$

Not available

?41

WD-192-19

LOCKWASHER - 1/4"

$

$

Not available

42

White Outdoor WD-C45859

HOUSING ASSEMBLY - spindle

Note: (Includes ref. 5, 6, 9)

$

$

Not available

43

White Outdoor WD-219-20

FITTING - grease 1/4" - 28

$

$

Not available
