FR-16 (134-006-190) - White Outdoor Front-Mount Riding Mower (1994) Seat Lid Assembly Parts Diagram

Front-Mount Riding Mower

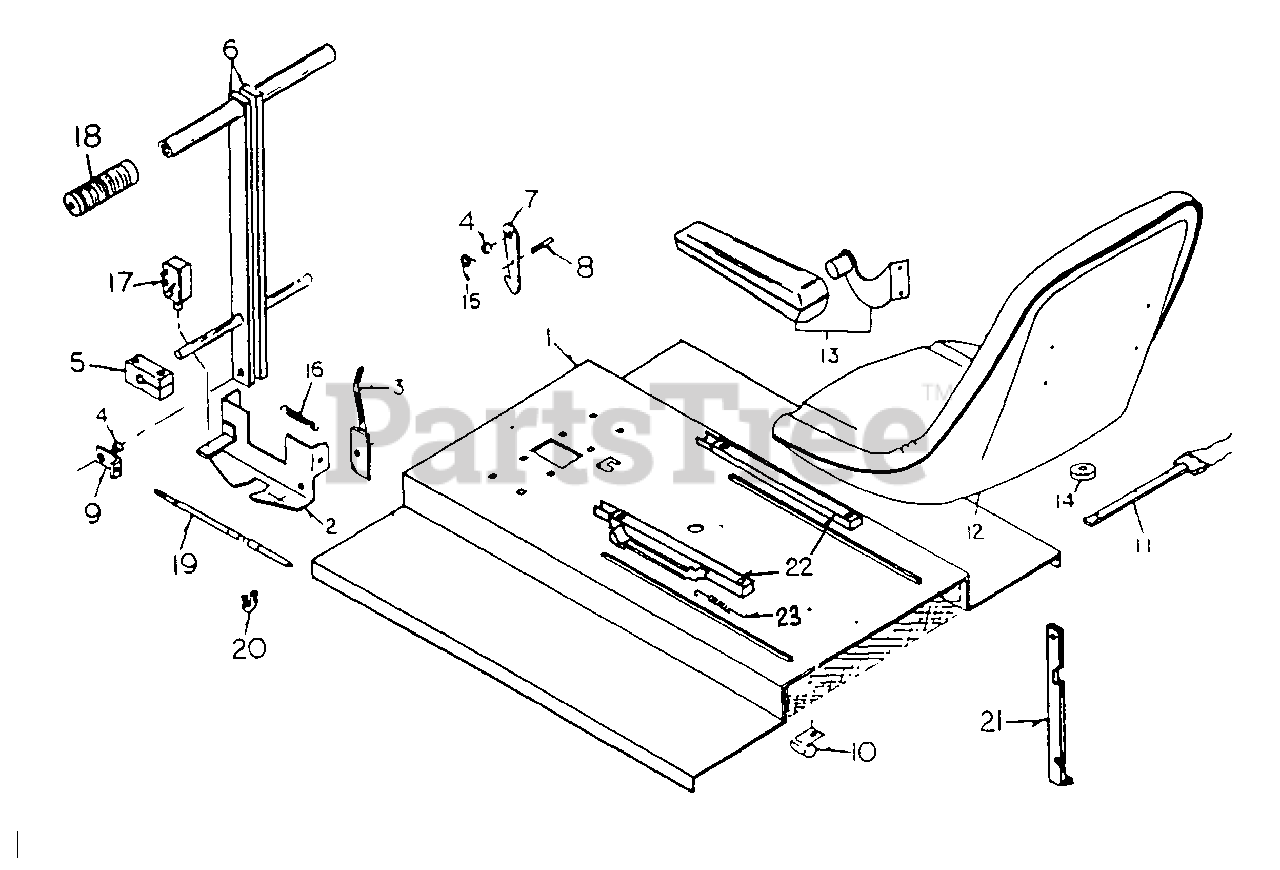

Seat Lid Assembly Parts Diagram

  • Title

$

$

Not available

$

$

Not available

3

White Outdoor WD-200-0012

Latch, Lever Lock

$

$

Not available

4

White Outdoor WD-200-0014

Bushing
(Superseded to WD-C42895)

$

$

Not available

5

$

$

Not available

6

White Outdoor WD-C44915

Steering Lever

$

$

Not available

7

White Outdoor WD-201-0015

Seat Lid Latch

$

$

Not available

8

White Outdoor WD-201-0014

Seat Lid Latch Bolt

$

$

Not available

9

White Outdoor WD-200-0013

Steering Cable End
(Superseded to WD-C37614)

$

$

Not available

10

White Outdoor WD-201-0018

Seat Lid Harness Retainer

$

$

Not available

11

$

$

Not available

$

$

Not available

13

~NSS

Arm Rest Kit

Note: (Optional)

$

$

Not available

14

$

$

Not available

15

White Outdoor WD-900-5700

Seat Lid Latch Spring

$

$

Not available

16

White Outdoor WD-900-5501

Lever Lock Spring

$

$

Not available

17

$

$

Not available

18

White Outdoor WD-900-5500

Handle Grip
(Superseded to WD-C37631)

$

$

Not available

19

White Outdoor WD-900-5502

Steering Cable

$

$

Not available

20

White Outdoor WD-900-5503

Steering Cable Clamp
(Superseded to WD-C37616)

$

$

Not available

$

$

Not available

22

White Outdoor WD-900-5813

Seat Rail Kit (Pair)

$

$

Not available

23

$

$

Not available
