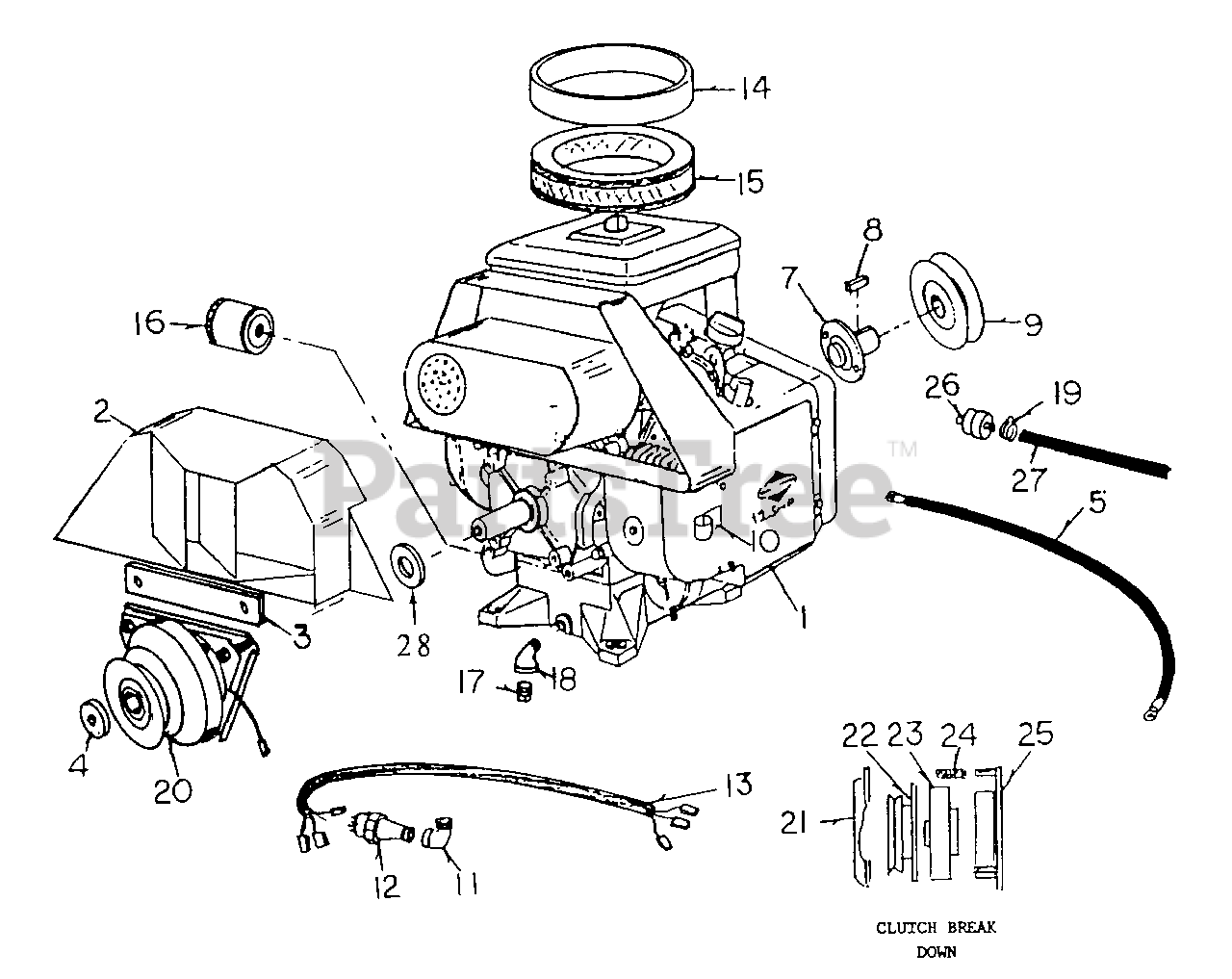

FR-16 (134-006-190) - White Outdoor Front-Mount Riding Mower (1994) Briggs & Stratton Engine Parts Parts Diagram

Front-Mount Riding Mower

Briggs & Stratton Engine Parts Parts Diagram

  • Title
1

Briggs & Stratton Twin

$

$

Not available

2

WD-C45077

Air Duct

$

$

Not available

$

$

Not available

4

White Outdoor WD-900-5575

Clutch Retainer Washer

$

$

Not available

5

$

$

Not available

$

$

Not available

8

White Outdoor WD-100-0014

Key, 1/4" x 1/4" x 1"
(Superseded to 714-0128)

$4.99

$

In Stock, Qty 6

0

$

$

Not available

10

WD-100-0021

Starter Cable Retainer

$

$

Not available

11

WD-900-5020

Street Elbow, 1/8" x 90°

$

$

Not available

12

White Outdoor WD-900-5017

Oil Sending Unit
(Superseded to WD-C37531P)

$

$

Not available

13

WD-C42240

Harness - oil unit

$

$

Not available

14

White Outdoor WD-900-5008

Precleaner
(Superseded to BS-272490S)

$5.49

$

In Stock, Qty 18

0

15

White Outdoor WD-900-5005

Air Cleaner Cartridge
(Superseded to BS-394018S)

$25.99

$

In Stock, Qty 10

0

16

White Outdoor WD-900-5022

Oil Filter
(Superseded to BS-491056)

$9.99

$

In Stock, only 1 left!

0

$

$

Not available

18

WD-900-5604

Street Elbow, 3/6"

$

$

Not available

19

White Outdoor WD-900-5525

Fuel Line Clamp
(Superseded to 726-0205)

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor WD-900-5581

Clutch (Complete)

$

$

Not available

21

$

$

Not available

22

White Outdoor WD-900-5583

Clutch armature

$

$

Not available

23

White Outdoor WD-900-5584

Clutch Rotor
(Superseded to WD-C37551)

$

$

Not available

24

White Outdoor WD-900-5586

Spring & Nut Set (3 Ea.)

$

$

Not available

25

White Outdoor WD-900-5585

Clutch Coil
(Superseded to 759-3541)

$

$

Not available

26

White Outdoor WD-900-5514

Fuel Filter
(Superseded to BS-298090S)

$

$

Not available

$

$

Not available

28

White Outdoor WD-C31614

Spacer - clutch

$

$

Not available

WD-C45078

Extension - exhaust duct, front

$

$

Not available

WD-C45079

Extension - exhaust duct, rear

$

$

Not available
