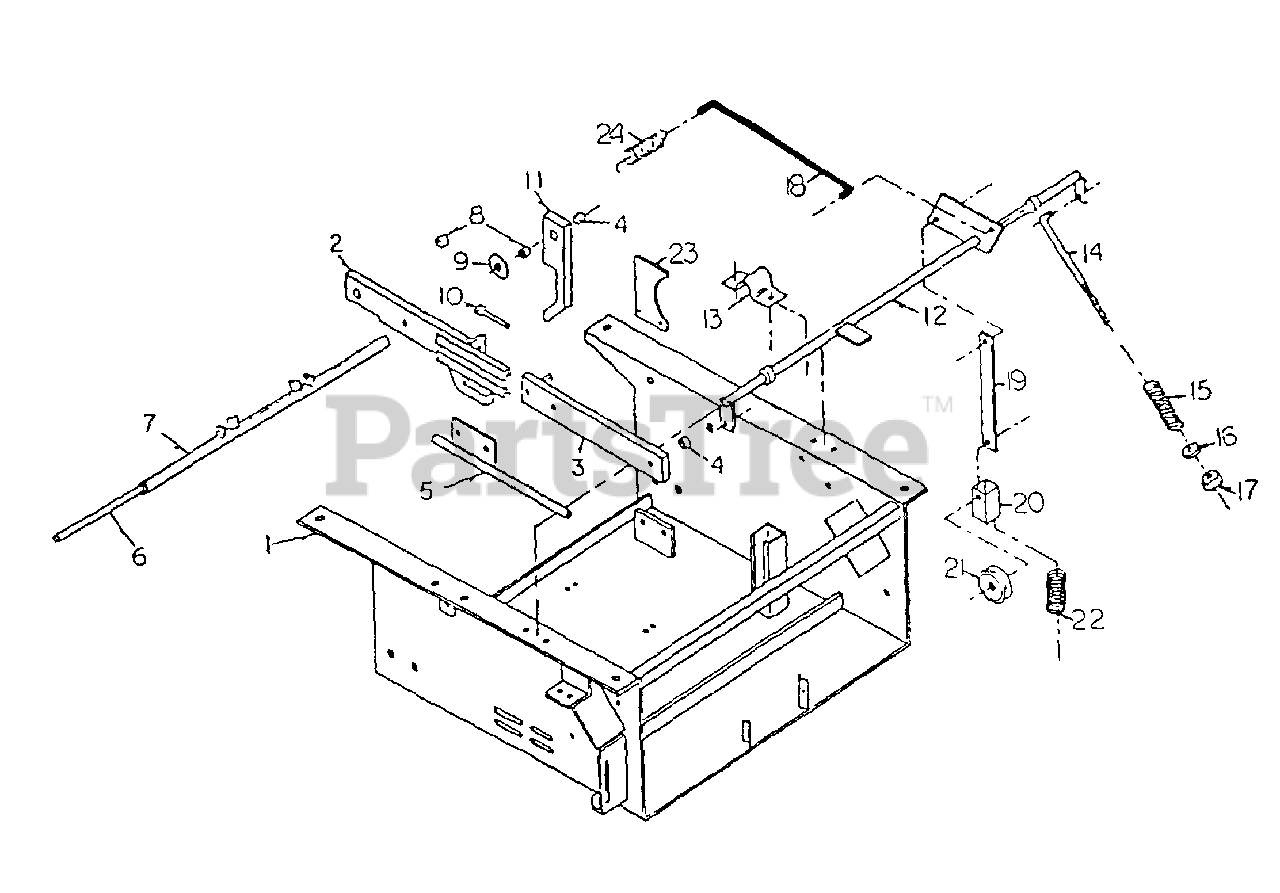

FR-16 (134-006-190) - White Outdoor Front-Mount Riding Mower (1994) Base Assembly Parts Diagram

Front-Mount Riding Mower

Base Assembly Parts Diagram

  • Title

1

WD-111-0000

Base

$

$

Not available

2

White Outdoor WD-300-0023RH

Deck Lift Arm, Front R.H.

$

$

Not available

White Outdoor WD-300-0023LH

Deck Lift Arm, Front L.H.

$

$

Not available

3

WD-301-0024

Deck Lift Arm, Back R.H.

$

$

Not available

WD-301-0024LH

Deck Lift Arm, Back L.H.

$

$

Not available

4

White Outdoor WD-300-0013S

Bushing, Short
(Superseded to WD-C37576)

$

$

Not available

5

White Outdoor WD-300-0041

Wire Tube

$

$

Not available

6

WD-300-0022

Cross Bar Pin

$

$

Not available

7

White Outdoor WD-300-0014

Cross Bar

$

$

Not available

8

White Outdoor WD-300-0013

Bushing, Long
(Superseded to WD-C37586)

$

$

Not available

9

White Outdoor WD-200-0015

Body Mount Washer

$

$

Not available

10

White Outdoor WD-900-6088

Tap Bolt, 3/8-16 x 3", GR5

$

$

Not available

11

White Outdoor WD-111-0023

Forward Nose Down Lock

$

$

Not available

12

White Outdoor WD-111-0037

Brake Clutch Cross Rod

$

$

Not available

13

White Outdoor WD-111-0004

Bearing, Brake Cross Rod

$

$

Not available

14

White Outdoor WD-111-0007

Caliper Rod

$

$

Not available

15

White Outdoor WD-900-5568

Caliper Spring

$

$

Not available

16

WD-900-6029

Flatwasher, 1/4"

$

$

Not available

17

WD-900-6027

Elastic Stop Nut, 1/4-20

$

$

Not available

18

White Outdoor WD-113-0006

Brake Pedal Rod

$

$

Not available

19

White Outdoor WD-113-0012

Cross Rod to Idler Pulley

$

$

Not available

20

White Outdoor WD-111-0019

Spring Loaded Idler Mount

$

$

Not available

21

White Outdoor WD-900-2501

Idler Pulley
(Superseded to WD-C38864)

$

$

Not available

22

White Outdoor WD-900-5580

Spring

$

$

Not available

23

White Outdoor WD-111-0012

Belt Retainer

$

$

Not available

24

White Outdoor WD-900-5503

Brake Pedal Spring
(Superseded to WD-C37616)

$

$

Not available
