FR-16 (134-006-190) - White Outdoor Front-Mount Riding Mower (1994) 42" Mower Drive Parts Diagram

Front-Mount Riding Mower

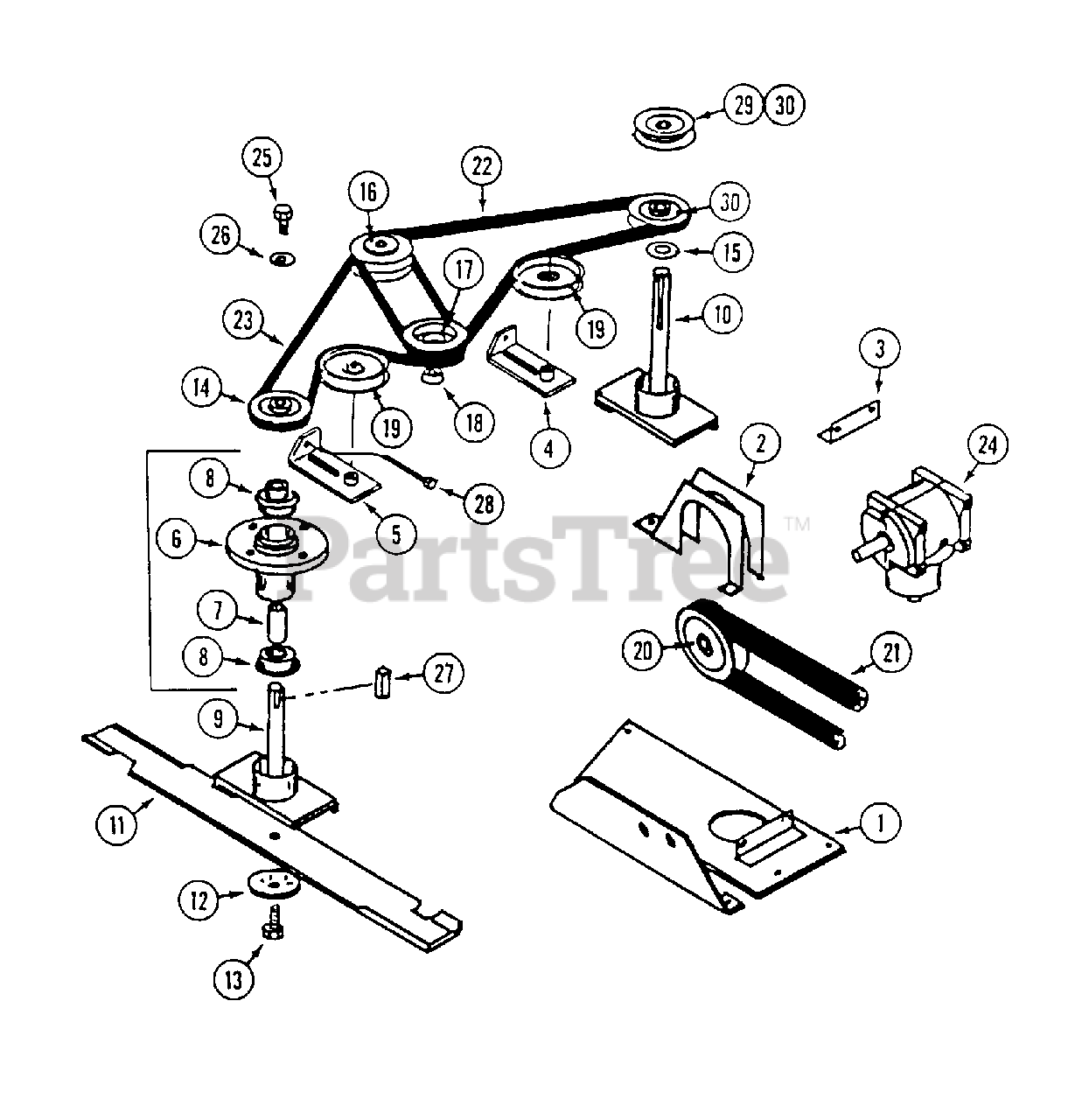

42" Mower Drive Parts Diagram

  • Title
1

White Outdoor WD-311-0001

MOUNT - gear box

$

$

Not available

2

$

$

Not available

3

White Outdoor WD-310-0006

ANGLE - gear box mount

$

$

Not available

4

White Outdoor WD-300-0029

TIGHTENER - belt

$

$

Not available

5

White Outdoor WD-300-0030

TIGHTENER - belt

$

$

Not available

6

White Outdoor WD-300-0025

HOUSING - spindle

$

$

Not available

7

White Outdoor WD-300-0027

SPACER - spindle

$

$

Not available

8

White Outdoor WD-900-3506

BEARING - spindle
(Superseded to WD-C42786P)

$88.99

$

In Stock, only 1 left!

0

9

White Outdoor WD-300-0026

SHAFT - spindle
(Superseded to WD-C37883)

$

$

Not available

10

White Outdoor WD-300-0033

SHAFT - spindle

$

$

Not available

$

$

Not available

12

White Outdoor WD-900-5534

WASHER - blade

$

$

Not available

13

White Outdoor WD-900-6080

BOLT - 3/8" - 24 x 1-1/4"
(Superseded to WD-114-201)

$

$

Not available

14

White Outdoor WD-900-2507

PULLEY - spindle
(Superseded to WD-C37887)

$

$

Not available

15

White Outdoor WD-900-6002

WASHER - spacer

$

$

Not available

16

White Outdoor WD-900-2516

PULLEY - spindle, double
(Superseded to WD-C37889)

$

$

Not available

17

White Outdoor WD-900-2515

PULLEY - gear box output

$

$

Not available

18

WD-900-2515B

HUB - pulley

$

$

Not available

19

White Outdoor WD-900-2518

PULLEY - idler

$

$

Not available

20

White Outdoor WD-900-2525

PULLEY - gear box input
(Superseded to WD-C37892)

$

$

Not available

21

$

$

Not available

22

White Outdoor WD-900-3006

BELT - deck
(Superseded to WD-C37896)

$

$

Not available

23

$

$

Not available

24

White Outdoor WD-900-5842

GEAR BOX

Note: (For repairs). (Curtis model)

$

$

Not available

25

White Outdoor WD-900-6073

BOLT - 5/16" - 24 x 3/4"
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 15

0

26

White Outdoor WD-300-0017

WASHER - 5/16", 10 ga.

$

$

Not available

27

White Outdoor WD-300-0021

KEY - 3/16" x 3/16" x 1"
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0

28

White Outdoor WD-900-6034

BOLT - 1/4" - 20 x 4"

$

$

Not available

29

White Outdoor WD-900-2528

PULLEY - spindle

$

$

Not available

30

UNKNOWN

$

$

Not available

?31

White Outdoor WD-600-0000

HOUSING ASSEMBLY - spindle

Note: (Includes ref. 6, 7, 8)

$

$

Not available
