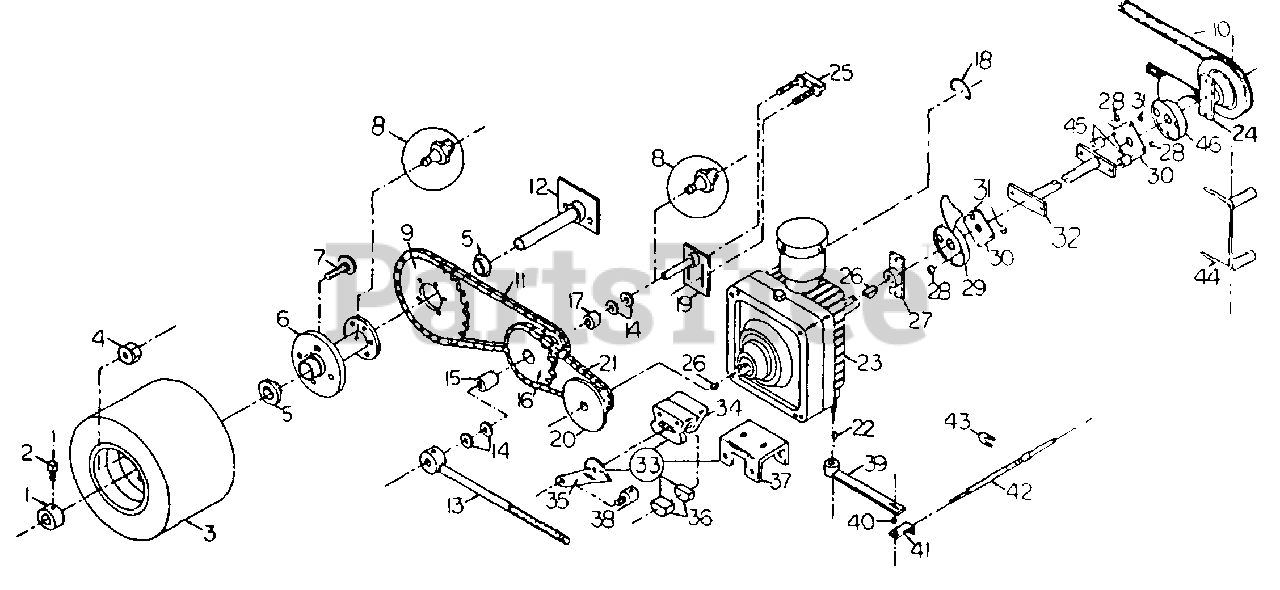

FR-14 (133-005-190) - White Outdoor Front-Mount Riding Mower (1993) Transmission & Chain Drives Parts Diagram

Front-Mount Riding Mower

Transmission & Chain Drives Parts Diagram

  • Title

1

White Outdoor WD-900-5510

Set Collar, 1"

$

$

Not available

2

WD-900-6058

Squarehead Setscrew, 5/16-18 x 1/2"

$

$

Not available

3

White Outdoor WD-900-4012

Drive Wheel Ass'y., 16 x 7.50-8

$

$

Not available

White Outdoor WD-900-4021

Drive Tire, 16 x 7.50-8

$

$

Not available

White Outdoor WD-900-4003

Rim, 8" x 5 1/2"

$

$

Not available

4

White Outdoor WD-900-6138

Lug Nut, 1/2-20

$

$

Not available

5

White Outdoor WD-900-3501

Drive Wheel Bearing

$

$

Not available

6

White Outdoor WD-900-4009

Drive Wheel Hub

Note: (FR-12)

$

$

Not available

WD-600-0006

Wheel Hub Ass'y., Regular

Note: (Includes Items 5, 6, 7, 8 & 9)

$

$

Not available

6

White Outdoor WD-900-4033

Hub - Drive Wheel

Note: (FR-14, FR-16)

$

$

Not available

7

White Outdoor WD-900-6137

Lug Bolt, 1/2-20 x 1 1/4"

$

$

Not available

8

WD-900-5619

Self-tapping Zerk, 1/4-28

$

$

Not available

9

White Outdoor WD-901-1502

Final Drive Sprocket, 40A 54

$

$

Not available

10

White Outdoor WD-900-3011

Transmission Belt

$

$

Not available

11

White Outdoor WD-900-1000

Final Drive Chain

Note: (FR-12)

$

$

Not available

11

White Outdoor WD-C44081

Chain - Final Drive

Note: (FR-14, FR-16)

$

$

Not available

12

White Outdoor WD-100-0001

Drive Wheel Axle

$

$

Not available

13

White Outdoor WD-100-0017

Support Collar
(Superseded to WD-C37998)

$

$

Not available

14

White Outdoor WD-900-6003

Machine Washer, 3/4", 10 GA

$

$

Not available

15

White Outdoor WD-900-3500

Idler Sprocket Bearing, 1/2"
(Superseded to 741-0665)

$21.99

$

In Stock, only 2 left!

0

16

White Outdoor WD-901-1501

Idler Sprocket

$

$

Not available

White Outdoor WD-901-1501A

Idler Sprocket w/Bearings

$

$

Not available

17

White Outdoor WD-900-3502

Idler Sprocket Bearing, 3/4"

$

$

Not available

18

White Outdoor WD-900-4510

Transmission Dump Valve Clip

$

$

Not available

19

White Outdoor WD-100-0002

Idler Sprocket Shaft
(Superseded to WD-C38005)

$

$

Not available

20

White Outdoor WD-901-1505

Transmission Sprocket w/Brake Disc

$

$

Not available

21

White Outdoor WD-C44083

Chain - Primary Drive

Note: (FR-14, FR-16)

$

$

Not available

21

White Outdoor WD-900-1001

Primary Drive Chain

Note: (FR-12)

$

$

Not available

22

WD-900-4524

Woodruff Key, 1/8" x 3/8"

$

$

Not available

23

White Outdoor WD-900-4504

Transmission, LH
(Superseded to WD-C47003P)

Note: (Shown)

$

$

Not available

White Outdoor WD-900-4505

Transmission, RH

$

$

Not available

WD-900-4523

Transmission Diaphragm

$

$

Not available

White Outdoor WD-900-4528

Seal Kit
(Superseded to ET-990314-000)

Note: For model 6

$

$

Not available

White Outdoor WD-900-4529

Trans. Reservoir Kit

Note: For model 6

$

$

Not available

24

White Outdoor WD-900-4521

Pulley w/Drive Plate

$

$

Not available

25

White Outdoor WD-100-0016

Bolt Bar

$

$

Not available

26

White Outdoor WD-900-4508

Woodruff Key, 1/8" x 1/2"
(Superseded to 914-0112)

$

$

Not available

27

White Outdoor WD-900-4522

Hub w/Drive Plate

$

$

Not available

28

White Outdoor WD-111-0025

Bolt Spacer

$

$

Not available

29

White Outdoor WD-900-4520

Fan, ccw

$

$

Not available

30

White Outdoor WD-111-0021

Drive Plate
(Superseded to WD-C37700)

$

$

Not available

31

White Outdoor WD-900-6161

Washer, 1/4", 10 GA

$

$

Not available

32

White Outdoor WD-111-0018

Cross Shaft

$

$

Not available

33

White Outdoor WD-900-5690

Brake Assembly, LH

$

$

Not available

White Outdoor WD-900-5691

Brake Assembly, RH

$

$

Not available

34

WD-900-5564

Brake Caliper

$

$

Not available

35

White Outdoor WD-900-5565

Caliper Lever, LH

$

$

Not available

WD-900-5566

Caliper Lever, RH

$

$

Not available

36

White Outdoor WD-900-5567

Brake Pad (Set)

$

$

Not available

37

White Outdoor WD-900-5588

Caliper Bracket

$

$

Not available

38

White Outdoor WD-111-0014

Caliper Rod Collar

$

$

Not available

39

White Outdoor WD-900-4506

Transmission Arm, LH

$

$

Not available

White Outdoor WD-900-4507

Transmission Arm, RH

$

$

Not available

40

White Outdoor WD-200-0014

Cable End Bushing
(Superseded to WD-C42895)

$

$

Not available

41

White Outdoor WD-200-0013

Steering Cable End
(Superseded to WD-C37614)

$

$

Not available

42

White Outdoor WD-900-5502

Steering Cable

$

$

Not available

43

White Outdoor WD-900-5503

Steering Cable Clamp
(Superseded to WD-C37616)

$

$

Not available

44

White Outdoor WD-111-0003

Transmission Belt Retainer

$

$

Not available

45

White Outdoor WD-111-0022

Spacer

$

$

Not available

46

White Outdoor WD-900-4519

Fan, cw

$

$

Not available
