FR-14 (133-005-190) - White Outdoor Front-Mount Riding Mower (1993) Single Tail Wheel Parts Diagram

Front-Mount Riding Mower

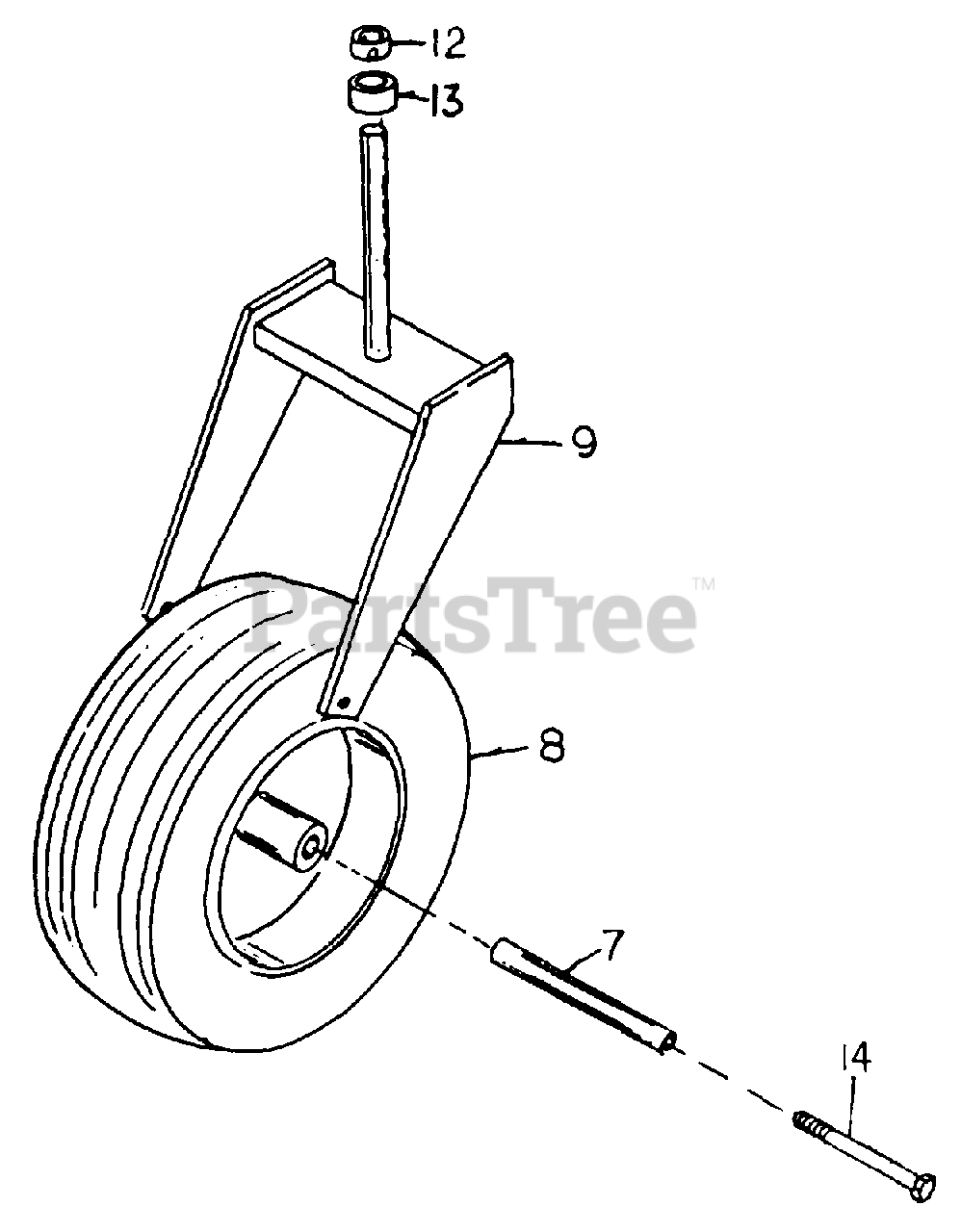

Single Tail Wheel Parts Diagram

  • Title
7

WD-230-0017A

Axle

$

$

Not available

8

White Outdoor WD-900-4014

Tail Wheel Assembly

$

$

Not available

White Outdoor WD-900-3505

Bearing, Wheel Assembly

$

$

Not available

WD-900-4015

Tire, 15 x 6.00-8

$

$

Not available

$

$

Not available

9

White Outdoor WD-210-0001

Tail Wheel Fork

$

$

Not available

12

White Outdoor WD-900-5510

Set Collar, 1"

$

$

Not available

13

White Outdoor WD-213-0003

Spacer, Tail Wheel Fork

$

$

Not available

14

White Outdoor WD-900-6134

Hex Capscrew, 1/2-13 x 8 1/2"

$

$

Not available
