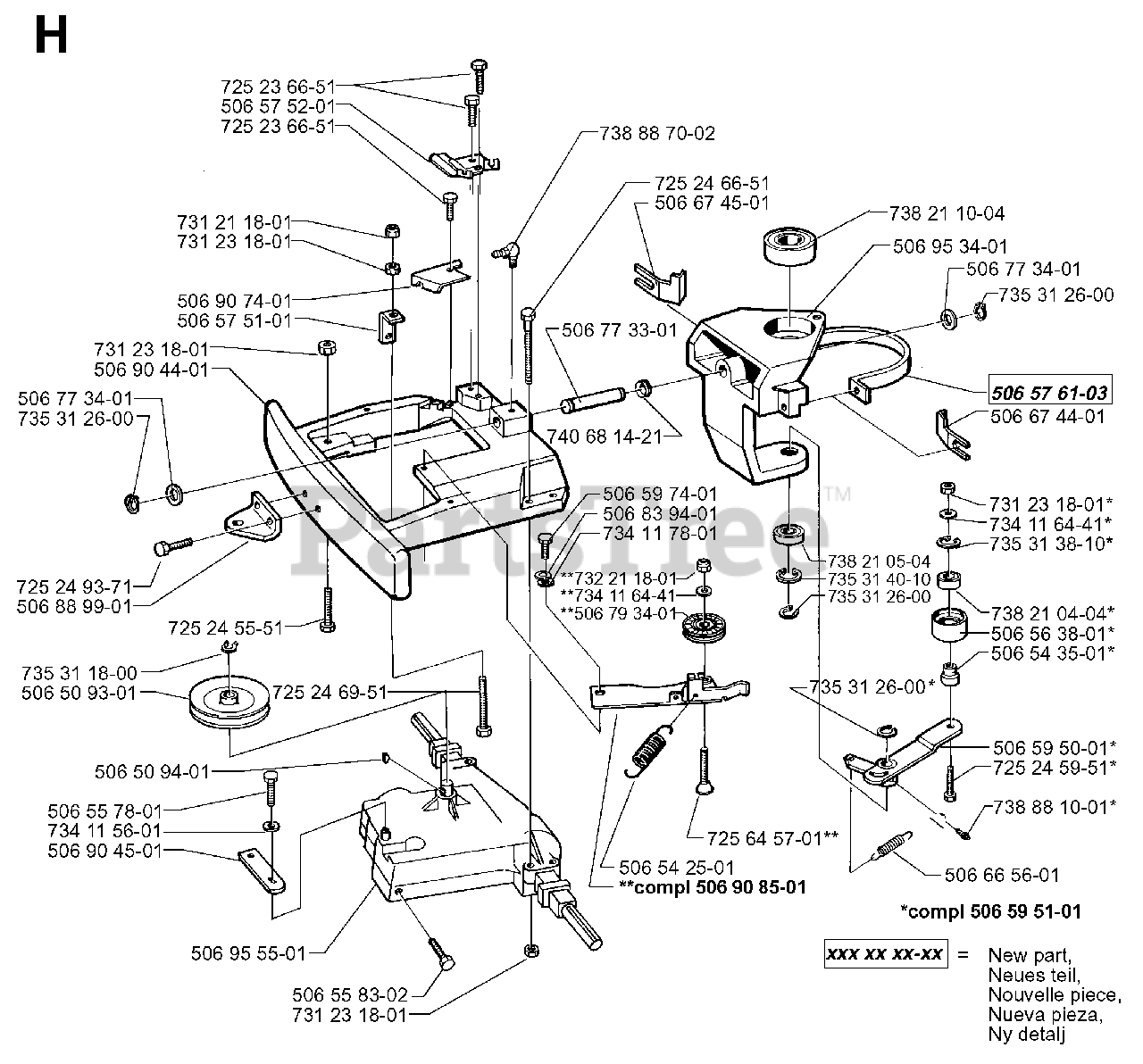

FR 13 - Jonsered Rear-Engine Riding Mower (1998-10) CHASSIS / FRAME Parts Diagram

Rear-Engine Riding Mower

CHASSIS / FRAME Parts Diagram

  • Title
7252366-51

$3.49

$

In Stock, only 3 left!

0

5065752-01

$

$

Not available

7252366-51

$3.49

$

In Stock, only 3 left!

0

7312118-01

Jonsered 731211801

NUT
(Superseded to 732211801)

$4.99

$

In Stock, Qty 12

0

7312318-01

Jonsered 731231801

NUT
(Superseded to 695008078)

$

$

Not available

5069074-01

$

$

Not available

5065751-01

Jonsered 506575101

WIRE BRACKET

$

$

Not available

7312318-01

Jonsered 731231801

NUT
(Superseded to 695008078)

$

$

Not available

5069044-01

$

$

Not available

5067734-01

$4.99

$

In Stock, only 2 left!

0

7353126-00

Jonsered 735312600

RETAINING RING SGA 25

$3.49

$

In Stock, only 1 left!

0

7252493-71

Jonsered 725249371

SCREW M10X25

$1.99

$

Usually ships in 3-10 days

0

5068899-01

Jonsered 506889901

DRAW RING

$20.99

$

Usually ships in 3-10 days

0

7252455-51

$

$

Not available

7353118-00

Jonsered 735311800

RETAINING RING SGA 16

$

$

Not available

5065093-01

$

$

Not available

5065094-01

$

$

Not available

5065578-01

$

$

Not available

7341156-01

Jonsered 734115601

WASHER
(Superseded to 734492601)

$

$

Not available

5069045-01

$

$

Not available

5069555-01

$

$

Not available

5065583-02

$4.99

$

In Stock, only 1 left!

0

7312318-01

Jonsered 731231801

NUT
(Superseded to 695008078)

$

$

Not available

7252469-51

$3.99

$

Usually ships in 3-10 days

0

5069085-01

Jonsered 506908501

BELT TENSIONER ASSY

$

$

Not available

5065425-01

$

$

Not available

7256457-01

$

$

Not available

5067934-01

$

$

Not available

7341164-41

$4.99

$

Usually ships in 3-10 days

0

7322118-01

Jonsered 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

7341178-01

Jonsered 734117801

WASHER - M12
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

5068394-01

Jonsered 506839401

SPRINGWASHER

$4.99

$

Usually ships in 3-10 days

0

5065974-01

$6.99

$

In Stock, only 1 left!

0

7406814-21

$4.99

$

In Stock, only 1 left!

0

5067733-01

$

$

Not available

5066745-01

Jonsered 506674501

BELT GUIDE CPL.,LEFT

$

$

Not available

7252466-51

$

$

Not available

7388870-02

$

$

Not available

7382105-04

Jonsered 738210504

BALL BEARING 6005-2RS

$33.99

$

Usually ships in 3-10 days

0

7353140-10

Jonsered 735314010

CIRCLIP SGH 47

$7.49

$

Usually ships in 3-10 days

0

7353126-00

Jonsered 735312600

RETAINING RING SGA 25

$3.49

$

In Stock, only 1 left!

0

7353126-00

Jonsered 735312600

RETAINING RING SGA 25

$3.49

$

In Stock, only 1 left!

0

5065951-01

Jonsered 506595101

BELT TENSIONER ASSY
(Superseded to 535484401)

$62.99

$

In Stock, only 1 left!

0

5066656-01

$28.99

$

Usually ships in 3-10 days

0

7388810-01

Jonsered 738881001

GREASE NIPPLE

$7.99

$

Usually ships in 3-10 days

0

7252459-51

$5.99

$

In Stock, only 4 left!

0

5065950-01

$

$

Not available

5065435-01

$

$

Not available

5065638-01

$

$

Not available

7382104-04

Jonsered 738210404

BALL BEARING 6004-2RS1

$103.99

$

In Stock, Qty 20+

0

7353138-10

Jonsered 735313810

RETAINING RING

$5.99

$

In Stock, only 2 left!

0

7341164-41

$4.99

$

Usually ships in 3-10 days

0

7312318-01

Jonsered 731231801

NUT
(Superseded to 695008078)

$

$

Not available

5066744-01

Jonsered 506674401

BELT GUIDE CPL., RIGHT

$

$

Not available

5065761-03

Jonsered 506576103

GUIDE PLATE

$

$

Not available

7353126-00

Jonsered 735312600

RETAINING RING SGA 25

$3.49

$

In Stock, only 1 left!

0

5067734-01

$4.99

$

In Stock, only 2 left!

0

5069534-01

$

$

Not available

7382110-04

Jonsered 738211004

BALL BEARING 6010 2RS1

$45.99

$

Usually ships in 3-10 days

0
