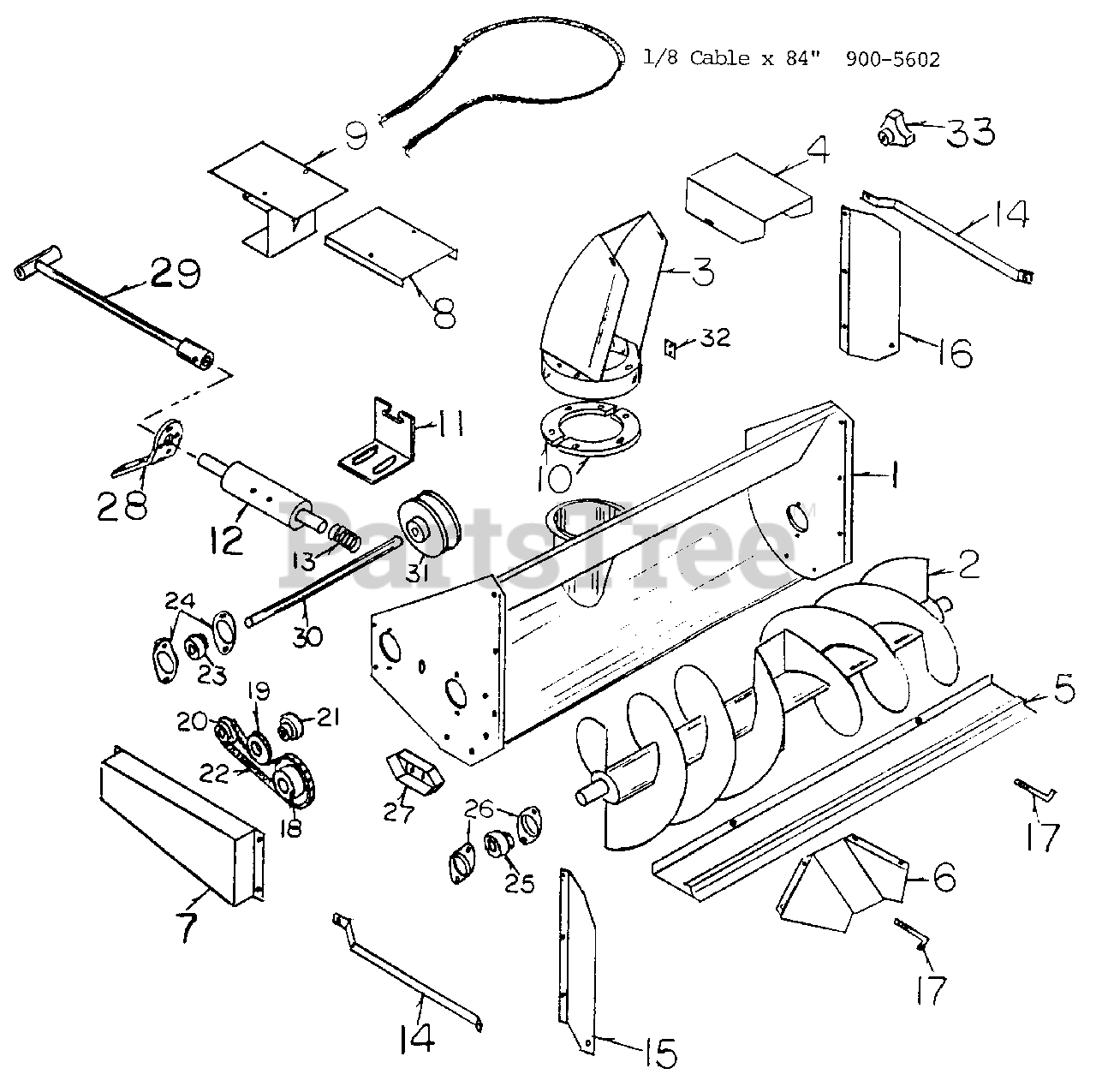

FR-12 (136-002-190) - White Outdoor Front-Mount Riding Mower (1986) Snow Blower Assembly Parts Diagram

Front-Mount Riding Mower

Snow Blower Assembly Parts Diagram

1

WD-430-0000

Snow Blower Houslng

$

$

Not available

2

WD-430-0001

Auger

$

$

Not available

3

WD-430-0019

Chute

$

$

Not available

4

WD-430-0001

Snow Deflector

$

$

Not available

$

$

Not available

6

$

$

Not available

7

WD-430-0006

Chain Guard

$

$

Not available

8

WD-430-0007

Belt Guard

$

$

Not available

9

WD-430-0008

Belt Guard

$

$

Not available

10

$

$

Not available

11

White Outdoor WD-430-0022

Cable Retainer

$

$

Not available

12

WD-430-0021

Cable Pulley

$

$

Not available

13

WD-900-5600

Spring

$

$

Not available

14

WD-430-0012

Extender Brace

$

$

Not available

15

WD-430-0011

R.H. Extender

$

$

Not available

16

$

$

Not available

17

WD-430-0015

Blade Bolt

$

$

Not available

18

WD-900-1508

Auger Sprocket

$

$

Not available

19

White Outdoor WD-900-1507

Idler Sprocket

$

$

Not available

20

White Outdoor WD-900-1506

Drive Sprocket

$

$

Not available

21

White Outdoor WD-430-0016

Idler Sprocket Bushing

$

$

Not available

$

$

Not available

23

$

$

Not available

24

White Outdoor WD-900-3508

3/4" Bearing Flange
(Superseded to 941-0311)

$

$

Not available

25

White Outdoor WD-900-3512

1" Bearing
(Superseded to 741-0303)

$114.99

$

In Stock, only 2 left!

0

26

White Outdoor WD-900-3511

1" Bearing Flange
(Superseded to 741-0242)

$11.99

$

In Stock, only 4 left!

0

$

$

Not available

28

WD-430-0021

Cable Pulley Support

$

$

Not available

29

WD-430-0024

Handle

$

$

Not available

30

WD-430-0018

Shaft

$

$

Not available

$

$

Not available

32

WD-430-0025

Cable Clamp

$

$

Not available

$

$

Not available
