FR-12 (136-002-190) - White Outdoor Front-Mount Riding Mower (1986) Base Assembly Parts Diagram

Front-Mount Riding Mower

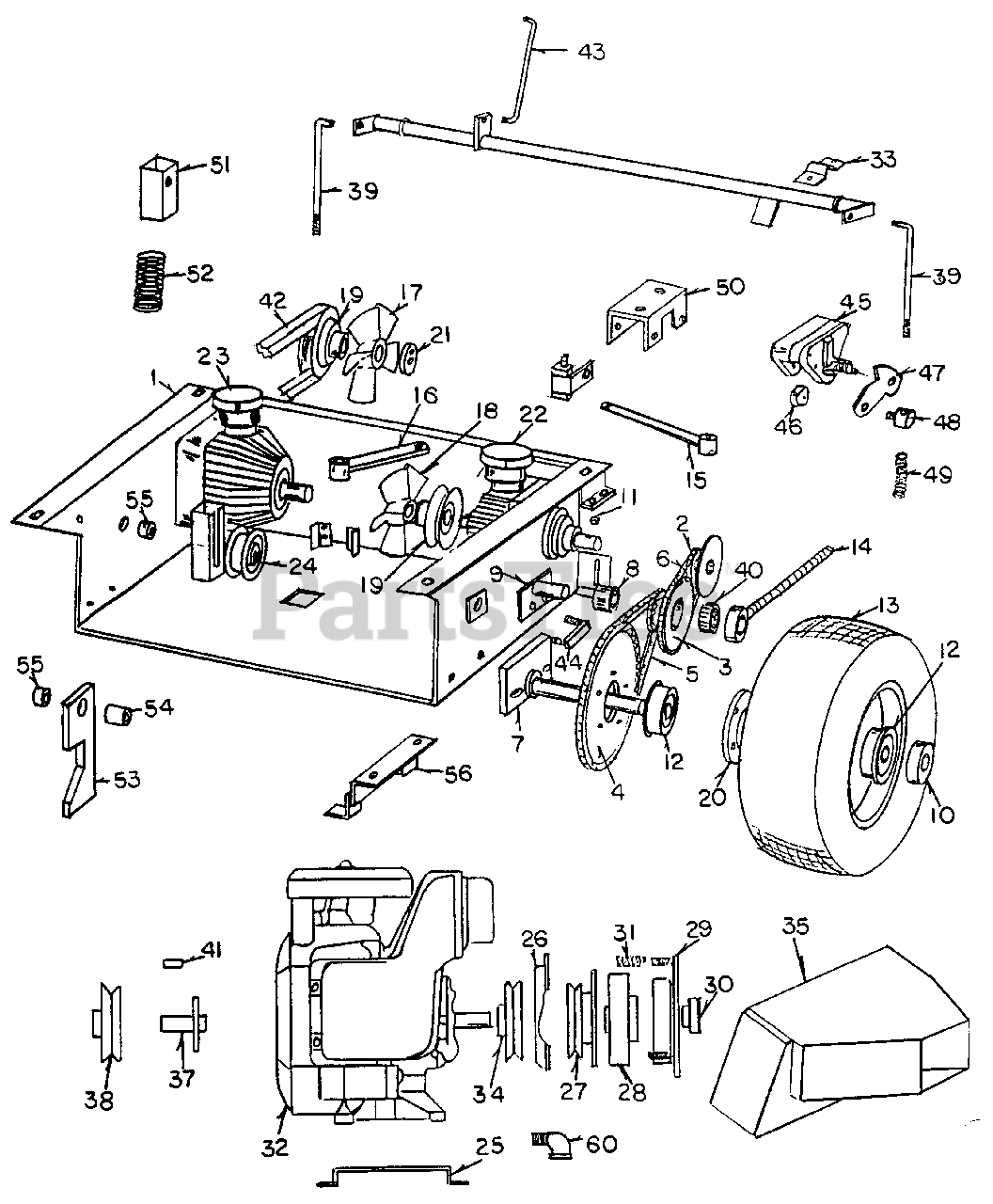

Base Assembly Parts Diagram

  • Title

1

WD-111-0000

G Base

$

$

Not available

2

White Outdoor WD-901-1505

Sprocket w/ Disc Brake

$

$

Not available

3

White Outdoor WD-901-1501

Primary Drive Sprocket

Note: (FR-11,12,18)

$

$

Not available

White Outdoor WD-901-1504

Primary Drive Sprocket
(Superseded to WD-C38539)

Note: (FR-18C)

$

$

Not available

4

White Outdoor WD-901-1502

Final Drive Sprocket

Note: (FR-11,12,18)

$

$

Not available

White Outdoor WD-901-1503

Final Drive Sprocket

Note: (FR-18C)

$

$

Not available

5

White Outdoor WD-900-1007

Final Drive Chain

Note: (FR-11,12,18)

$

$

Not available

WD-900-1010

Final Drive Chain

Note: (FR-18C)

$

$

Not available

6

White Outdoor WD-900-1008

Primary Drive Chain

Note: (FR 11,12,18)

$

$

Not available

White Outdoor WD-900-1012

Primary Drive Chain

Note: (FR-18C)

$

$

Not available

7

White Outdoor WD-100-0001

Drive Wheel Axle

Note: (FR-11,12,18)

$

$

Not available

White Outdoor WD-120-0001

Drive Wheel Axle

Note: (FR-18C)

$

$

Not available

8

White Outdoor WD-900-3500

Short Idler Sprocket Bearing
(Superseded to 741-0665)

$21.99

$

In Stock, only 2 left!

0

9

White Outdoor WD-100-0002

Idler Sprocket Shaft
(Superseded to WD-C38005)

$

$

Not available

10

White Outdoor WD-900-5510

Drive Axle Set Collar

$

$

Not available

11

White Outdoor WD-900-4508

Transmission Key
(Superseded to 914-0112)

$

$

Not available

12

White Outdoor WD-900-3501

Drive Wheel Bearing

$

$

Not available

13

WD-900-4011

Drive Wheel Assembly

Note: (FR-11,12)

$

$

Not available

White Outdoor WD-900-4012

Drlve Wheel Assembly

Note: (FR-18)

$

$

Not available

White Outdoor WD-900-4013

Drive Wheel Assembly

Note: (FR-18C)

$

$

Not available

14

White Outdoor WD-100-0017

Support Collar
(Superseded to WD-C37998)

$

$

Not available

15

WD-901-4506

Transmission Arm L.H.

$

$

Not available

16

WD-901-4507

Transmission Arm R.H.

$

$

Not available

17

White Outdoor WD-900-4500

Transmission Fan R.H.

$

$

Not available

18

White Outdoor WD-900-4501

Transmission Fan L.H.

$

$

Not available

19

White Outdoor WD-900-2500

Transmisdon Pulley

$

$

Not available

20

White Outdoor WD-900-4009

Wheel Hub

Note: (FR-11,12,18)

$

$

Not available

White Outdoor WD-900-4010

Wheel Hub

Note: (FR-18C)

$

$

Not available

21

WD-901-4509

Transmission Washer

$

$

Not available

22

White Outdoor WD-900-4504

Transmission L.H.
(Superseded to WD-C47003P)

$

$

Not available

23

White Outdoor WD-900-4505

Transmission R.H.

$

$

Not available

24

White Outdoor WD-900-2501

Idler Pulley
(Superseded to WD-C38864)

$

$

Not available

25

White Outdoor WD-101-0001

11 HP Adapter Plate

$

$

Not available

26

White Outdoor WD-900-5582

Clutch Brake

$

$

Not available

27

White Outdoor WD-900-5583

Clutch Armature

$

$

Not available

28

White Outdoor WD-900-5584

Clutch Rotor
(Superseded to WD-C37551)

$

$

Not available

29

White Outdoor WD-900-5585

Clutch Coil
(Superseded to 759-3541)

$

$

Not available

30

White Outdoor WD-111-0020

Clutch Retainer

$

$

Not available

31

White Outdoor WD-900-5586

Clutch Spring

$

$

Not available

32

WD-900-5000

Briggs/Stratton 11 HP

$

$

Not available

WD-900-5003

Briggs/Stratton 12.5HP

$

$

Not available

WD-900-5001

Briggs/Stratton 16 HP

$

$

Not available

WD-900-5002

Briggs/Stratton 18 HP

$

$

Not available

33

White Outdoor WD-111-0004

Brake Cross Rod Bearing

$

$

Not available

34

White Outdoor WD-900-2527

Transmission Drive Pulley

$

$

Not available

35

WD-101-0002

Air Duct

Note: (FR-ll)

$

$

Not available

White Outdoor WD-111-0001

Air Duct

Note: (FR-12,18,18C)

$

$

Not available

WD-111-0017

Brake Cross Rod

$

$

Not available

37

White Outdoor WD-100-0013

Shaft

$

$

Not available

38

White Outdoor WD-900-2503

Engine Pulley

$

$

Not available

39

White Outdoor WD-111-0007

Caliper Rod

$

$

Not available

40

White Outdoor WD-900-3502

Long Idler Sprocket Bearing

$

$

Not available

41

White Outdoor WD-100-0014

Key Stock
(Superseded to 714-0128)

$4.99

$

In Stock, Qty 6

0

42

White Outdoor WD-900-3000

Transmission Belt

$

$

Not available

43

WD-111-0016

Brake Rod

$

$

Not available

44

White Outdoor WD-100-0016

Bolt Bar

$

$

Not available

45

WD-900-5587

Brake Caliper

$

$

Not available

46

White Outdoor WD-900-5567

Brake Pad

$

$

Not available

47

White Outdoor WD-900-5565

Caliper Lever L.H.

$

$

Not available

White Outdoor WD-900-5567

Caliper Lever R.H.

$

$

Not available

48

White Outdoor WD-111-0014

Caliper Rod Collar

$

$

Not available

49

White Outdoor WD-900-5568

Caliper Spring

$

$

Not available

50

White Outdoor WD-900-5588

Caliper Bracket

$

$

Not available

51

White Outdoor WD-111-0019

Spring Loaded Idler Mount

$

$

Not available

52

White Outdoor WD-900-5580

Spring

$

$

Not available

53

White Outdoor WD-111-0023

Forward Nose Down Lock

$

$

Not available

54

White Outdoor WD-300-0013

Bushing, Long
(Superseded to WD-C37586)

$

$

Not available

55

WD-300-0013-S

Bushing, Short

$

$

Not available

56

WD-111-0024

Electric Clutch Stop

$

$

Not available

White Outdoor WD-900-2029

Park Brake Switch

$

$

Not available

60

WD-900-5604

3/8" Elbow

$

$

Not available
