FR-12 (132-002-190) - White Outdoor Front-Mount Riding Mower (1992) Body Assembly Parts Diagram

Front-Mount Riding Mower

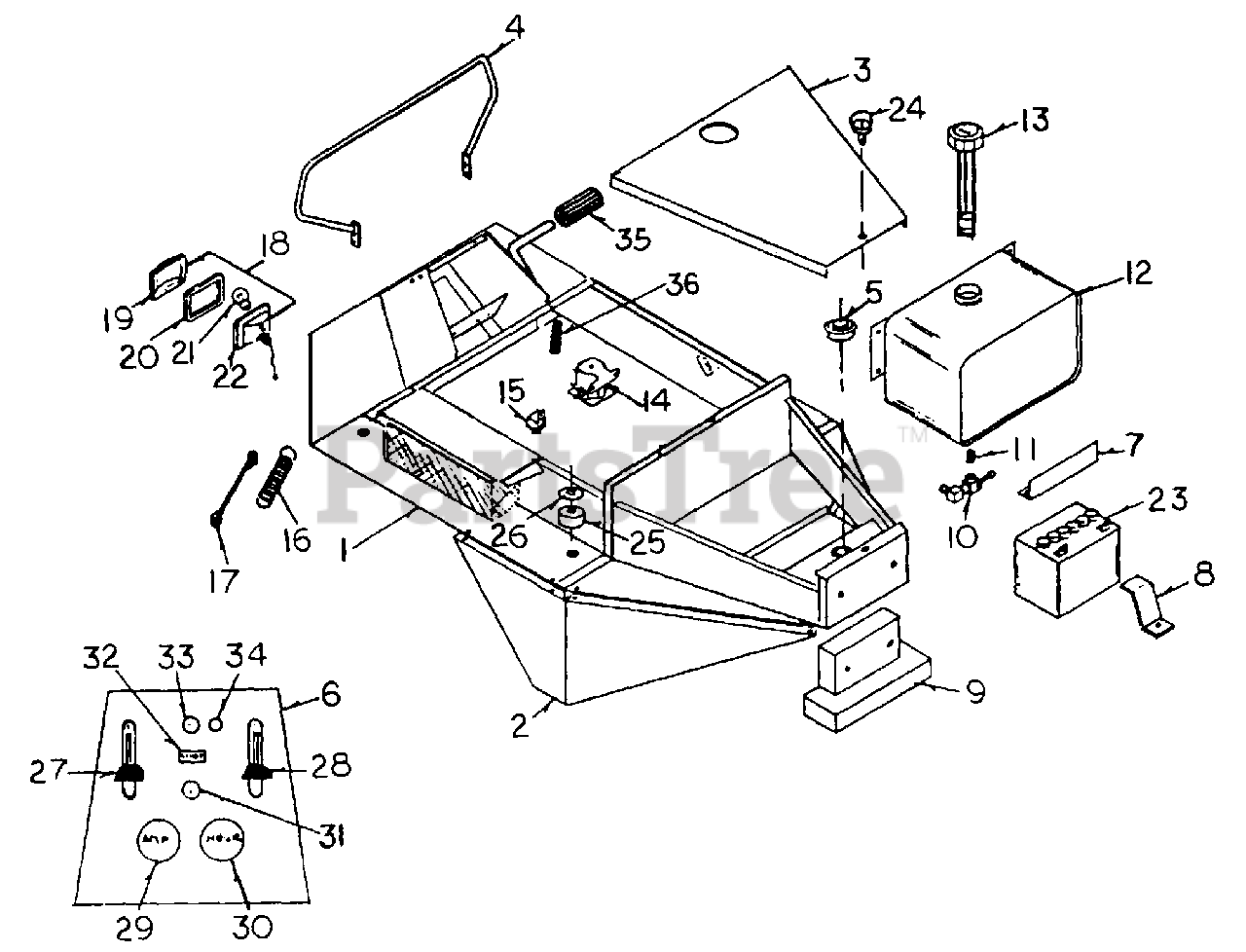

Body Assembly Parts Diagram

1

WD-201-0000

Body

$

$

Not available

2

White Outdoor WD-201-0016

Fender, LH

Note: (Shown)

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

7

White Outdoor WD-200-0019

Hold Down, Battery

$

$

Not available

8

White Outdoor WD-200-0021

Battery Post Protector

$

$

Not available

9

White Outdoor WD-230-0002

Tail Weight

Note: (Optional)

$

$

Not available

10

White Outdoor WD-900-5513

Shutoff Valve, Fuel

$

$

Not available

11

White Outdoor WD-900-5706

Nipple, 1/8" x Close

$

$

Not available

$

$

Not available

13

White Outdoor WD-900-5561

Fuel Tank Cap w/Gauge

$

$

Not available

$

$

Not available

15

White Outdoor WD-900-2037

Relay
(Superseded to WD-C37515)

$

$

Not available

16

$

$

Not available

17

White Outdoor WD-900-5518

Deck Lift Cable

$

$

Not available

18

White Outdoor WD-900-2014

Light assembly

$

$

Not available

19

White Outdoor WD-900-2024

Lens
(Superseded to WD-C32178)

$

$

Not available

20

WD-900-2068

Gasket

$

$

Not available

21

White Outdoor WD-900-2025

Bulb
(Superseded to 925-0963)

$7.49

$

In Stock, Qty 5

0

$

$

Not available

23

WD-900-2060

Battery

$

$

Not available

24

$

$

Not available

25

White Outdoor WD-900-5509

Rubber Body Mount

$

$

Not available

26

White Outdoor WD-200-0015

Body Mount Washer

$

$

Not available

27

$

$

Not available

28

White Outdoor WD-900-5605

Throttle Cable

$

$

Not available

$

$

Not available

$

$

Not available

31

White Outdoor WD-900-2003

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

32

White Outdoor WD-900-2027

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

33

White Outdoor WD-900-2028

Clutch Switch
(Superseded to 925-3022)

$54.99

$

In Stock, only 2 left!

0

$

$

Not available

35

White Outdoor WD-900-5563

Brake Pedal Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

$

$

Not available
