FR-12 (131-002-190) - White Outdoor Front-Mount Riding Mower (1991) 42" Deck Parts Parts Diagram

Front-Mount Riding Mower

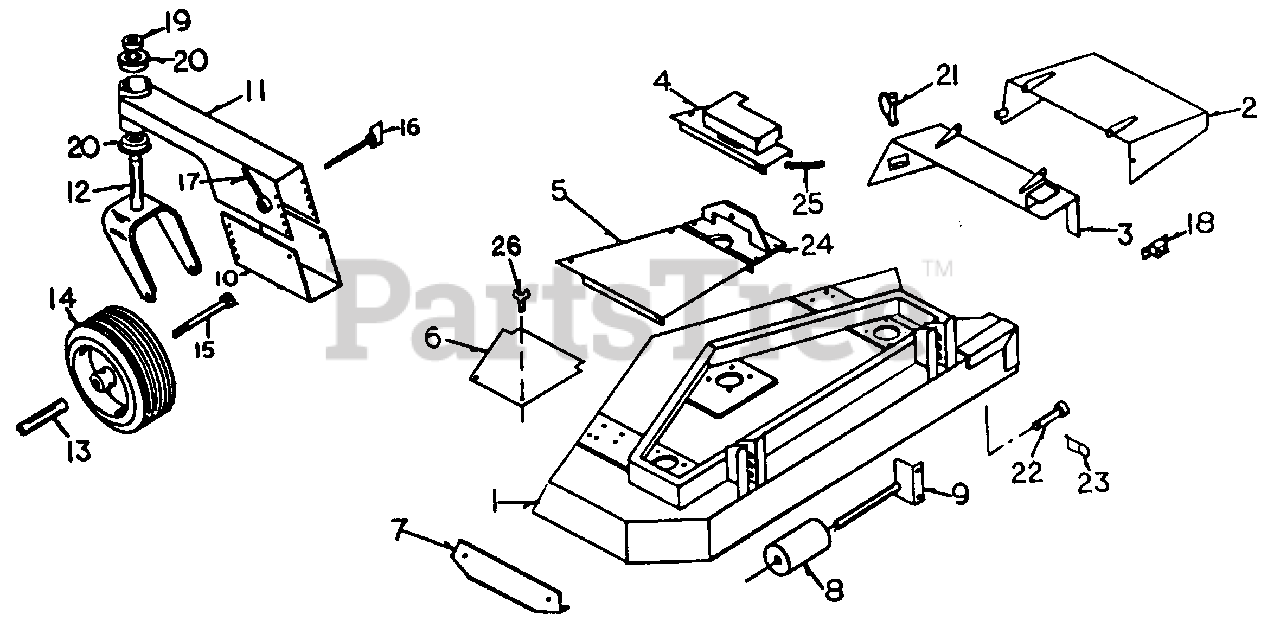

42" Deck Parts Parts Diagram

  • Title

1

WD-310-0000

Deck

$

$

Not available

2

White Outdoor WD-320-0015

Foot Guard

$

$

Not available

3

White Outdoor WD-320-0016

Foot Guard Mount

$

$

Not available

4

White Outdoor WD-310-0002

Pulley Cover

$

$

Not available

5

White Outdoor WD-310-0003

Center Cover

$

$

Not available

6

White Outdoor WD-300-0001

Cover, LH

$

$

Not available

7

White Outdoor WD-310-0007

Shoe, LH

$

$

Not available

8

White Outdoor WD-900-5559

Anti-scalp Roller

$

$

Not available

9

White Outdoor WD-300-0038

Shaft & Bracket

$

$

Not available

10

White Outdoor WD-300-0044

Gauge Wheel Mount Bracket

$

$

Not available

11

White Outdoor WD-300-0043

Gauge Wheel Mount

$

$

Not available

12

WD-320-0018

Fork

$

$

Not available

13

White Outdoor WD-320-0008

Axle

$

$

Not available

14

White Outdoor WD-900-4007

Cauge Wheel Assembly

$

$

Not available

White Outdoor WD-900-3510

Wheel Assembly Bearing
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

15

White Outdoor WD-900-6036

Hex Bolt, 1/4-20 x 4 1/2", GR5

$

$

Not available

16

White Outdoor WD-900-6096

Wing Bolt

$

$

Not available

17

White Outdoor WD-900-6092

Handle Nut

$

$

Not available

18

White Outdoor WD-900-2044

10 Amp Circuit Breaker

$

$

Not available

19

White Outdoor WD-900-5510

Set Collar, l"

$

$

Not available

20

White Outdoor WD-900-3501

Bearing, 1"

$

$

Not available

21

White Outdoor WD-900-5615

Fas-tatch Pin

$

$

Not available

22

White Outdoor WD-900-5519

Deck Pin

$

$

Not available

23

White Outdoor WD-900-5520

Hair Pin Cotter

$

$

Not available

24

WD-310-0004

Deck Mount

$

$

Not available

25

White Outdoor WD-900-5562

Spring

$

$

Not available

26

White Outdoor WD-900-6043

Thumb Screw, 1/4-20 x 1/2"

$

$

Not available
