FR-11 (137-001-190) - White Outdoor Front-Mount Riding Mower (1988) 52" Mower Deck (0052-T) Parts Diagram

Front-Mount Riding Mower

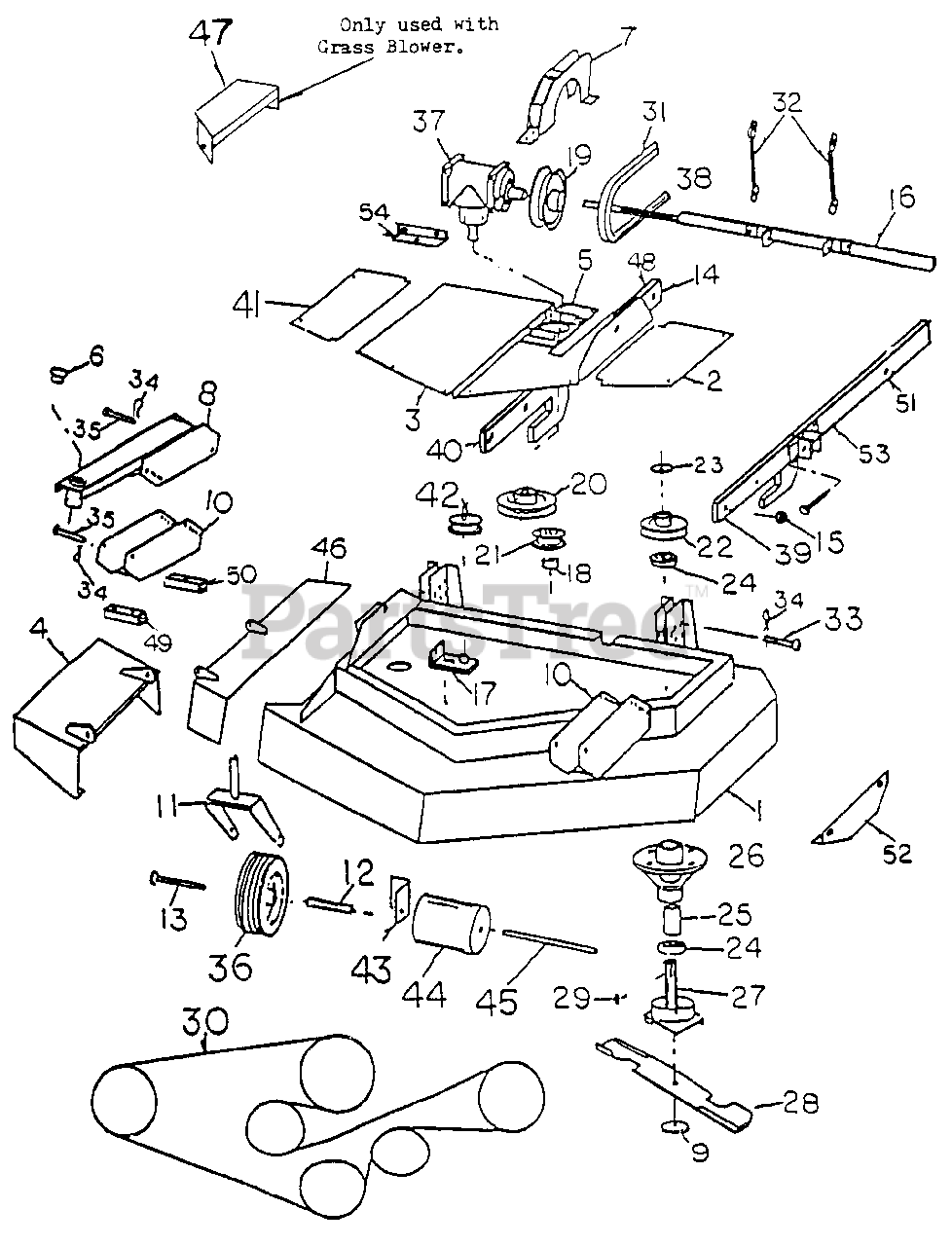

52" Mower Deck (0052-T) Parts Diagram

  • Title

1

White Outdoor WD-320-0000

Mower Deck

$

$

Not available

2

White Outdoor WD-320-0001

Cover

Note: (small)

$

$

Not available

3

White Outdoor WD-320-0002

Cover

Note: (large)

$

$

Not available

4

White Outdoor WD-320-0001

Foot Guard

$

$

Not available

5

White Outdoor WD-320-0004

Gear Box Mount

$

$

Not available

6

White Outdoor WD-900-3507

Gage Wheel Bushing

$

$

Not available

7

White Outdoor WD-311-0002

Belt Guard

$

$

Not available

8

White Outdoor WD-320-0005

Gage Wheel Mount

$

$

Not available

9

White Outdoor WD-900-5534

Spring Washer

$

$

Not available

10

White Outdoor WD-320-0006

Bracket, Gage Wheel Mount

$

$

Not available

11

WD-320-0007

Fork, Gage Wheel

$

$

Not available

12

White Outdoor WD-320-0008

Axle, Gage Wheel

$

$

Not available

13

Gage Wheel Bolt

$

$

Not available

14

WD-301-0024

Deck Lift Arm Back Adjustable

$

$

Not available

15

White Outdoor WD-300-0013

Bushing, Deck Lift Arm
(Superseded to WD-C37586)

$

$

Not available

16

White Outdoor WD-300-0014

Cross Bar

$

$

Not available

17

White Outdoor WD-330-0012

Belt Tightener

$

$

Not available

18

White Outdoor WD-300-0016

Spacer, Idler
(Superseded to WD-C37937)

$

$

Not available

19

White Outdoor WD-900-2525

Pulley, Gear Box
(Superseded to WD-C37892)

Note: (In-Put)

$

$

Not available

20

White Outdoor WD-900-2510

Pulley, Gear Box

Note: (Out-Put)

$

$

Not available

21

White Outdoor WD-900-2522

Pulley, Idler
(Superseded to WD-C45655)

Note: (Small)

$

$

Not available

22

White Outdoor WD-900-2511

Pulley, Spindle
(Superseded to WD-C37931)

$

$

Not available

23

White Outdoor WD-300-0017

Washer, Spindle

$

$

Not available

24

White Outdoor WD-900-3506

Bearing, Spindle
(Superseded to WD-C42786P)

$88.99

$

In Stock, only 1 left!

0

25

White Outdoor WD-300-0027

Spacer, Spindle

$

$

Not available

26

White Outdoor WD-300-0025

Housing, Spindle

$

$

Not available

27

White Outdoor WD-300-0026

Shaft, Spindle
(Superseded to WD-C37883)

$

$

Not available

28

White Outdoor WD-900-5528

Blade
(Superseded to WD-C38042)

$

$

Not available

29

White Outdoor WD-300-0021

Key, Spindle
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0

30

White Outdoor WD-900-3005B

Deck Belt

$

$

Not available

31

White Outdoor WD-900-3004

Drive Blet

$

$

Not available

32

White Outdoor WD-900-5518

Cable, Deck

$

$

Not available

33

White Outdoor WD-900-5519

Pins, Deck

$

$

Not available

34

White Outdoor WD-900-5520

Hair Pin

$

$

Not available

35

White Outdoor WD-900-5536

Pins, Gage Wheel

$

$

Not available

36

White Outdoor WD-900-4020

Gage Wheel

$

$

Not available

37

White Outdoor WD-900-5535

Gear Box

$

$

Not available

38

WD-300-0022

Cross Bar Pin

$

$

Not available

39

WD-300-0023

L.H.1 Deck Lift Arm Front Adjustable

$

$

Not available

40

WD-300-0023

R.H.1 Deck Lift Arm Front Adjustable

$

$

Not available

41

WD-320-0009

Cover, Right Hand Side

$

$

Not available

42

White Outdoor WD-900-2521

Pulley, Idler
(Superseded to WD-C37933)

Note: (Large)

$104.99

$

Usually ships in 3-6 days

0

43

WD-300-0037

Rollar Bracket

$

$

Not available

44

White Outdoor WD-900-5559

Rubber Rollar

$

$

Not available

45

White Outdoor WD-300-0038

Rollar Shaft

$

$

Not available

46

White Outdoor WD-320-0010

FOOT CUARD 0 MOUNT

$

$

Not available

47

White Outdoor WD-320-0011

Cover, Deck Blower Pulley

$

$

Not available

48

WD-330-0024

RH.1 Deck Lift Arm Back Adjustable

Note: (1600C 1800C)

$

$

Not available

49

White Outdoor WD-320-0012

Gage Wheel Bracket Spacer 2 Hole

$

$

Not available

50

WD-320-0013

Gage Wheel Bracket Spacer 1 Hole

$

$

Not available

51

WD-330-0024

LH.1 Deck Lift Arm Back Adjustable

Note: (1600C 1800C)

$

$

Not available

52

White Outdoor WD-320-0014

Shoe, Left Hande Side

$

$

Not available

53

WD-320-0024

LH.1 Deck Lift Arm Back Adjustable

Note: (1600 1800)

$

$

Not available

54

White Outdoor WD-310-0006

Gearbox Mount Angle

$

$

Not available
