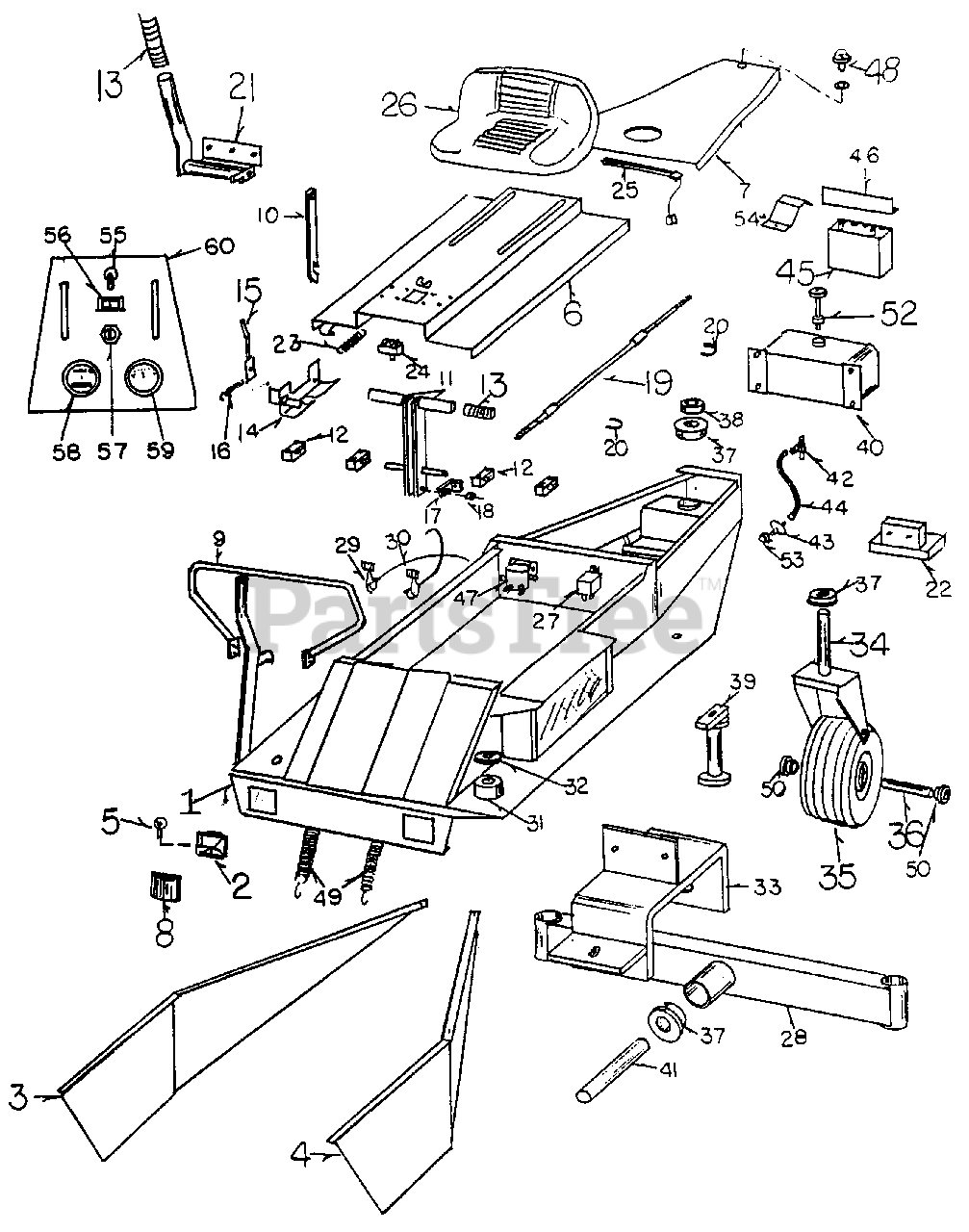

FR-11 (137-001-190) - White Outdoor Front-Mount Riding Mower (1987) Body Assembly Parts Diagram

Front-Mount Riding Mower

Body Assembly Parts Diagram

  • Title

1

WD-201-0000

Body

$

$

Not available

2

White Outdoor WD-900-2026

Lamp

$

$

Not available

3

White Outdoor WD-201-0008

Fender R.H.

$

$

Not available

4

White Outdoor WD-201-0007

Fender L.H.

$

$

Not available

5

White Outdoor WD-900-2025

Bulb
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

6

White Outdoor WD-201-0004

Lid

$

$

Not available

7

White Outdoor WD-201-0009

Back Cover

$

$

Not available

8

White Outdoor WD-900-2024

Lens
(Superseded to WD-C32178)

$

$

Not available

9

White Outdoor WD-200-0007

Guard Rail

$

$

Not available

10

White Outdoor WD-200-0008

Lid Prop

$

$

Not available

11

White Outdoor WD-200-0009

Steering Lever

$

$

Not available

12

White Outdoor WD-200-0010

Bearing Block Steering Lever

$

$

Not available

13

White Outdoor WD-900-5500

Handle Grip
(Superseded to WD-C37631)

$

$

Not available

14

White Outdoor WD-201-0010

Lever Lock

$

$

Not available

15

White Outdoor WD-200-0012

Latch, Lever Lock

$

$

Not available

16

White Outdoor WD-900-5501

Sprlng, Lever Lock

$

$

Not available

17

White Outdoor WD-200-0013

Steering cable end
(Superseded to WD-C37614)

$

$

Not available

18

White Outdoor WD-200-0014

Bushing, cable end
(Superseded to WD-C42895)

$

$

Not available

19

White Outdoor WD-900-5502

Steering cable

$

$

Not available

20

White Outdoor WD-900-5503

Clamp, steering cable
(Superseded to WD-C37616)

$

$

Not available

21

WD-201-0011

Brake lever lock

$

$

Not available

22

White Outdoor WD-230-0002

Tail Weight

$

$

Not available

23

White Outdoor WD-900-5562

Spring

$

$

Not available

24

White Outdoor WD-900-2029

Safety Switch

$

$

Not available

25

White Outdoor WD-900-2001

Seat Switch

$

$

Not available

26

White Outdoor WD-900-5506

Seat

$

$

Not available

White Outdoor WD-900-5597

Delux Seat

$

$

Not available

27

White Outdoor WD-900-2037

Electric Cluth Relay
(Superseded to WD-C37515)

$

$

Not available

28

White Outdoor WD-230-0004

Dual Tail Wheel Axle

$

$

Not available

29

White Outdoor WD-900-5595

Throttle Cable

Note: (11 HP Briggs)

$

$

Not available

White Outdoor WD-900-5507

Throttle Cable
(Superseded to WD-C38858)

$

$

Not available

30

White Outdoor WD-900-5596

Choke Cable

Note: (11 Hp Briggs)

$

$

Not available

White Outdoor WD-900-5508

Choke Cable

$

$

Not available

31

White Outdoor WD-900-5509

Rubber Body Mount

$

$

Not available

32

White Outdoor WD-200-0015

Body Mount Washer

$

$

Not available

33

White Outdoor WD-230-0005

Dual Tail Wheel Mt.

$

$

Not available

34

White Outdoor WD-210-0001

Tail Wheel Fork

Note: (FR-18)

$

$

Not available

White Outdoor WD-230-0001

Tail Wheel Fork

Note: (FR-18C)

$

$

Not available

WD-200-0016

Tail Wheel Fork

Note: (FR-11,12)

$

$

Not available

White Outdoor WD-230-0007

Dual Tail Wheel Fork

$

$

Not available

35

White Outdoor WD-900-4014

Tail Wheel Assy.

Note: (FR-18)

$

$

Not available

White Outdoor WD-900-4017

Tail Wheel Assy.

Note: (FR-18C)

$

$

Not available

White Outdoor WD-900-4004

Tail Wheel Assy.

Note: (FR-11,12)

$

$

Not available

White Outdoor WD-900-4010

Tail Wheel Assy.

$

$

Not available

36

White Outdoor WD-200-0017A

Tail Wheel Axle

Note: (FR-18)

$

$

Not available

White Outdoor WD-230-0017

Tail Wheel Axle

Note: (FR-18C)

$

$

Not available

White Outdoor WD-200-0017

Tail Wheel Axle
(Superseded to WD-C37915)

Note: (FR-11,12) (Dual Tail Wheel Axle)

$

$

Not available

37

White Outdoor WD-900-3503

Tail Wheel Fork Bearing
(Superseded to 941-3002)

$35.99

$

In Stock, Qty 15

0

38

White Outdoor WD-900-5510

Set Collar

$

$

Not available

39

White Outdoor WD-230-0006

Dual Tail Wheel Tube Block

$

$

Not available

40

White Outdoor WD-900-5533

Fuel Tank

$

$

Not available

41

White Outdoor WD-230-0008

Pivot Axle

$

$

Not available

42

White Outdoor WD-900-5513

Fuel Tank Valve

$

$

Not available

43

White Outdoor WD-900-5514

Fuel Filter
(Superseded to BS-298090S)

$

$

Not available

44

White Outdoor WD-900-5515

Fuol Hose

$

$

Not available

45

WD-900-2004

Battery

$

$

Not available

46

White Outdoor WD-200-0019

Hold Down

$

$

Not available

47

White Outdoor WD-900-2005

Solenoid

$

$

Not available

48

White Outdoor WD-900-5522

Dzus Fastener

$

$

Not available

49

White Outdoor WD-900-5516

Deck Spring

$

$

Not available

50

White Outdoor WD-900-3505

Tail Wheel Bearing

$

$

Not available

White Outdoor WD-900-5523

Seat Spacer

$

$

Not available

52

White Outdoor WD-900-5561

Fuel Tank Cap

$

$

Not available

53

White Outdoor WD-900-5525

Fuel Line Clamp
(Superseded to 726-0205)

$3.99

$

In Stock, Qty 18

0

54

White Outdoor WD-200-0021

Battery Post Protector

$

$

Not available

55

White Outdoor WD-900-2028

Clutch Switch
(Superseded to 925-3022)

$54.99

$

In Stock, only 2 left!

0

56

White Outdoor WD-900-2027

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

57

White Outdoor WD-900-2003

I6nltlon Swltch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

58

White Outdoor WD-900-2023

Hour Meter

$

$

Not available

59

White Outdoor WD-900-2002

Amp Meter

$

$

Not available

60

White Outdoor WD-201-0006

Dash Board

$

$

Not available
