FP 250 V (UT-01293-D) - Homelite Pressure Pump Muffler Parts Diagram

Pressure Pump

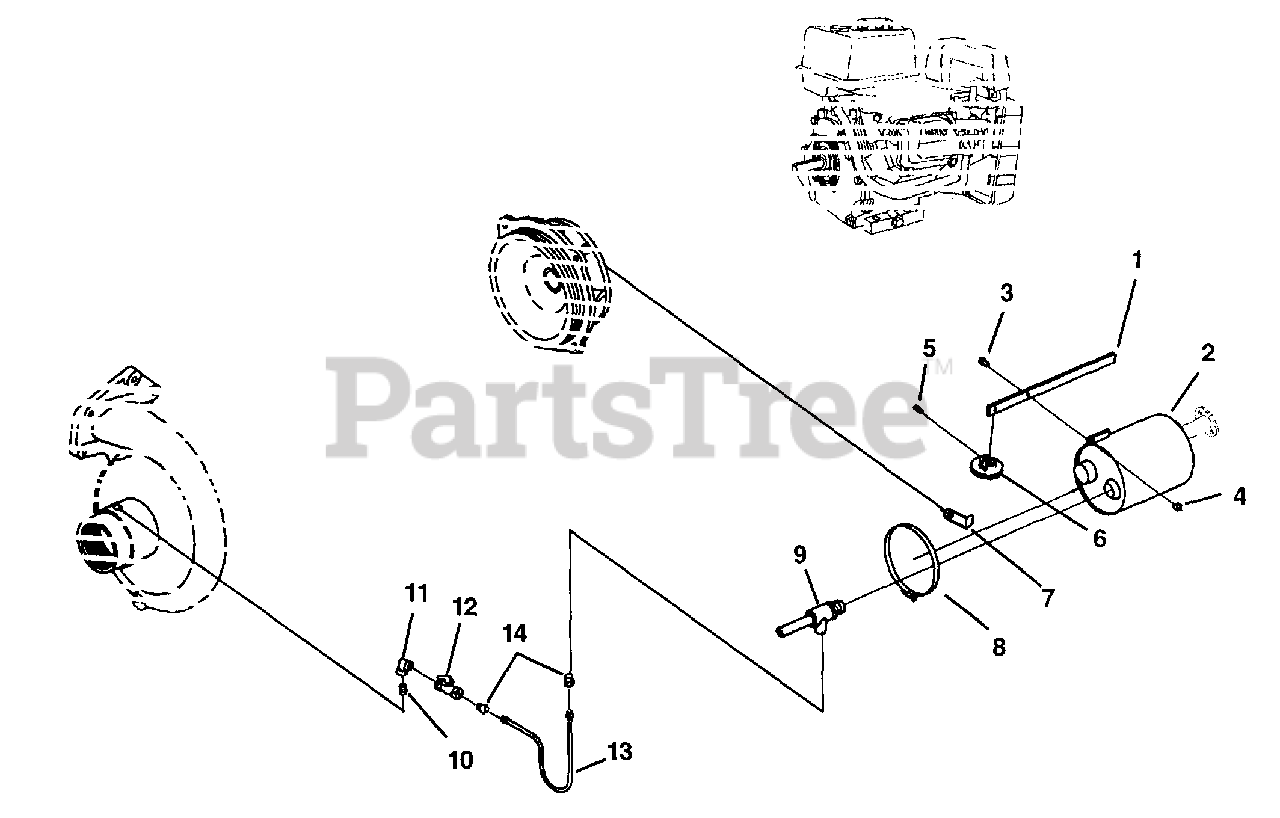

Muffler Parts Diagram

  • Title

1

Homelite 47913

LEVER-Prime

$

$

Not available

2

Homelite PS00235

MUFFLER
(Superseded to UP07039)

$

$

Not available

3

Homelite 80052

SCREW-Hex Hd. (1/4-20 x 3/4)

Note: Tighten until item #1 (Prime Lever) is snug, but free to move.

$

$

Not available

4

Homelite 81204

NUT-Locking Hex

$5.99

$

Usually ships in 3-7 days

0

5

Homelite 66744

PIN-Spirol

$

$

Not available

6

Homelite 479161

VALVE-Flapper

$

$

Not available

7

Homelite PS00255

BRACE-Muffler
(Superseded to UP07215)

$

$

Not available

8

Homelite 54756B

STRAP-Muffler
(Superseded to UP07020)

$17.99

$

Usually ships in 3-7 days

0

9

Homelite 43739

VENTURI-Priming
(Superseded to UP03629)

$545.99

$

Usually ships in 3-7 days

0

10

Homelite 47069

NIPPLE-Close (1/4")

$

$

Not available

11

Homelite 32369

FITTING-Street

$

$

Not available

12

Homelite 43736

VALVE

$

$

Not available

13

Homelite PA00099

LINE-Vacuum

$

$

Not available

14

Homelite 47911

Connector 45° Flare
(Superseded to UP07778)

$16.99

$

Usually ships in 3-7 days

0
