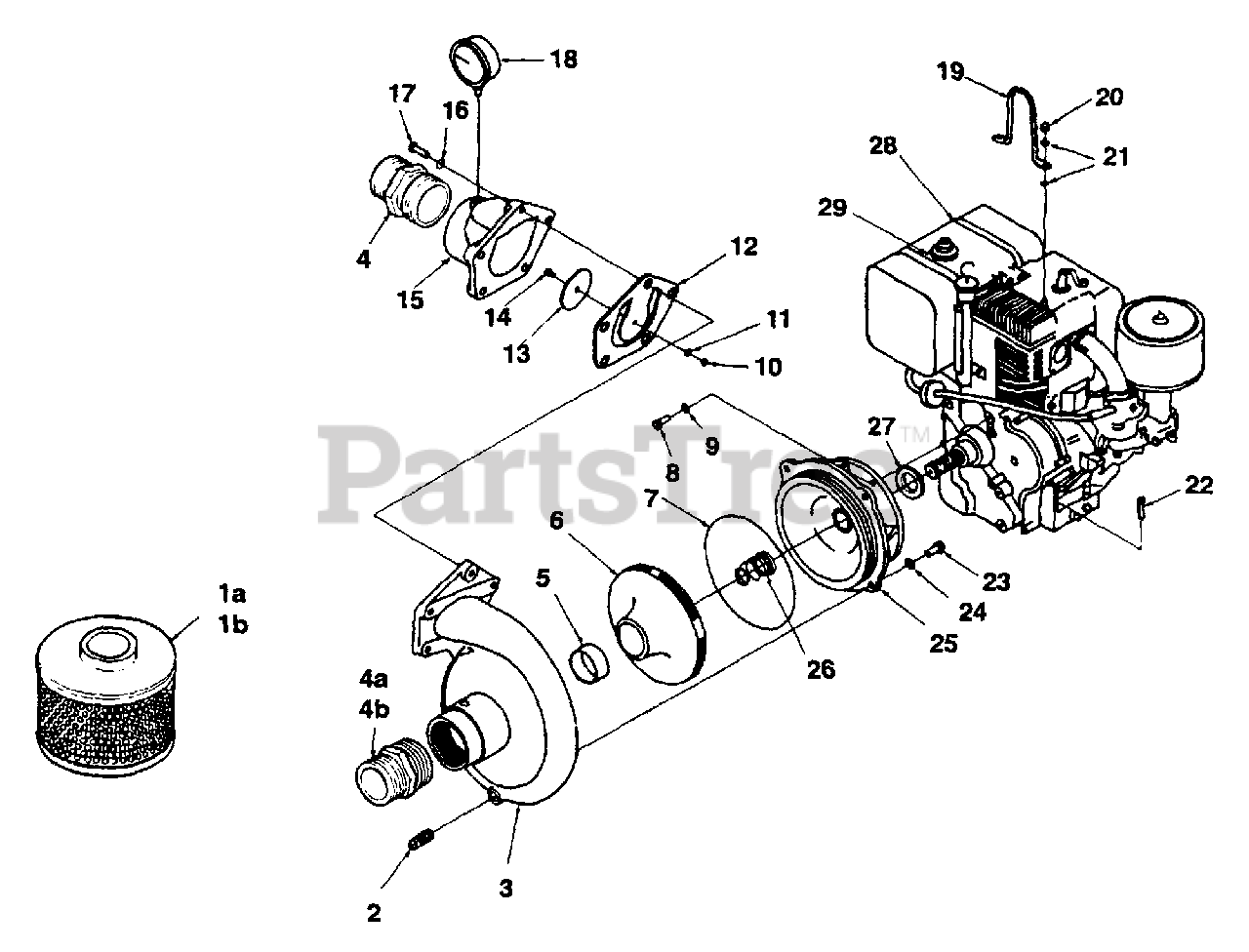

FP 250 (UT-01293-C) - Homelite Pressure Pump Pump Parts Diagram

Pressure Pump

Pump Parts Diagram

  • Title

1A

Homelite 01521

STRAINER

Note: Standard, Thread Size 2 1/2 - 8 NPS

$

$

Not available

1B

Homelite 43742

STRAINER

Note: Optional, Thread Size 2 1/2 - 7 1/2 NH

$

$

Not available

2

Homelite 20629

PLUG - Drain
(Superseded to UP06806)

$

$

Not available

3

Homelite A488431A

PUMP BODY
(Superseded to UP06403)

$

$

Not available

4

UNKNOWN

$

$

Not available

4A

Homelite 43741

NIPPLE

Note: Optional, Thread Size 2 1/2 - 7 1/2 NH x 2 1/2 - 8 NPT

$

$

Not available

4B

Homelite 01464

NIPPLE

Note: Optional, Thread Size 2 1/2 - 11 Whitworth x 2 1/2 - 8 Npt

$

$

Not available

5

Homelite 47447

BEARING

$

$

Not available

6

Homelite A473601

IMPELLER
(Superseded to UP06397)

$

$

Not available

7

Homelite 47468

"O" RING

$

$

Not available

8

Homelite 80095

SCREW - Hex Hd. (3/8-16 x 1)

Note: Torque Specs 240-300 In/Lbs, 27.1-33.9 Nm

$

$

Not available

9

Homelite 84010

WASHER - Flat (3/8)
(Superseded to PS84010)

$

$

Not available

10

Homelite 81225

NUT - Hex (12-24)

$

$

Not available

11

Homelite 48488

WASHER - Flat (#12)
(Superseded to UP06642)

$

$

Not available

12

Homelite 48845

VALVE - Flapper

$

$

Not available

13

Homelite 47361

WEIGHT - Valve

$

$

Not available

14

Homelite 80676

SCREW - Hex Hd. Mach (12-24 x 5/8)

Note: Torque Specs 20-25 In/Lbs, 2.3-2.8 Nm

$

$

Not available

15

Homelite 488441

BODY - Valve
(Superseded to UP08150)

$

$

Not available

16

Homelite 83116

WASHER - 3/8 Collar
(Superseded to UP07172)

$

$

Not available

17

Homelite 82479

SCREW - Socket Hd. (3/8-16 x 2)
(Superseded to UP07301)

Note: Torque Specs 140-160 In/Lbs, 15.8-8.1 Nm

$

$

Not available

18

Homelite 47048

GAUGE - Pressure

$

$

Not available

19

Homelite 47779

EYE - Lifting

$

$

Not available

20

Homelite 81162

NUT - Hex (5/16-18)

$

$

Not available

21

Homelite 840011

WASHER - Flat (5/16)
(Superseded to UP07173)

$

$

Not available

22

Homelite 80288

SCREW - Cap Hex Hd (5/16-18 x 1 3/4)
(Superseded to UP03388)

Note: Torque Specs 160-200 In/Lbs, 18.1-22.6 Nm

$

$

Not available

23

Homelite 80446

SCREW - Cap Hex Hd. (1/2-13 x 1)

Note: Torque Specs 480-600 In/Lbs, 54.2-67.8 Nm

$

$

Currently unavailable

24

Homelite 84035

WASHER - Flat (1/2)

$

$

Not available

25

Homelite 473641

HOUSING - End

$

$

Not available

26

Homelite 47046

SEAL - Shaft

$

$

Not available

27

Homelite 62688

SLINGER
(Superseded to UP06433)

$

$

Not available

28

Homelite 487982A

FUEL TANK

Note: (UT01293 B Only)

$

$

Currently unavailable

29

Homelite 49998

CAP - Tank

Note: (UT01293 B Only)

$

$

Not available
