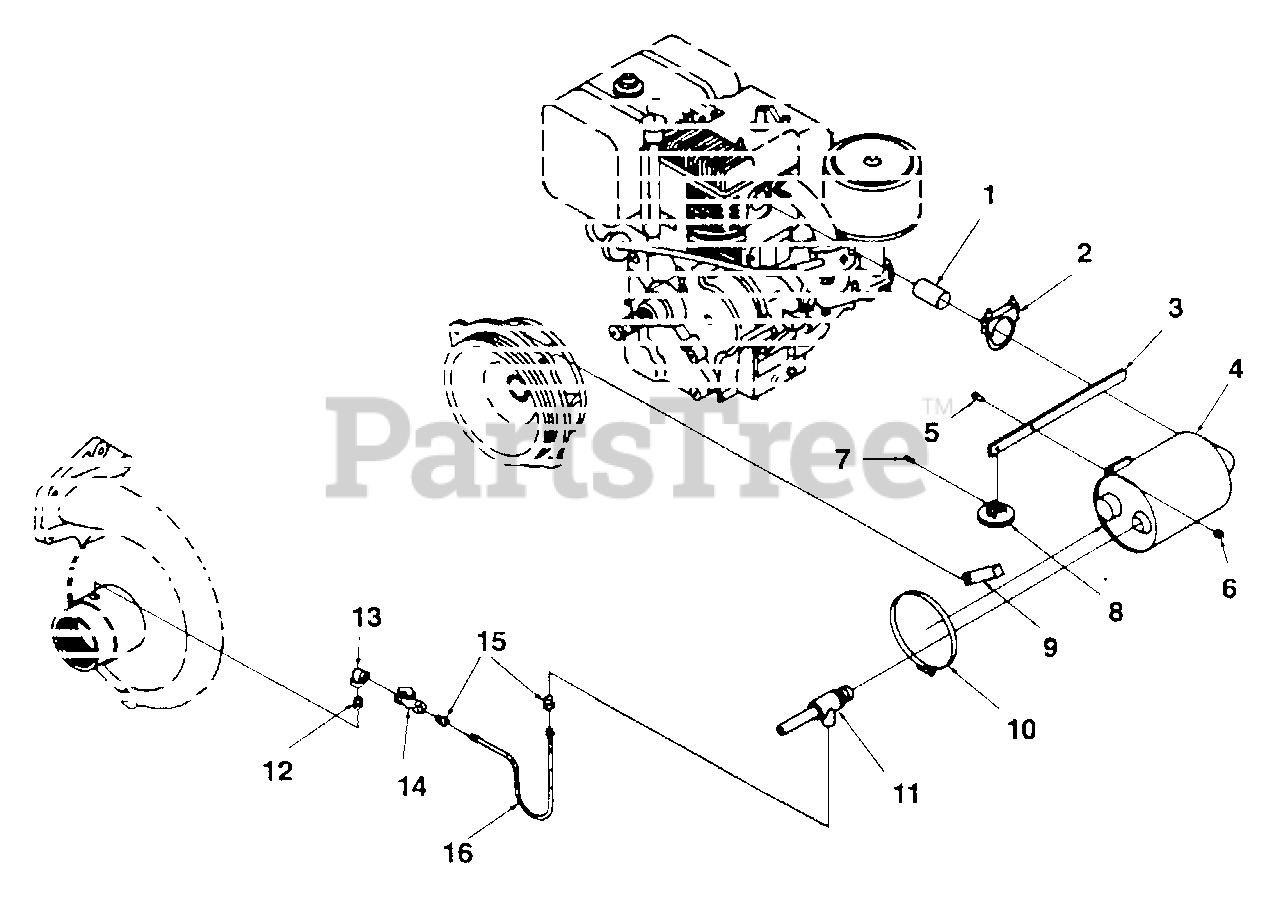

FP 250 (UT-01293-C) - Homelite Pressure Pump Muffler Parts Diagram

Pressure Pump

Muffler Parts Diagram

  • Title

1

Homelite 47786

NIPPLE - Pipe

$

$

Not available

2

Homelite 252691

CLAMP - Muffler

$

$

Not available

3

Homelite 47913

LEVER - Prime

$

$

Not available

4

Homelite 47404

MUFFLER

$

$

Not available

5

Homelite 802181

SCREW - Hex Hd. (1/2-20 x 3/4)
(Superseded to 80052)

Note: Torque Specs. Tighten until Prime Lever is snug, but free to move.

$

$

Not available

6

Homelite 81204

NUT - Locking Hex

$5.99

$

Usually ships in 3-7 days

0

7

Homelite 66744

PIN - Spirol

$

$

Not available

8

Homelite 479161

VALVE - Flapper

$

$

Not available

9

Homelite 47073

BRACE - Muffler

$

$

Not available

10

Homelite 54756B

STRAP - Muffler
(Superseded to UP07020)

$17.99

$

Usually ships in 3-7 days

0

11

Homelite 43739

VENTURI - Priming
(Superseded to UP03629)

$545.99

$

Usually ships in 3-7 days

0

12

Homelite 47069

NIPPLE - Close (1/4")

$

$

Not available

13

Homelite 32369

FITTING - Street

$

$

Not available

14

Homelite 43736

VALVE

$

$

Not available

15

Homelite 47911

CONNECTOR 45ø flare
(Superseded to UP07778)

$16.99

$

Usually ships in 3-7 days

0

16

Homelite A47909

LINE - Vacuum

$

$

Currently unavailable
