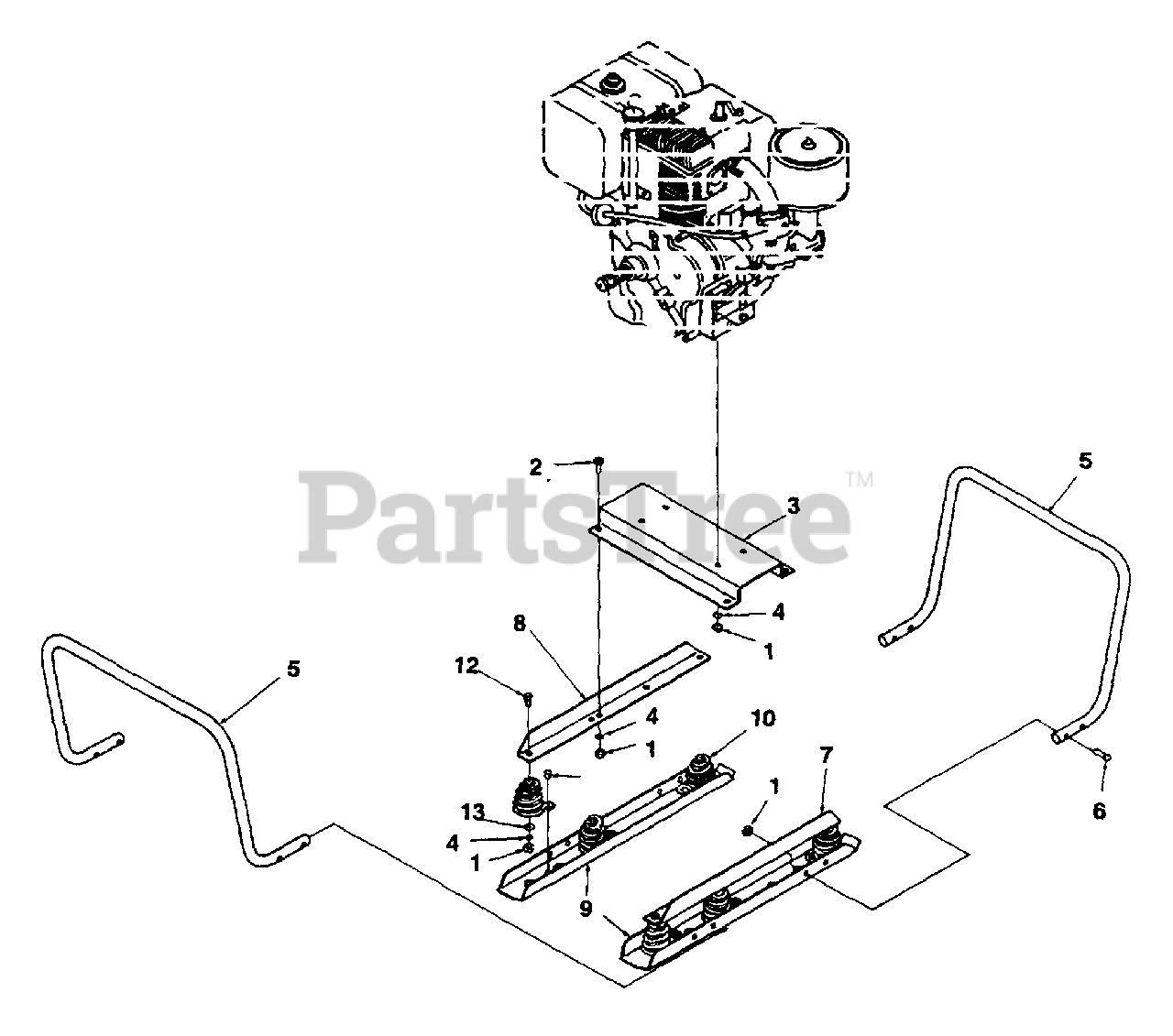

FP 250 (UT-01293-B) - Homelite Pressure Pump Frame Parts Diagram

Pressure Pump

Frame Parts Diagram

  • Title

1

Homelite 81162

NUT - Hex (5/16-18)

$

$

Not available

2

Homelite 80695

SCREW - Mach Hex Hd. (5/16-18 x 3/4)
(Superseded to UP03381)

Note: Torque Specs, 100-110 In/Lbs, 11.3-12.4 Nm

$

$

Not available

3

Homelite 421211A

BRACKET - Pump Engine
(Superseded to UP08577)

$

$

Not available

4

Homelite 83002

WASHER - Lock (5/16)
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

5

Homelite 47366

HANDLE

$

$

Not available

6

Homelite 80087

SCREW - Hex Hd. (5/16-18 x 1 1/2")

Note: Torque Specs, 205-225 In/Lbs, 23.2-25.4 Nm

$

$

Not available

7

Homelite 626612A

ANGLE - Base (left)

$

$

Currently unavailable

8

Homelite 626622A

ANGLE - Base (right)

$

$

Currently unavailable

9

Homelite A62917

SKID

$

$

Not available

10

Homelite 25407

FOOT - Spring

$

$

Not available

?11

Homelite 85025

RIVET

$

$

Not available

12

Homelite 80085

SCREW - Cap Hex Hd. (5/16-18 x 1)

Note: Torque Specs, 205-225 In/Lbs, 23.2-25.4 Nm

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 84046

WASHER - Flat (5/16)

$

$

Not available
