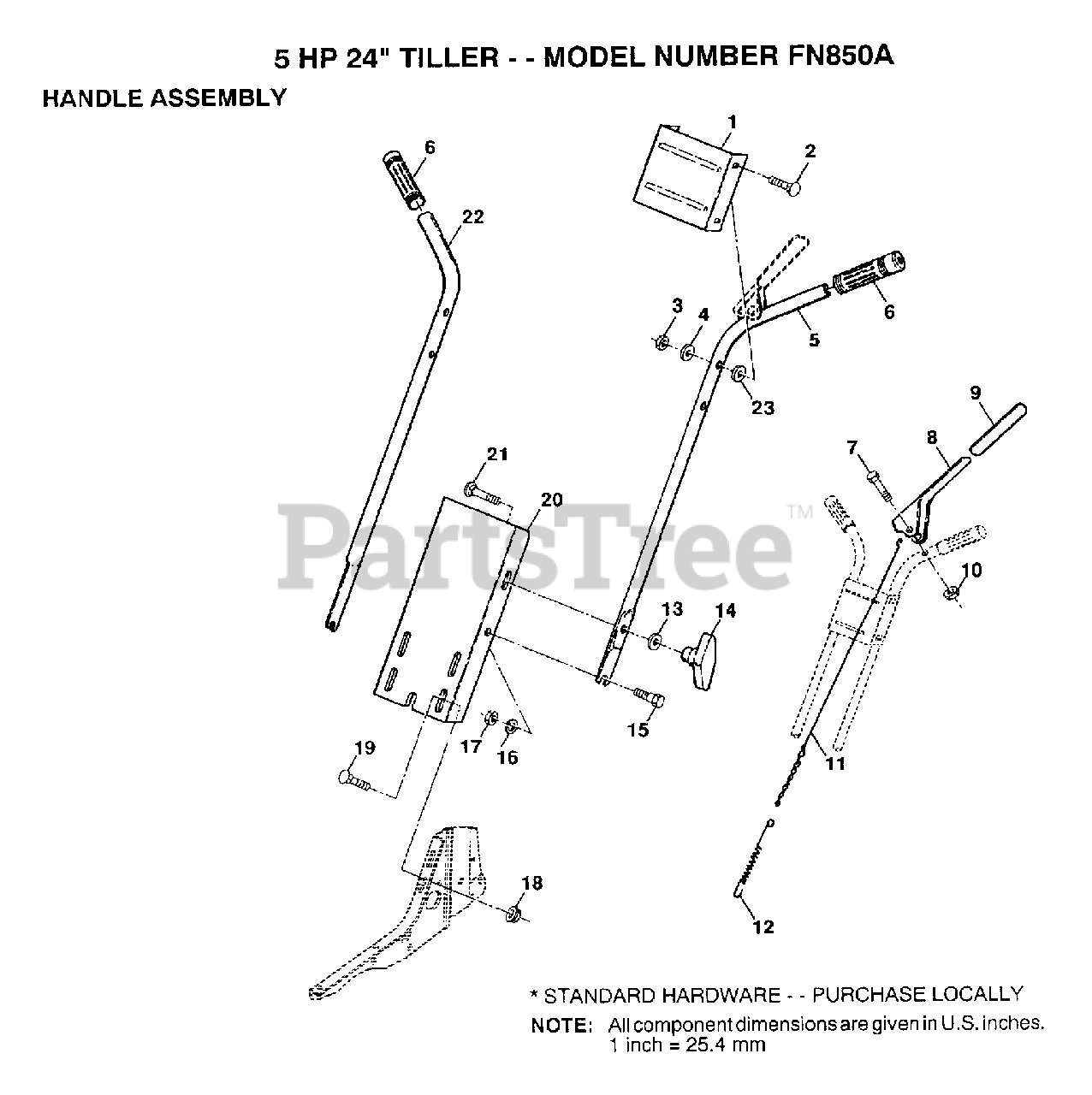

FN 850 A - Roper Rally Tiller HANDLE ASSEMBLY Parts Diagram

Tiller

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Electrolux/AYP 137176X505

HANDLE BRKT
(Superseded to 583675401)

$

$

Not available

2

Electrolux/AYP 72140512

BOLT
(Superseded to 582736101)

$

$

Not available

3

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 2621J

SUB= 154127

$

$

Not available

6

Electrolux/AYP 9266R

SUB= 624A78

$

$

Not available

7

Electrolux/AYP 74760524

BOLT.HEX.5/16-1.5

$2.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 3069J

SUB= 164937
(Superseded to 583014501)

$

$

Not available

9

Electrolux/AYP 8206H

GRIP T
(Superseded to 532008206)

$11.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 1685H

SUB= 68478
(Superseded to 532001685)

$

$

Not available

11

Electrolux/AYP 3067J

SUB= 100382K

$

$

Not available

12

Electrolux/AYP 3070J

SPRING EXT TI
(Superseded to 583731801)

$

$

Not available

13

Electrolux/AYP 19121414

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 63688

SUB= 136376
(Superseded to 532183724)

$

$

Not available

15

$

$

Not available

16

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 98000129

NUT
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

19

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

20

Electrolux/AYP 9209R505

PANEL. HANDLE
(Superseded to 583780101)

$11.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 72110510

BOLT
(Superseded to 872110510)

$7.49

$

In Stock, Qty 20+

0

22

Electrolux/AYP 2622J

SUB= 159764

$

$

Not available

23

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0
