FN 620 K - Roper Rally Tiller (2003) Handle Assembly Parts Diagram

Tiller

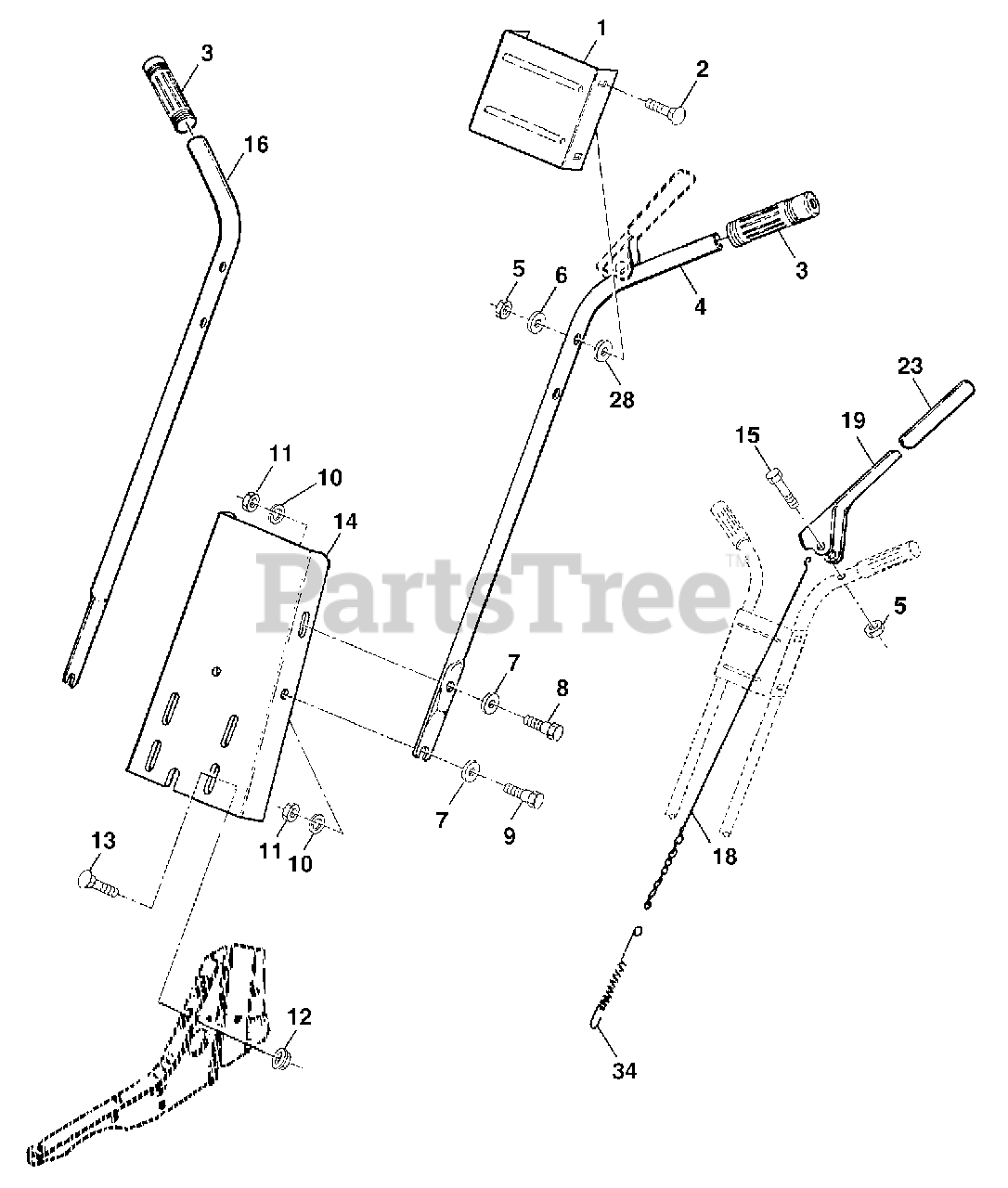

Handle Assembly Parts Diagram

  • Title
1

Electrolux/AYP 137176X505

Bracket, Handle
(Superseded to 583675401)

$

$

Not available

2

Electrolux/AYP 72140512

Bolt, Carriage 5/16-18 UNC x 1-1/2
(Superseded to 582736101)

$

$

Not available

3

Electrolux/AYP 9266R

Grip, Handle

$

$

Not available

4

Electrolux/AYP 151473

Handle, L.H.
(Superseded to 582981601)

$14.99

$

Usually ships in 3-10 days

0

5

Murray 73680500

Locknut, Crown 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 19111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

7

Electrolux/AYP 19121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 74760516

Bolt, Hex Hd. 5/16-18 x 1

$

$

Not available

9

Electrolux/AYP 74760512

Bolt, Hex Hd 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 10040500

Washer, Lock 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 73220500

Nut, Hex 5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 98000129

Nut, Flanged 5/16-18
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

13

Electrolux/AYP 180847

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 532180847)

$4.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 9209R505

Panel, Handle
(Superseded to 583780101)

$11.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 74760524

Bolt Fin Hex 5/16-18 x 1-1/2

$2.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 151474

Handle, R.H.
(Superseded to 584447801)

$14.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 3067J

Cable Asm Clutch

$

$

Not available

19

Electrolux/AYP 164937

Lever Clutch
(Superseded to 583014501)

$

$

Not available

23

Electrolux/AYP 8206H

Grip Handle
(Superseded to 532008206)

$11.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 19131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

34

Electrolux/AYP 3070J

Spring
(Superseded to 583731801)

$

$

Not available
