FN 620 K - Roper Rally Tiller (2003) Belt Guard And Pulley Assembly Parts Diagram

Tiller

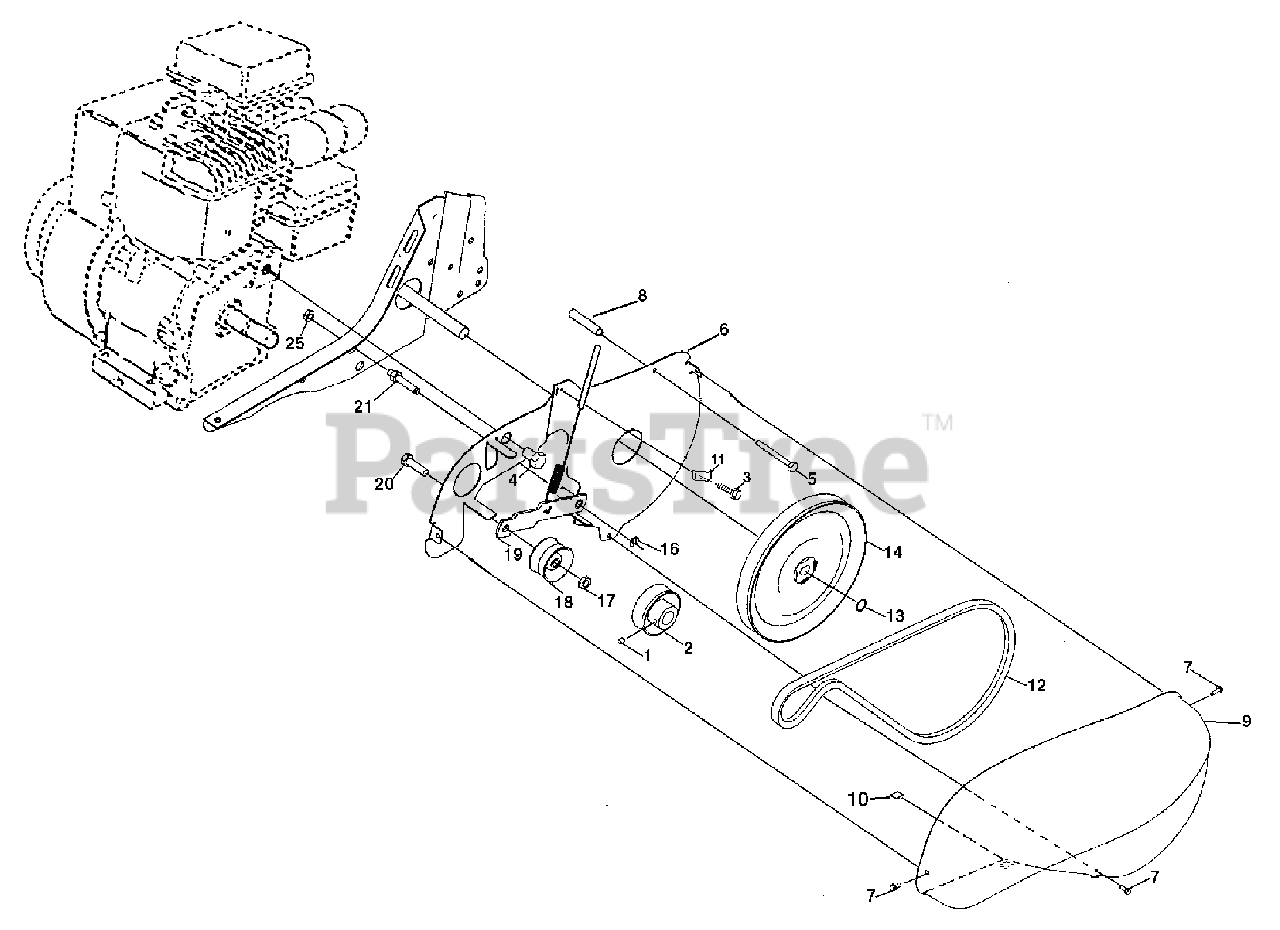

Belt Guard And Pulley Assembly Parts Diagram

  • Title
1

Electrolux/AYP 23230506

Screw, Set 5/16-18 x 3/8
(Superseded to 823230506)

$4.99

$

In Stock, only 2 left!

0

2

Electrolux/AYP 130812

Sheave, Engine
(Superseded to 592642101)

$13.99

$

In Stock, only 2 left!

0

3

UNKNOWN

$

$

Not available

4

Electrolux/AYP 74610812

Bolt, Hex 1/2-20 x 3/4
(Superseded to 583614001)

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 17490440

Bolt Thd Roller 1/4-20 X 2-1/2
(Superseded to 583789401)

$5.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 174898

Shield Inner Guard Belt
(Superseded to 583753101)

$48.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 170488

Screw Hex Wsh Slt #10-24 x .50
(Superseded to 532170488)

$6.49

$

In Stock, only 2 left!

0

8

Electrolux/AYP 139155

Spacer Split .523 x .718 x 2
(Superseded to 532139155)

$6.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 165768X505

Guard, Belt
(Superseded to 583687801)

$30.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 109227X

Pad, Idler
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

11

UNKNOWN

$

$

Not available

12

Electrolux/AYP 9180R

V-Belt Drive
(Superseded to 532009180)

$30.99

$

In Stock, only 3 left!

0

13

Electrolux/AYP 12000028

Ring, Retainer
(Superseded to 812000028)

$7.49

$

In Stock, Qty 8

0

14

Electrolux/AYP 151223

Sheave, Transmission
(Superseded to 532151223)

$39.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 12000035

Ring, Klip
(Superseded to 812000035)

$7.49

$

In Stock, Qty 10

0

17

Electrolux/AYP 73350600

Nut, Hex, Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

18

Electrolux/AYP 161806

Pulley, Idler
(Superseded to 532161806)

$31.99

$

Usually ships in 3-10 days

0

19

$4.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 74760620

Bolt, Hex 3/8-16 x 1-1/4
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 106968X

Shaft, Idler Arm
(Superseded to 532106968)

$15.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 73350500

Nut, Hex, Jam 5/16-18
(Superseded to 873350500)

$8.99

$

Usually ships in 3-10 days

0
