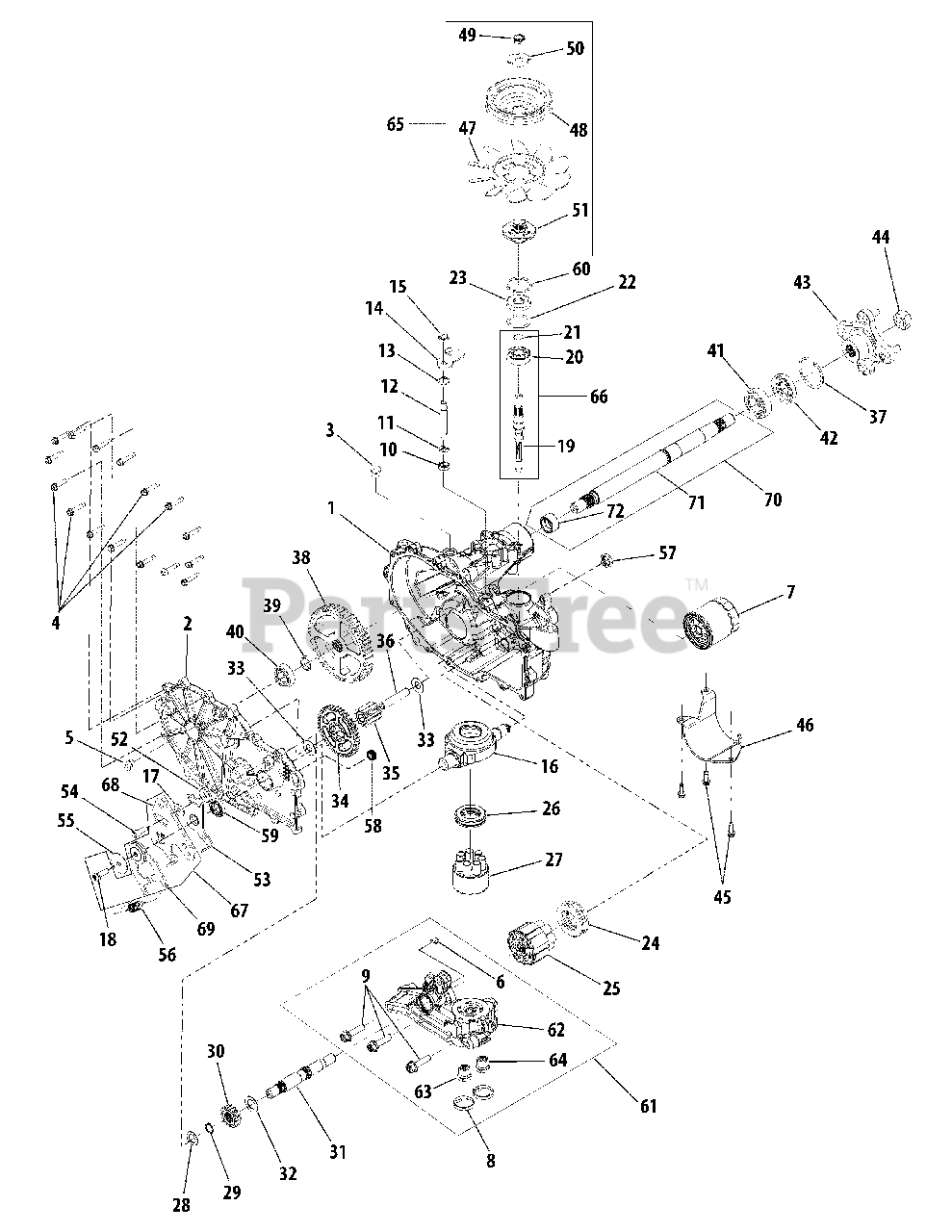

FMZ 50 (17AF4BFP710) - Cub Cadet 50" Zero-Turn Mower Transmission Assembly RH Parts Diagram

50" Zero-Turn Mower

Transmission Assembly RH Parts Diagram

  • Title

1

Cub Cadet HG-71822

Housing Assembly, Main

$

$

Not available

2

Cub Cadet HG-71573

Side Cover Assembly

$

$

Not available

3

Cub Cadet HG-9005110-5600

Plug, Straight Thread

$20.99

$

Usually ships in 3-6 days

0

4

Cub Cadet HG-51190

Screw, Hex Flange
(Superseded to HG-53246)

$3.99

$

Usually ships in 3-6 days

0

5

Cub Cadet HG-9005110-5600

Plug, Straight Thread

$20.99

$

Usually ships in 3-6 days

0

6

Cub Cadet HG-51448

Plate, Bypass

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet HG-52114

Filter, Oil
(Superseded to HG-52114P)

$32.99

$

Usually ships in 3-6 days

0

8

Cub Cadet HG-52162

Seal, Plug

$10.99

$

In Stock, only 1 left!

0

9

Cub Cadet HG-52137

Screw, Hex Cap, 3/8-16 x 1.5 Patched

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet HG-51626

Seal, Lip
(Superseded to HG-55232)

$4.99

$

Usually ships in 3-6 days

0

11

Cub Cadet HG-51628

Ring, Retaining, .375 Ext.

$4.49

$

In Stock, Qty 15

0

12

Cub Cadet HG-52136

Rod, Bypass

$9.99

$

In Stock, only 1 left!

0

13

Cub Cadet HG-51627

Ring, Retaining, .75 Int.

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet HG-52742

Arm, Bypass

$

$

Not available

15

Cub Cadet HG-51630

Ring, Retaining, .375 Ext.

$3.99

$

In Stock, only 1 left!

0

16

Cub Cadet HG-51048

Swashplate, Trunnion

$88.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 736-0371

Washer, .34 x .88 x .06

$4.49

$

In Stock, only 3 left!

0

18

Cub Cadet HG-51812

Screw, Patch, 5/16-24 x 1

$4.49

$

Usually ships in 3-6 days

0

19

Cub Cadet HG-51062

Shaft, Input
(Superseded to HG-51062P)

$134.99

$

In Stock, only 1 left!

0

20

Cub Cadet HG-50315

Bearing, Ball

$18.99

$

Usually ships in 3-6 days

0

21

Cub Cadet HG-2000022

Ring, Retaining

$4.49

$

Usually ships in 3-6 days

0

22

Cub Cadet HG-50951

Washer, 1.23 x 1.56 x .04

$4.49

$

Usually ships in 3-6 days

0

23

Cub Cadet HG-51161

Seal, Lip

$11.99

$

Usually ships in 3-6 days

0

24

Cub Cadet HG-51462

Bearing, Thrust
(Superseded to HG-51462P)

$33.99

$

Usually ships in 3-6 days

0

25

Cub Cadet HG-71579

Block Assembly, Cylinder
(Superseded to HG-72882)

$140.99

$

Usually ships in 3-6 days

0

26

Cub Cadet HG-50551

Bearing, Thrust
(Superseded to HG-50551P)

$29.99

$

Usually ships in 3-6 days

0

27

Cub Cadet HG-70723

Block Assembly, 7 Piston

$228.99

$

Usually ships in 3-6 days

0

28

Cub Cadet HG-44371

Washer, Flat, 5/8 x 1.0 x .05

$15.99

$

Usually ships in 3-6 days

0

29

Cub Cadet HG-44145

Ring, Retaining

$4.49

$

In Stock, only 2 left!

0

30

Cub Cadet HG-52149

Gear, 16T

$6.49

$

Usually ships in 3-6 days

0

31

Cub Cadet HG-53136

Shaft, Motor

$

$

Not available

32

Cub Cadet HG-51069

Washer, .72 x 1.16 x .04

$4.49

$

Usually ships in 3-6 days

0

33

Cub Cadet HG-50132

Washer, HT, .5 x 1.0 x .03

$4.49

$

Usually ships in 3-6 days

0

34

Cub Cadet HG-52148

Gear, 43T

$25.99

$

Usually ships in 3-6 days

0

35

Cub Cadet HG-52583

Gear, 11T

$13.99

$

Usually ships in 3-6 days

0

36

Cub Cadet HG-51083

Pin, Jackshaft

$33.99

$

Usually ships in 3-6 days

0

37

Cub Cadet HG-50859

Ring, Retaiining, 2.06 Int

$6.99

$

Usually ships in 3-6 days

0

38

Cub Cadet HG-52108

Gear, 54T

$73.99

$

Usually ships in 3-6 days

0

39

Cub Cadet HG-52161

Spacer, .75 x 1.0 x .257
(Superseded to HG-53336)

$3.99

$

Usually ships in 3-6 days

0

40

Cub Cadet HG-44121

Bearing, Ball
(Superseded to HG-44121P)

$56.99

$

In Stock, only 2 left!

0

41

Cub Cadet HG-50771

Bearing, Ball
(Superseded to HG-53656)

$17.99

$

In Stock, only 2 left!

0

42

Cub Cadet HG-50772

Seal, Lip
(Superseded to HG-53699)

$9.49

$

In Stock, only 2 left!

0

43

Cub Cadet HG-71404

Kit, Hub, 4 Bolt

$62.99

$

Usually ships in 3-6 days

0

44

Cub Cadet HG-50863

Nut, Hex Lock, 3/4-16
(Superseded to 912-3018)

$

$

Not available

45

Cub Cadet HG-50752

Screw, Hex Cap, 1/4-20 x .75

$4.49

$

Usually ships in 3-6 days

0

46

Cub Cadet HG-52247

Guard, Filter
(Superseded to HG-53644)

$17.99

$

Usually ships in 3-6 days

0

47

Cub Cadet HG-52365

Fan, 7"
(Superseded to HG-53050)

$21.99

$

Usually ships in 3-6 days

0

48

Cub Cadet N/A

Pulley Disc -

Note: Order Ref No.65, HG-71351

$

$

Currently unavailable

49

Cub Cadet 912-0346

Nut, Hex Lock, 1/2-20
(Superseded to 712-0346)

$4.99

$

In Stock, Qty 6

0

50

Cub Cadet HG-51523

Washer, Slotted

$3.99

$

In Stock, Qty 8

0

51

Cub Cadet N/A

Hub,

Note: Order Ref No.65, HG-71351

$

$

Currently unavailable

52

Cub Cadet HG-52527

Spacer, .32 x 1.005 x .179
(Superseded to HG-54315)

$2.99

$

Usually ships in 3-6 days

0

53

Cub Cadet HG-51945

Arm, Neutral

$13.99

$

In Stock, only 1 left!

0

54

Cub Cadet HG-51616

Screw, Patch, 5/16-24 x 1
(Superseded to HG-71341)

$9.49

$

Usually ships in 3-6 days

0

55

Cub Cadet HG-51950

Washer, .343 x 1.5 x .062
(Superseded to HG-54244)

$6.49

$

Usually ships in 3-6 days

0

56

Cub Cadet HG-51833

Spring, Extension
(Superseded to 732-04448)

$10.99

$

In Stock, Qty 19

0

57

Cub Cadet HG-53138

Seal

$

$

Not available

58

Cub Cadet HG-53139

Seal, Plug

$3.49

$

Usually ships in 3-6 days

0

61

Cub Cadet HG-71568

Kit, Center Section

Note: Includes Ref. Nos. 6, 8, 9, 62 thru 64

$203.99

$

Usually ships in 3-6 days

0

65

Cub Cadet HG-71351

Kit, Fan/Pulley
(Superseded to HG-72134)

Note: Includes Ref. Nos. 47 thru 51

$63.99

$

In Stock, Qty 6

0

66

Cub Cadet HG-71443

Kit, Input Shaft

Note: Includes Ref. Nos. 19 thru 21

$77.99

$

Usually ships in 3-6 days

0

67

Cub Cadet HG-71588

Kit, Return Bidirectional

Note: Includes Ref. Nos. 18, and 67 thru 69

$48.99

$

In Stock, only 1 left!

0

70

Cub Cadet HG-71570

Kit, Axle Shaft

Note: Includes Ref. Nos. 71 and 72

$178.99

$

Usually ships in 3-6 days

0

Cub Cadet HG-50928

Sealant

Note: Not shown

$103.99

$

In Stock, Qty 8

0

Cub Cadet HG-71410

Seal Kit
(Superseded to HG-73107)

Note: Includes Ref. Nos. 8, 10, 11, 13, 15, 18, 21, 23, 29, 37, 42, 57- 60

$72.99

$

Usually ships in 3-6 days

0
