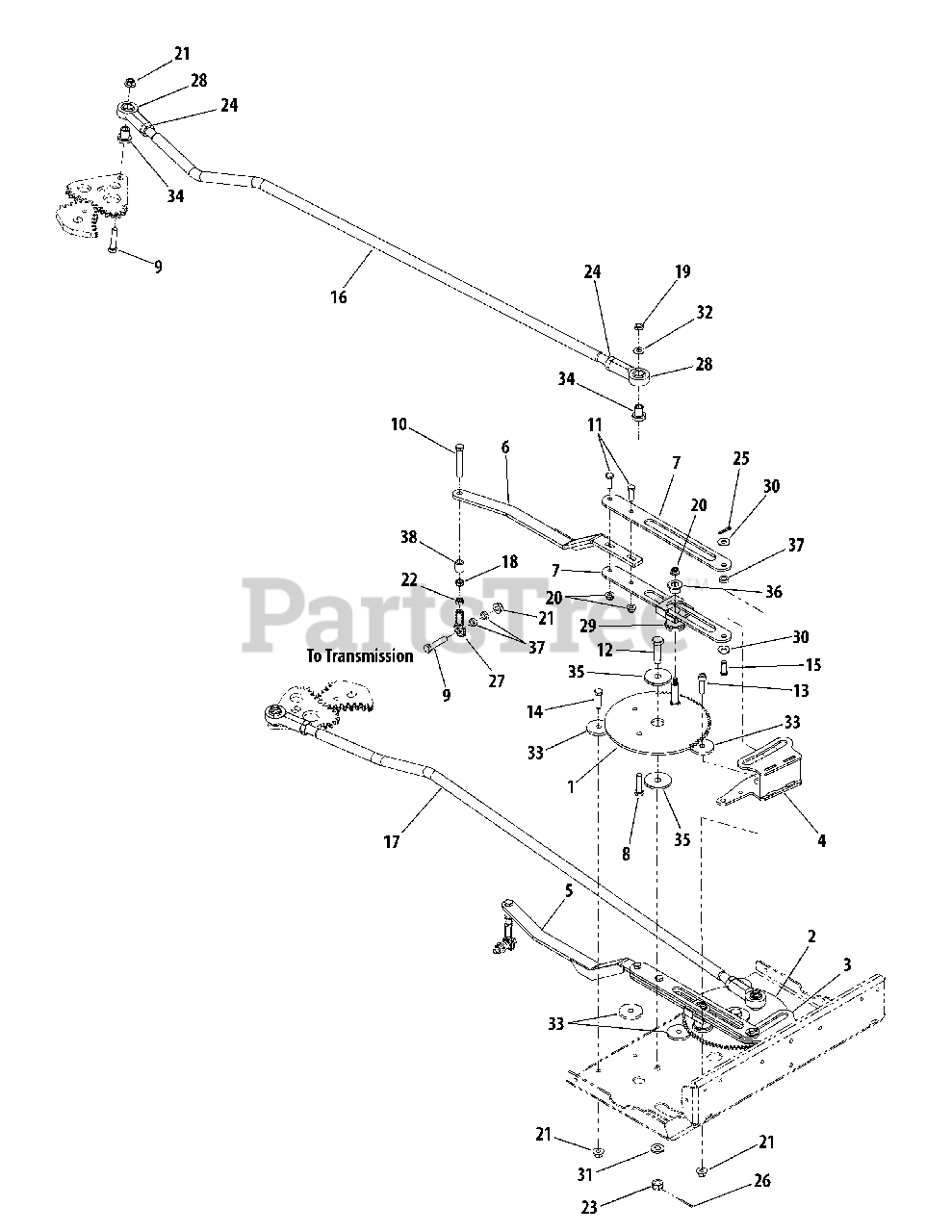

FMZ 50 (17AF4BFP710) - Cub Cadet 50" Zero-Turn Mower Steering Linkage Parts Diagram

50" Zero-Turn Mower

Steering Linkage Parts Diagram

  • Title

1

Cub Cadet 603-04580

Gear Assembly, Steering RH
(Superseded to 903-04580)

$

$

Not available

2

Cub Cadet 603-04581

Gear Assembly, Steering LH
(Superseded to 903-04581)

$

$

Not available

3

Cub Cadet 603-04588

Bracket, Control LH

Variations

Cub Cadet 603-04588-0637

BRACKET-STEERING CONTROL - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 603-04589

Bracket, Control RH

Variations

Cub Cadet 603-04589-0637

BRACKET-STEERING CONTROL - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 603-04592

Link Assembly, Control, LH

Variations

Cub Cadet 603-04592-0637

LINK-STEERING CONTROL - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 603-04593

Link Assembly, Control, RH

Variations

Cub Cadet 603-04593-0637

LINK-STEERING CONTROL - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 703-06531A

Plate, Cam
(Superseded to 703-06531B)

Note: (Replaces 703-06531 by also ordering Qty. 2 - 710-0276)

$27.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0344

Screw, Hex Cap, 3/8-16 x 1.5 Gr5

$5.99

$

In Stock, Qty 11

0

9

Cub Cadet 710-0347

Screw, Hex Cap, 3/8-16 x 1.75 Gr5

$5.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0369

Screw, Hex Cap, 3/8-24 x 2.5 Gr5

$6.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0376

Screw, Hex Cap, 5/16-18 x 1.0 Gr5

Note: Used with 703-06531 cam plates

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0276

Bolt, Carriage, 5/16-18 x 1.0

Note: Used with 703-06531A cam plates

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-04775

Screw, Hex Cap, 1/2-20 x 1.75 Gr5

$

$

Not available

13

Cub Cadet 710-04789

Screw, Socket Hd., 3/8-16 x 1.25

$

$

Not available

14

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 Gr5

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 711-0173

Pin, Clevis, .375 x .969
(Superseded to 711-04722)

$6.99

$

In Stock, only 3 left!

0

16

Cub Cadet 711-04899

Link, Drag, RH

$

$

Not available

17

Cub Cadet 711-04953

Link, Drag, LH

$

$

Not available

18

Cub Cadet 712-0116

Nut, Hex Insert Jam Lock, 3/8-24 Gr5

$4.99

$

In Stock, Qty 6

0

19

Cub Cadet 712-0181

Nut, Hex Jam Lock, 3/8-16 Gr5

$4.49

$

In Stock, only 3 left!

0

20

Cub Cadet 712-04063

Nut, Hex Insert Flange Lock, 5/16-18 GrF

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-04065

Nut, Hex Insert Flange Lock, 3/16-16 GrF

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-0711

Nut, Hex Jam, 3/8-24, Gr5

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 712-3012

Nut, Hex Slotted, 1/2-20 Gr5
(Superseded to 912-3012)

$13.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 712-3056

Nut, Hex Jam, 5/8-18, Gr5

$4.99

$

In Stock, Qty 13

0

25

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 714-0111

Pin, Cotter, 3/32 x 1.0

$4.99

$

In Stock, Qty 13

0

27

Cub Cadet 723-04035

End, Ball Joint Rod

$36.99

$

In Stock, only 4 left!

0

28

Cub Cadet 723-04050

Ball Joint, .625 ID x 5/8-18

$59.99

$

In Stock, only 3 left!

0

29

Cub Cadet 731-06317

Box, Steering Guide

$

$

Not available

30

Cub Cadet 736-0262

Washer, Flat, .385 x .87 x .092

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0326

Washer, Flat, .51 x 1.0 x .125

$4.49

$

In Stock, only 2 left!

0

32

Cub Cadet 736-0864

Washer, Thrust, .375 x .812 x .06

$4.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 738-04162A

Spacer, Shoulder, .884 x .19
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

34

Cub Cadet 738-04328

Spacer, Shoulder, .3825 x .6175

$

$

Not available

35

Cub Cadet 738-04337

Spacer, Shoulder, .979 x .2025
(Superseded to 738-04337A)

$5.99

$

In Stock, Qty 7

0

36

Cub Cadet 741-0248

Bearing, Flange, .51 x .757

$9.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 750-0535

Spacer, .38 x .625 x .21
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 750-0807

Spacer, .385 x .625 x .70

$6.49

$

Usually ships in 3-6 days

0
