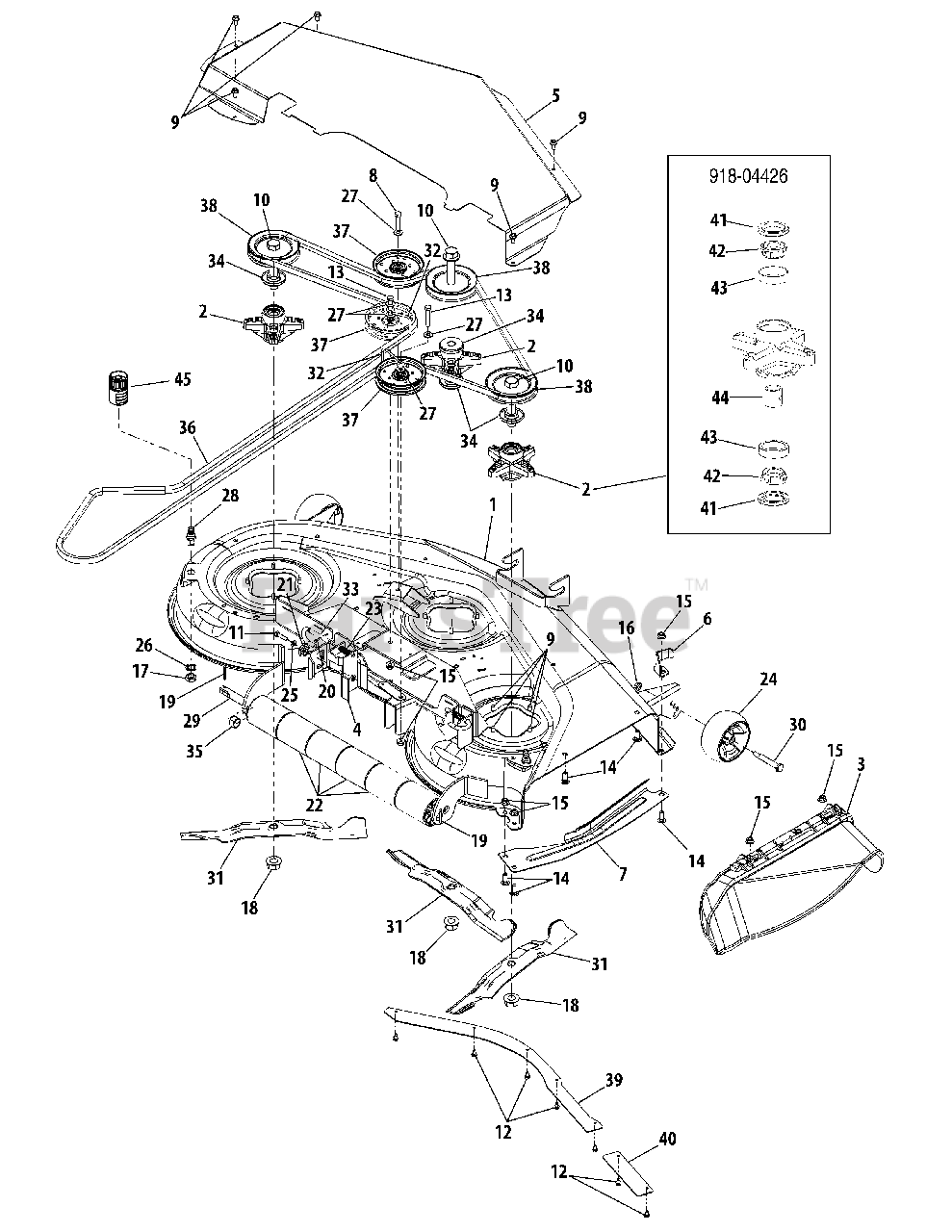

FMZ 50 (17AF4BFP710) - Cub Cadet 50" Zero-Turn Mower Mowing Deck Parts Diagram

50" Zero-Turn Mower

Mowing Deck Parts Diagram

  • Title

1

Cub Cadet 603-04566

Deck Housing

Variations

Cub Cadet 603-04566-4021

USE 759-04307 FRM KIT-DECK HO - CUB YELLOW 2 (4021)

$

$

Not available

$

$

2

Cub Cadet 918-04426

Spindle Assembly

$112.99

$

In Stock, Qty 20+

0

2

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet 631-04070A

Chute Assembly
(Superseded to 631-04070C)

$122.99

$

In Stock, only 4 left!

0

4

Cub Cadet 683-0254B

Bracket, Deck Hanger

Variations

Cub Cadet 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$49.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254B-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-4008

BRACKET ASM-DECK LH - WINE RED (4008)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-0709

BRACKET ASM-DECK LH - MASTERCRAFT GREEN (0709)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-4028

BRACKET ASM-DECK LH - SEARS YELLOW (4028)

$36.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-06690

Cover, Spindle/Belt

Variations

Cub Cadet 703-06690-4021

USE 703-06690A-4021 COVER-50" - CUB YELLOW 2 (4021)

$

$

Not available

$

$

6

Cub Cadet 703-3279

Stop, Chute Defl ector

Variations

Cub Cadet 703-3279-0498

Chute Deflector Stop - OLD CUB YELLOW (0498)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0606

Chute Deflector Stop - MAJESTIC ORANGE (0606)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0637

Chute Deflector Stop - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0638

Chute Deflector Stop - MTD/TROY-BILT RED (0638)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0650

Chute Deflector Stop - RED METALLIC (0650)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0665

Chute Deflector Stop - YARDMAN GREEN (0665)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0691

Chute Deflector Stop - BLACK JACK (0691)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0716

Chute Deflector Stop - CUB YELLOW-99 (0716)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-4008

Chute Deflector Stop - WINE RED (4008)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-4021

Chute Deflector Stop - CUB YELLOW 2 (4021)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-4028

Chute Deflector Stop - SEARS YELLOW (4028)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-4033

Chute Deflector Stop - FLINT MICA (4033)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-4044

Chute Deflector Stop - CRAFTSMAN RED (4044)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-3511A

Guard, Finger
(Superseded to 703-3511B-0637)

Variations

Cub Cadet 703-3511A-0637

Finger Guard, Black - POWDER BLACK (0637)

$69.99

$

In Stock, Qty 20+

0

$69.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0347

Screw, Hex Cap, 3/8-16 x 1.75 Gr5

$5.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-04484

Screw, Hex Wash. Hd. Tapp, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-04781

Bolt, Spindle, 3/4-16 x 4.25

$

$

Not available

11

Cub Cadet 710-0528

Screw, Hex Cap, 5/16-18 x 1.25 Gr5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0599

Screw, Hex Wash. Hd. Tapp, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3144

Screw, Hex Cap, 3/8-16 x 2.0 Gr5

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3168

Bolt, Carriage, 3/8-16 Gr1

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

Nut, Hex Insert Flange Lock, 3/8-16 GrF

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0431

Nut, Hex Flange Top Lock, 3/8-16 GrF
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0641

Nut, Hex M16 -1.5

$6.49

$

In Stock, Qty 7

0

18

Cub Cadet 712-3078

Nut, Hex Flange Lock, 3/4-16 Gr8

$9.99

$

In Stock, Qty 20+

0

19

Cub Cadet 714-0162

Pin, Internal Cotter

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 714-0470

Pin, Cotter, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 717-04074

Gear, Deck Adjustment
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 14

0

22

Cub Cadet 731-3305

Roller, Deck

$32.99

$

In Stock, Qty 20+

0

23

Cub Cadet 732-0306A

Spring, Compression, .531 x 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

24

Cub Cadet 734-04155

Wheel, Deck Ball, 5.0

$20.99

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0225

Washer, Internal Toothe Lock, 5/8

$4.49

$

In Stock, only 2 left!

0

27

Cub Cadet 736-0300

Washer, Flat, .406 x .875x .059

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 737-04003C

Nozzle, Deck Wash
(Superseded to 737-04003D)

$23.99

$

In Stock, Qty 6

0

29

Cub Cadet 738-04260

Shaft, .75 x 26.893

$86.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 738-3056

Bolt, Shoulder, .496 x 2.5:3/8-16
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

31

Cub Cadet 759-04047

Blade, 17.9 2 in 1
(Superseded to 742P04068C)

$31.99

$

In Stock, Qty 20+

0

32

Cub Cadet 747-04530

Rod, Belt Keeper

$7.49

$

In Stock, Qty 20+

0

33

Cub Cadet 747-1116

Rod, Deck Release

$12.99

$

In Stock, Qty 6

0

34

Cub Cadet 748-3065A

Spacer, Deck Spindle

$13.99

$

In Stock, Qty 14

0

35

Cub Cadet 750-0212

Spacer, .82 x 1.0 x .53

$10.99

$

In Stock, Qty 18

0

36

Cub Cadet 754-04188

V-Belt, A Section x 184.25
(Superseded to 954-04188)

$92.99

$

In Stock, only 1 left!

0

37

Cub Cadet 756-04129

Pulley, Idler, 4.25
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

38

Cub Cadet 756-3096

Pulley, Spindle

$40.99

$

In Stock, Qty 11

0

39

Cub Cadet 783-04414A

Skirt, Deck

Variations

Cub Cadet 783-04414A-4021

Center Skirt for 50" Deck, Yellow - CUB YELLOW 2 (4021)

$35.99

$

In Stock, only 2 left!

0

Cub Cadet 783-04414A-0637

Center Deck Skirt, 50" - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04414A-0716

Center Deck Skirt, 50" - CUB YELLOW-99 (0716)

$35.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04414A-0606

Center Skirt for 50" Deck, Orange - MAJESTIC ORANGE (0606)

$35.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04414A-0665

SKIRT-CENTER 50" - YARDMAN GREEN (0665)

$35.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04414A-0691

SKIRT-CENTER 50" - BLACK JACK (0691)

$35.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04414A-4008

SKIRT-CENTER 50" - WINE RED (4008)

$35.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04414A-4033

Center Skirt for 50" Deck, Flint - FLINT MICA (4033)

$35.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04414A-4044

SKIRT-CENTER 50" - CRAFTSMAN RED (4044)

$35.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04414A-4028

SKIRT-CENTER 50" - SEARS YELLOW (4028)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 783-04415

Skirt, Deck

Variations

Cub Cadet 783-04415-4021

Right Skirt for 50" Deck - CUB YELLOW 2 (4021)

$30.99

$

In Stock, only 1 left!

0

Cub Cadet 783-04415-0606

Right Skirt for 50" Deck - MAJESTIC ORANGE (0606)

$30.99

$

In Stock, Qty 5

0

Cub Cadet 783-04415-0637

Right Skirt for 50" Deck - POWDER BLACK (0637)

$30.99

$

In Stock, only 3 left!

0

Cub Cadet 783-04415-0665

SKIRT-RH 50" - YARDMAN GREEN (0665)

$30.99

$

In Stock, only 3 left!

0

Cub Cadet 783-04415-0691

SKIRT-RH 50" - BLACK JACK (0691)

$30.99

$

In Stock, only 3 left!

0

Cub Cadet 783-04415-0716

Right Skirt for 50" Deck - CUB YELLOW-99 (0716)

$30.99

$

In Stock, only 3 left!

0

Cub Cadet 783-04415-4008

SKIRT-RH 50" - WINE RED (4008)

$30.99

$

In Stock, only 1 left!

0

Cub Cadet 783-04415-4028

Right Skirt for 50" Deck - SEARS YELLOW (4028)

$30.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04415-4033

Right Skirt for 50" Deck - FLINT MICA (4033)

$30.99

$

In Stock, only 3 left!

0

Cub Cadet 783-04415-4044

SKIRT-RH 50" - CRAFTSMAN RED (4044)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 721-3018A

Seal, Oil
(Superseded to 921-3018A)

$8.49

$

In Stock, Qty 20+

0

42

Cub Cadet 741-04129

Bearing, Cone
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 18

0

43

Cub Cadet 741-04130

Cup, Bearing
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

44

Cub Cadet 750-04409

Spacer, Bearing

$20.99

$

In Stock, only 1 left!

0

45

Cub Cadet 721-04041

Adapter, Water Nozzle
(Superseded to 921-04041)

$23.99

$

In Stock, Qty 20+

0

Cub Cadet OEM-190-193

Mulch Plug

$78.99

$

In Stock, only 3 left!

0
