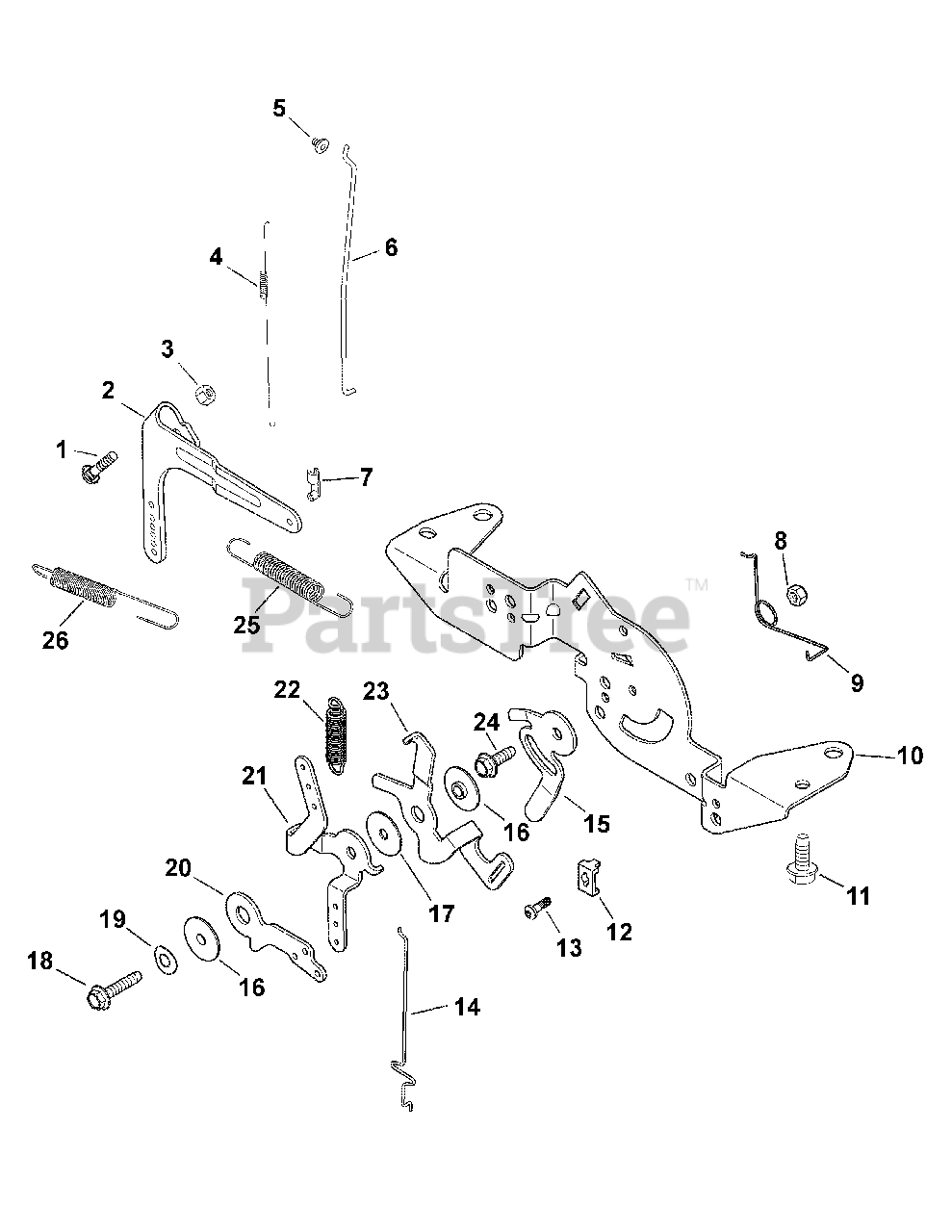

FMZ 50 (17AF4BFP710) - Cub Cadet 50" Zero-Turn Mower Engine Controls Parts Diagram

50" Zero-Turn Mower

Engine Controls Parts Diagram

  • Title
1

Cub Cadet KH-24-211-03-S

Bolt, Carriage, M6 X 1.0 X 25

$2.49

$

In Stock, Qty 15

0

2

Cub Cadet KH-24-090-51-S

Lever, Governor
(Superseded to KH-24-090-69-S)

$8.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-M-641060-S

Nut, Flange, M6 x 1.0

$4.49

$

In Stock, Qty 6

0

4

Cub Cadet KH-24-089-01

Spring, Linkage

$

$

Not available

5

Cub Cadet KH-25-158-08

Bushing, Linkage Retainer

$5.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-079-04

Linkage, Throttle

$

$

Not available

7

Cub Cadet KH-25-158-11

Bushing, Throttle Linkage

$

$

Not available

8

Cub Cadet KH-M-547050-S

Nut, Lock, M5 x 0.8

$2.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-24-089-03

Spring, Choke Return

$

$

Not available

10

Cub Cadet KH-24-126-172-S

Bracket, Control
(Superseded to KH-32-126-18-S)

$11.99

$

In Stock, only 2 left!

0

11

Cub Cadet KH-M-645016-S

Screw, Flnge Thrd. Frmng M6 x 1.0 x 16

$3.99

$

In Stock, Qty 13

0

12

Cub Cadet KH-12-237-01

Clamp, Cable
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet KH-24-086-43-S

Screw, Torx Hd. Ctsk, M5 x 0.8 x 16
(Superseded to KH-25-086-405-S)

$2.49

$

In Stock, only 2 left!

0

14

Cub Cadet KH-24-079-22-S

Linkage, Choke

$6.99

$

In Stock, Qty 7

0

15

Cub Cadet KH-32-090-09-S

Lever, Speed Setting

$2.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-24-112-27-S

Spacer, Control Assembly

$3.99

$

In Stock, only 1 left!

0

17

Cub Cadet KH-24-468-01

Washer, Flat, 5.5mm

$

$

Not available

18

Cub Cadet KH-25-086-151-S

Screw, Thrd. Forming, M5 x 0.8 x 25
(Superseded to KH-25-086-472-S)

$2.49

$

In Stock, only 1 left!

0

19

Cub Cadet KH-41-468-03

Washer, Spring, 1/4

$

$

Not available

20

$

$

Not available

21

Cub Cadet KH-32-090-08-S

Lever, Speed Control
(Superseded to KH-32-090-26-S)

$2.49

$

Usually ships in 3-6 days

0

22

Cub Cadet KH-32-089-03-S

Spring, Speed Control

$2.49

$

In Stock, only 1 left!

0

23

Cub Cadet KH-32-090-07-S

Lever, Governor Spring

$3.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-M-545016-S

Screw, Flng. Thrd. Frmng, M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

25

Cub Cadet KH-24-089-55-S

Spring, Governor

$2.49

$

In Stock, only 4 left!

0

26

Cub Cadet KH-24-089-18

Spring, Governor

$

$

Not available
