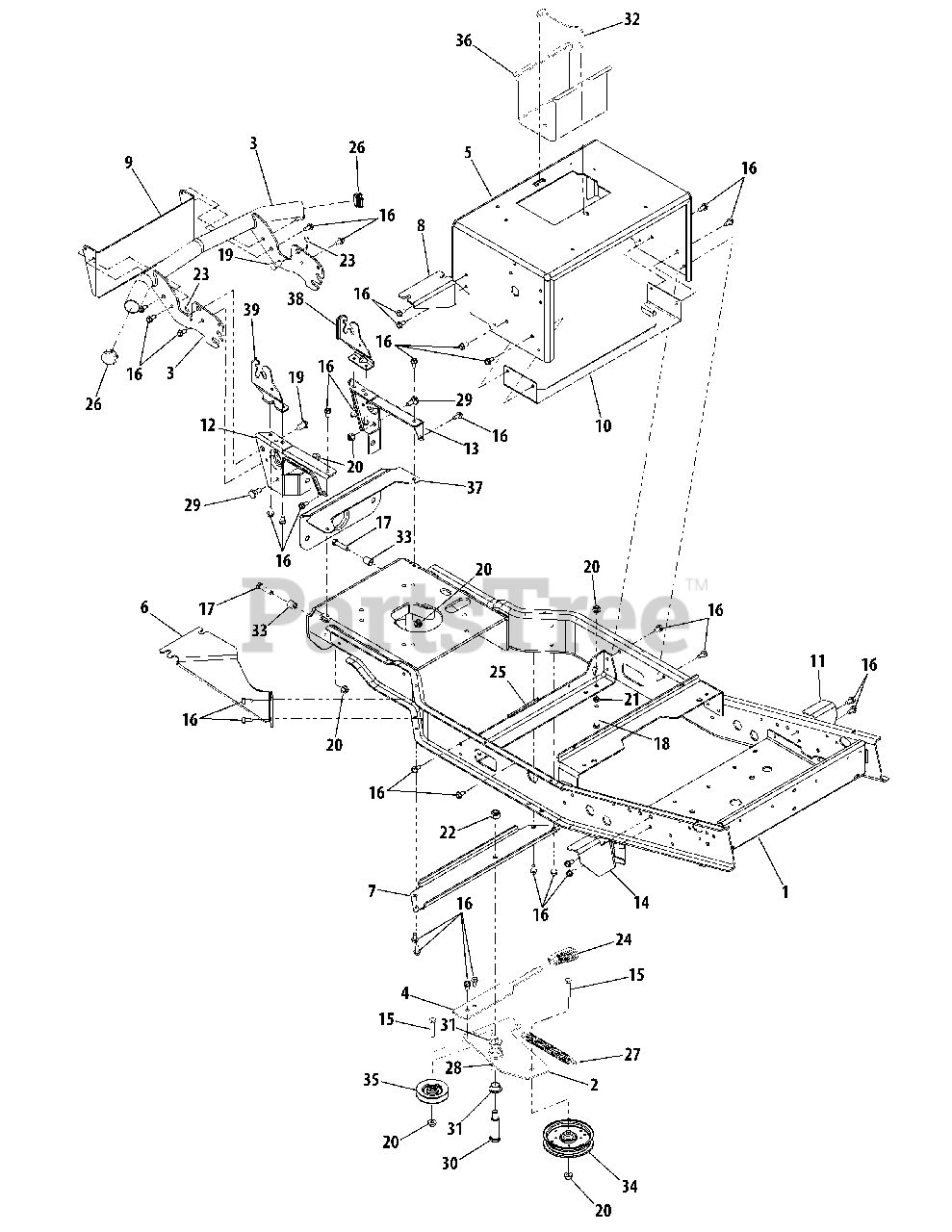

FMZ 50 (17AF4BFP210) - Cub Cadet 50" Zero-Turn Mower Frame & PTO Idler Bracket Parts Diagram

50" Zero-Turn Mower

Frame & PTO Idler Bracket Parts Diagram

  • Title

1

Cub Cadet 603-04531

Frame Assembly

Variations

Cub Cadet 603-04531-0637

FRAME ASSY-FRONT CUT - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 603-04573

Idler Bracket, PTO

Variations

Cub Cadet 603-04573-0637

PLATE ASM-IDLER - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 683-04219B

Bumper Assembly

Variations

Cub Cadet 683-04219B-0637

Bumper Assembly, Universal - POWDER BLACK (0637)

$60.99

$

In Stock, only 2 left!

0

Cub Cadet 683-04219B-0606

BMPR ASM-UNVERSL - MAJESTIC ORANGE (0606)

$61.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-05396A

Handle, Idler Bracket
(Superseded to 703-05396A-0637)

Variations

Cub Cadet 703-05396A-0637

Brake Handle - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-06446

Frame, Seat

Variations

Cub Cadet 703-06446-0637

FRAME-SEAT BOX - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 703-06472

Bracket, Tank Support

Variations

Cub Cadet 703-06472-0637

BRACKET-FUEL TANK - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 703-06540

Bracket, Idler Mounting

Variations

Cub Cadet 703-06540-0637

BRACKET-IDLR PLATE MOUNTING - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 703-06567

Bracket, Tank Support

Variations

Cub Cadet 703-06567-0637

BRACKET-FUEL TANK - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 703-06572

Plate, Tow

Variations

Cub Cadet 703-06572-0637

PLATE-TOW FRNT CUT - POWDER BLACK (0637)

$

$

Not available

$

$

10

Cub Cadet 703-06597

Bracket, Belt Keeper Support

Variations

Cub Cadet 703-06597-0637

BRACKET SUPPORT-KEEPER - POWDER BLACK (0637)

$

$

Not available

$

$

11

Cub Cadet 703-06641

Bracket, Running Board Support LH
(Superseded to 703-06641A)

Variations

Cub Cadet 703-06641-0637

USE 703-06641A-0637 BRACKET-R - POWDER BLACK (0637)

$

$

Not available

$

$

12

Cub Cadet 703-06670

Bracket, Pivot Support RH

Variations

Cub Cadet 703-06670-0637

BRACKET-PIVOT BAR RH - POWDER BLACK (0637)

$

$

Not available

$

$

13

Cub Cadet 703-06671

Bracket, Pivot Support LH

Variations

Cub Cadet 703-06671-0637

BRACKET-PIVOT BAR LH - POWDER BLACK (0637)

$

$

Not available

$

$

14

Cub Cadet 703-06743

Bracket, Running Board Support RH
(Superseded to 703-06743A)

Variations

Cub Cadet 703-06743-0637

USE 703-06743A-0637 BRACKET-R - POWDER BLACK (0637)

$

$

Not available

$

$

15

Cub Cadet 710-0347

Screw, Hex Cap, 3/8-16 x 1.75 Gr5

$5.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-04484

Screw, Hex Wash. Hd. Tapp, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0520

Hex Cap Screw, 3/8-16 x 1.5 Gr5

$4.49

$

In Stock, Qty 6

0

18

Cub Cadet 710-3011

Hex Cap Screw, 3/8-16 x 2.25 Gr5

$6.99

$

In Stock, Qty 20+

0

19

Cub Cadet 711-0332

Pin, Clevis, .5 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 17

0

20

Cub Cadet 712-04065

Nut, Hex Insert Flange Lock, 3/8-16 GrF

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3008

Nut, Hex Jam, 3/8 -16 Gr5

$4.99

$

In Stock, Qty 16

0

22

Cub Cadet 712-3083

Nut, Hex Insert Lock, 1/2-13 GrB

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 714-04023

Pin, Internal Cotter, .08 x 1.56

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 731-04735

Grip, Handle

$20.99

$

In Stock, only 1 left!

0

25

Cub Cadet 735-04130

Strip, Trim

$8.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 731-05368

Cap, Bumper

$5.99

$

In Stock, Qty 11

0

27

Cub Cadet 732-0594A

Spring, Extension, .91 x 7.33
(Superseded to 932-0594A)

$14.99

$

In Stock, Qty 20+

0

28

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 738-0143

Bolt, Shoulder, .496 x .336:3/8-16

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 738-3110

Screw, Shoulder, .75 x 2.23
(Superseded to 938-3110)

$33.99

$

In Stock, Qty 5

0

31

Cub Cadet 741-0338

Bearing, Flange, 3/4 x .52

$9.49

$

In Stock, only 2 left!

0

32

Cub Cadet 747-04121A

Rod, Battery Hold Down

$6.49

$

In Stock, Qty 20+

0

33

Cub Cadet 750-0807

Spacer, . 385 x .625 x .7

$6.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 756-04129

Pulley, Idler, 4.25" Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

35

Cub Cadet 756-04325

Pulley, V-Idler, 3.06" Dia

$24.99

$

In Stock, Qty 20+

0

36

Cub Cadet 783-0349

Tray, Battery

Variations

Cub Cadet 783-0349-4008

TRAY-BATTERY 400 - WINE RED (4008)

$

$

Not available

Cub Cadet 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

37

Cub Cadet 783-04806

Bracket, Pivot Bar

Variations

Cub Cadet 783-04806-0637

BRACKET-PIVOT BAR - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04806-0716

BRACKET-PIVOT BAR - CUB YELLOW-99 (0716)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 783-04840

Bracket, Hood Pivot RH

Variations

Cub Cadet 783-04840-0637

Hood Pivot Bracket - POWDER BLACK (0637)

$19.99

$

In Stock, only 2 left!

0

Cub Cadet 783-04840-0716

BRACKET:PIVOT:HOOD - CUB YELLOW-99 (0716)

$18.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04840-4008

BRACKET:PIVOT:HOOD - WINE RED (4008)

$19.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 783-04841

Bracket, Hood Pivot LH

Variations

Cub Cadet 783-04841-0716

BRACKET:PIVOT:HOOD - CUB YELLOW-99 (0716)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04841-4008

BRACKET:PIVOT:HOOD - WINE RED (4008)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04841-0637

Hood Pivot Bracket - POWDER BLACK (0637)

$

$

Not available

$15.99

$

Usually ships in 3-6 days

0
