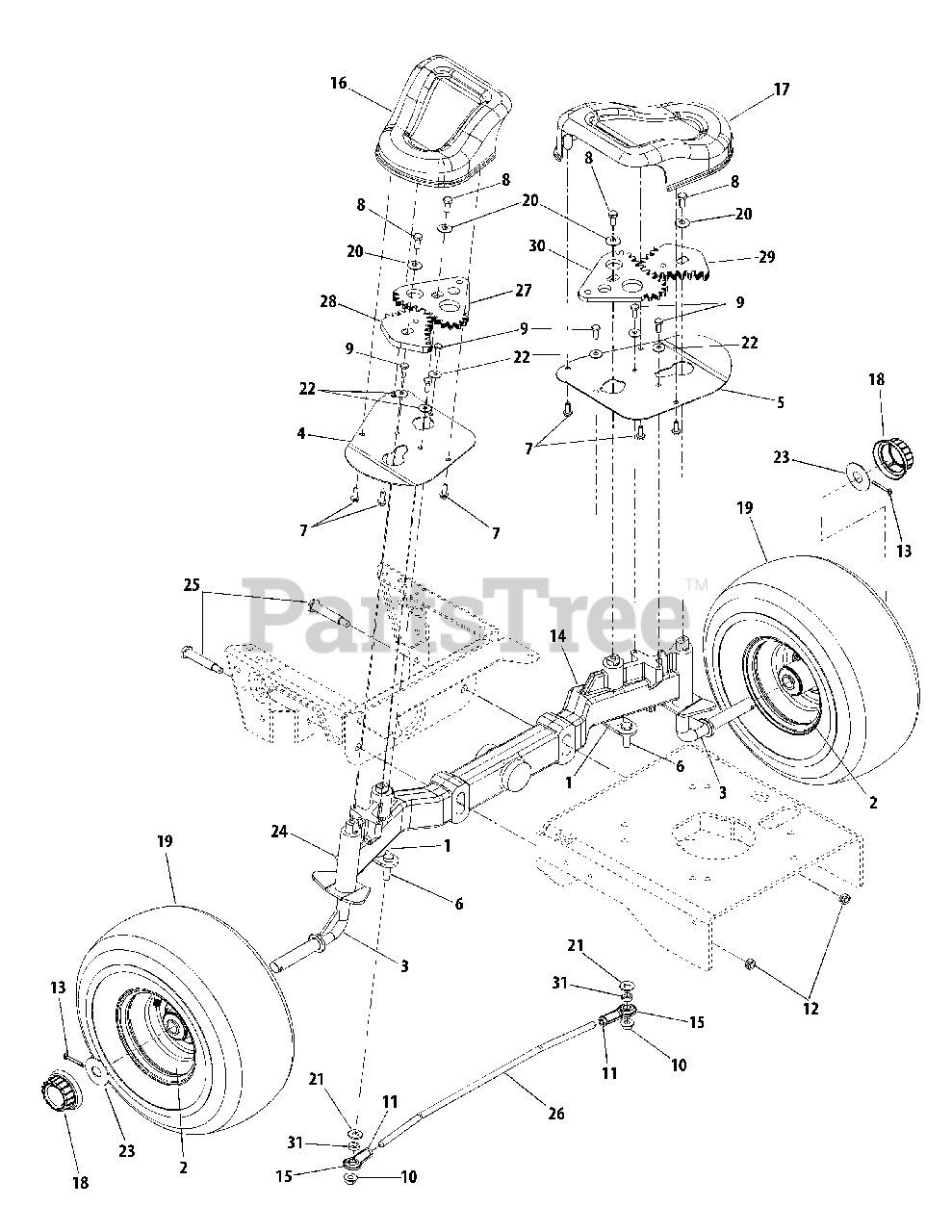

FMZ 50 (17AF4BFP209) - Cub Cadet 50" Zero-Turn Mower Rear Pivot Axle Parts Diagram

50" Zero-Turn Mower

Rear Pivot Axle Parts Diagram

  • Title

1

Cub Cadet 603-04528

Shaft Assembly, Steering Pivot

$

$

Not available

2

Cub Cadet 634-04104A

Rim Assembly Includes:
(Superseded to 934-04104A)

Variations

Cub Cadet 634-04104A-0499

Front Rim Assembly - CUB BEIGE (0499)

$181.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04104A-0662

USE 934-04104A-0662 RIM ASM-F - OYSTER GRAY (0662)

$147.99

$

In Stock, only 1 left!

0

Cub Cadet 634-04104A-0729

USE 934-04104A-0729 RIM ASM-F - STORM GRAY (0729)

$181.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04104A-4042

USE 934-04104A-4042 RIM ASM-F - CRAFTSMAN GRAY (4042)

$147.99

$

In Stock, only 1 left!

0

$147.99

$

In Stock, only 1 left!

0

2

Cub Cadet 741-04137

Ball Bearings
(Superseded to 941-04137A)

$30.99

$

In Stock, Qty 6

0

2

Cub Cadet 734-0255

Air Valve.
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 737-0224

Lube Fitting

$7.49

$

In Stock, only 3 left!

0

3

Cub Cadet 647-04130B

Axle Assembly, Wheel
(Superseded to 647-04130C)

$98.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-06590

Plate, Steering Gear Base RH

Variations

Cub Cadet 703-06590-0637

PLATE-STRG GEAR RH C - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 703-06602

Plate, Steering Gear Base LH

Variations

Cub Cadet 703-06602-0637

PLATE-STRG GEAR RH C - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 710-0347

Screw, Hex Cap, 3/8-16 x 1.75 Gr5

$5.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0895

Screw, Hex Wash. Hd., 1/4-15 x .75

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-1880

Screw, Hex Cap, 5/16-18 x .75 Gr5 Patch

$4.99

$

In Stock, Qty 11

0

9

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 x .75 Gr5

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04065

Nut, Hex Flange Insert Lock, 3/8-16 GrF

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-0711

Nut, Hex Jam, 3/8-24 Gr5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GrB

$4.49

$

In Stock, Qty 9

0

13

Cub Cadet 714-04039

Pin, Cotter, 5/32 x 1.25
(Superseded to 714-0162)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 719-04396

Bar, Pivot

$

$

Not available

15

Cub Cadet 723-04035

Ball Joint End, .375

$36.99

$

In Stock, only 4 left!

0

16

Cub Cadet 731-06348

Cover, Steering Gear, RH

$10.99

$

In Stock, only 1 left!

0

17

Cub Cadet 731-06354

Cover, Steering Gear, LH

$10.99

$

In Stock, only 1 left!

0

18

Cub Cadet 731-3020

Hubcap
(Superseded to 931-3020)

$8.99

$

In Stock, Qty 20+

0

19

Cub Cadet 734-04365

Tire
(Superseded to 734-3186A)

$44.99

$

In Stock, only 2 left!

0

20

Cub Cadet 736-0242

Washer, Belleville, .34 x .872 x .06

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0262

Washer, Flat, .385 x .87 x .092

$3.99

$

In Stock, Qty 10

0

22

Cub Cadet 736-0270

Washer, Belleville, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0866

Washer, Flat, .755 x 1.92 x .060

$4.49

$

In Stock, Qty 6

0

24

Cub Cadet 737-3000

Fitting, Lube, 3/16 drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 738-1011A

Bolt, Shoulder, .5 x 2.23 : 3/8-16

$8.49

$

In Stock, Qty 11

0

26

Cub Cadet 747-04909

Rod, Tie, 3/8-24 x 18.27

$27.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 748-04185

Gear, Spur, 13T RH

$

$

Not available

28

Cub Cadet 748-04186

Gear, Spur, 14T RH

$

$

Not available

29

Cub Cadet 748-04187

Gear, Spur, 14T LH

$

$

Not available

30

Cub Cadet 748-04195

Gear, Spur, 13T LH

$42.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 750-04776

Spacer, .38 x .625 x .265

$5.49

$

In Stock, only 3 left!

0
