FMZ 50 (17AF4BFP209) - Cub Cadet 50" Zero-Turn Mower Engine Fuel System & Carburetor Parts Diagram

50" Zero-Turn Mower

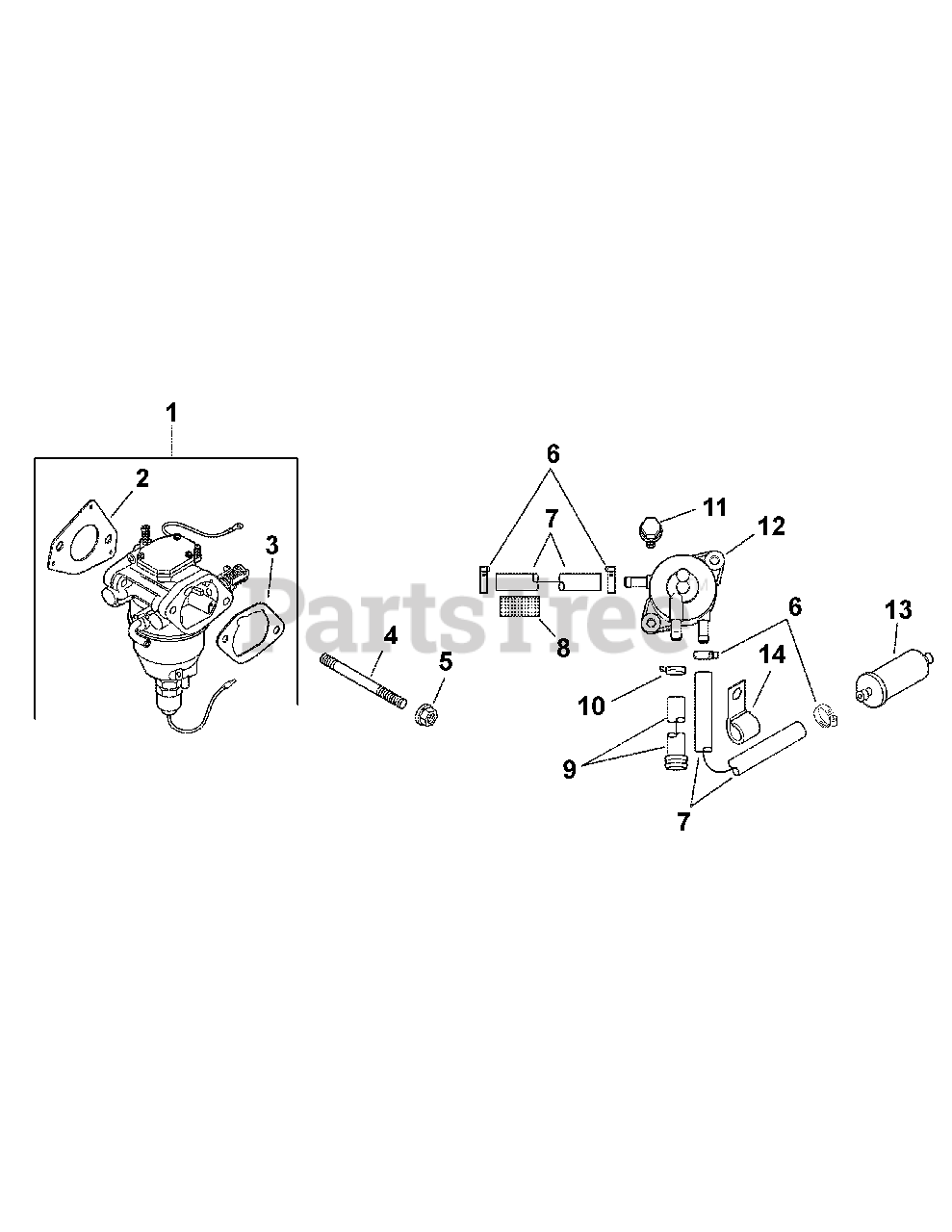

Engine Fuel System & Carburetor Parts Diagram

  • Title

1

Cub Cadet KH-32-853-07-S

Kit, Carburetor
(Superseded to KH-32-853-11-S)

Note: (Incl. 2-3)

$359.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-041-52-S

Gasket, Carburetor
(Superseded to KH-24-041-91-S)

$5.49

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-24-041-14

Gasket, Air Cleaner Base

$

$

Not available

4

Cub Cadet KH-M-629105-S

Stud, M6 x 1.0 x 106
(Superseded to KH-25-072-25-S)

$14.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-M-641060-S

Nut, Flange, M6 x 1.0

$4.49

$

In Stock, Qty 8

0

6

Cub Cadet KH-25-237-14-S

Clamp, Spring Hose 1/2
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

7

Cub Cadet KH-25-111-34-S

Line, Fuel
(Superseded to KH-25-111-81-S)

Note: (24"- Cut to Length

$17.99

$

In Stock, only 4 left!

0

8

Cub Cadet KH-25-431-10-S

Sleeve, Anti Abrasion
(Superseded to KH-25-431-12-S)

$10.99

$

In Stock, only 1 left!

0

9

Cub Cadet KH-32-326-02-S

Kit, Fuel Pump Hose w/Clamp
(Superseded to KH-32-326-07-S)

Note: (Incl. 10)

$4.49

$

In Stock, Qty 6

0

10

Cub Cadet KH-25-237-01-S

Clamp, Hose

$3.49

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-24-086-12

Screw, Tap, M6 x 1.7 x 18

$

$

Not available

12

Cub Cadet KH-24-393-16

Pump, Fuel

$

$

Not available

13

Cub Cadet KH-25-050-22-S

Filter, Fuel
(Superseded to KH-25-050-22-S1)

$9.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-47-154-01-S

Clip, Cable

$5.49

$

In Stock, only 4 left!

0

Cub Cadet KH-24-757-36-S

Service Kit, Choke Repair

Note: Not Shown

$116.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-38-S

Service Kit, Gasket

Note: Not Shown

$32.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-44-S

Kit, Float Repair

Note: Not Shown

$94.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-45-S

Kit, Solenoid Valve Repair

Note: Not Shown

$246.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-46-S

Kit, Carburetor Overhaul Repair

Note: Not Shown

$137.99

$

In Stock, only 1 left!

0
