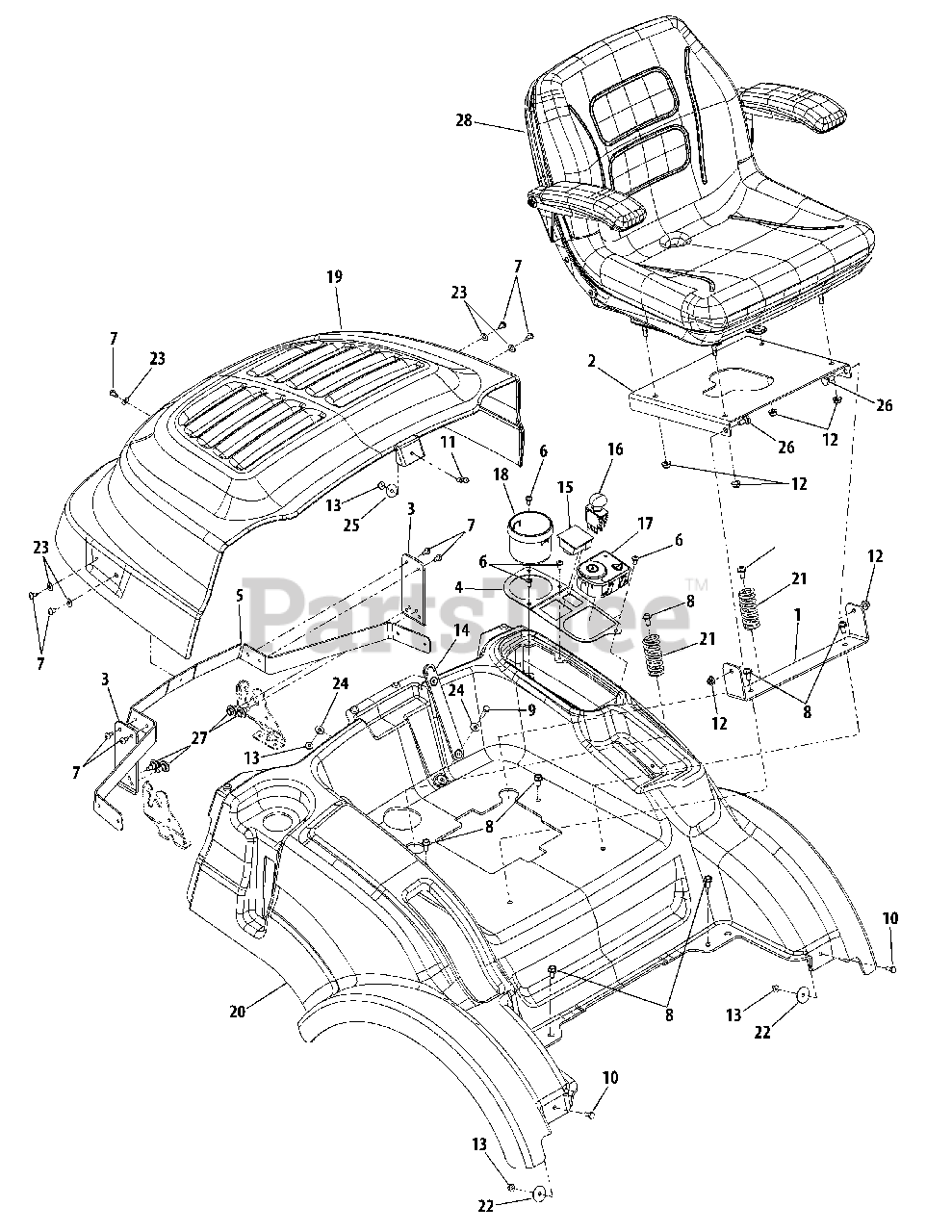

FMZ 50 (17AF4BFP209) - Cub Cadet 50" Zero-Turn Mower Engine Cover, Fender and Seat Parts Diagram

50" Zero-Turn Mower

Engine Cover, Fender and Seat Parts Diagram

  • Title

1

Cub Cadet 703-06402

Bracket, Seat Pivot
(Superseded to 703-06402-0637)

Variations

Cub Cadet 703-06402-0637

BRACKET-SEAT PIVOT - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 703-06403

Base, Seat Mounting

Variations

Cub Cadet 703-06403-0637

USE 703-06403A-0637 PLATE-BAS - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 703-06544

Bracket, Hood Pivot

Variations

Cub Cadet 703-06544-0637

PLATE-HOOD PIVOT B - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 703-06550

Panel, Console Control

Variations

Cub Cadet 703-06550-0637

PANEL-CONTROL - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 703-06604

Bracket, Hood Support

Variations

Cub Cadet 703-06604-0637

SUPPORT-HOOD - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 710-04030

Screw, Pan Hd. Phillips, 1/4-20 x .5

$

$

Not available

7

Cub Cadet 710-04483

Screw, Pan Hd. Torx, 1/4-20 x .5

$6.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-04484

Screw, Hex Wash Hd. Tapp, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0597

Screw, Hex Cap, 1/4-20 x 1.0 Gr5

$3.99

$

In Stock, Qty 14

0

10

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 x .75 Gr5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 711-04069

Pin, Grasscatcher 1/4-20
(Superseded to 911-04069)

$8.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04063

Nut, Hex Insert Flange Lock, 5/16-18 GrF

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04064

Nut, Hex Insert Flange Lock, 1/4-20 GrF

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 723-04008A

Strap, Hood

$9.99

$

In Stock, Qty 20+

0

15

Cub Cadet 725-04022B

Meter, Indicator/Hour
(Superseded to 925-04022B)

$146.99

$

In Stock, only 1 left!

0

16

Cub Cadet 725-04174

Switch, Electric PTO
(Superseded to 925-04174A)

$70.99

$

In Stock, Qty 5

0

17

Cub Cadet 725-04227B

Module, Key Switch
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

18

Cub Cadet 731-04591A

Holder, Cup

$15.99

$

In Stock, only 1 left!

0

19

Cub Cadet 731-06302

Hood

$

$

Not available

20

Cub Cadet 731-06312

Fender

$

$

Not available

21

Cub Cadet 732-04035

Spring, Compression, 1.28 x 3.125

$10.99

$

In Stock, only 4 left!

0

22

Cub Cadet 736-0211

Washer, Flat, .285 x 1.25 x .06

$6.99

$

In Stock, Qty 7

0

23

Cub Cadet 736-0463

Washer, Flat, .25 x .63 x .0515

$4.49

$

In Stock, only 2 left!

0

24

Cub Cadet 736-3090

Washer, Flat, .26 x .72 x .60

$6.99

$

In Stock, only 1 left!

0

25

Cub Cadet 736-3092

Washer, Flat, .265 x 1.0 x .030 HT

$3.99

$

In Stock, Qty 9

0

26

Cub Cadet 738-0140

Screw, Shoulder, .435 x .178:5/16-18

$5.99

$

In Stock, Qty 15

0

27

Cub Cadet 738-04091A

Screw, Shoulder, .43 x .29:TT:5/16-18

$3.99

$

In Stock, only 2 left!

0

28

Cub Cadet 757-04070

Seat, w/Arm Rests
(Superseded to 757-04115)

$

$

Not available

28

Cub Cadet 02002255

Armrest Kit

Note: not shown

$281.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 710-3256

Screw, Button Head 1/4-20 x .50

Note: not shown

$10.99

$

Usually ships in 3-6 days

0
