FMZ 50 (17AF4BFP209) - Cub Cadet 50" Zero-Turn Mower Deck Frame and Lift Handle Parts Diagram

50" Zero-Turn Mower

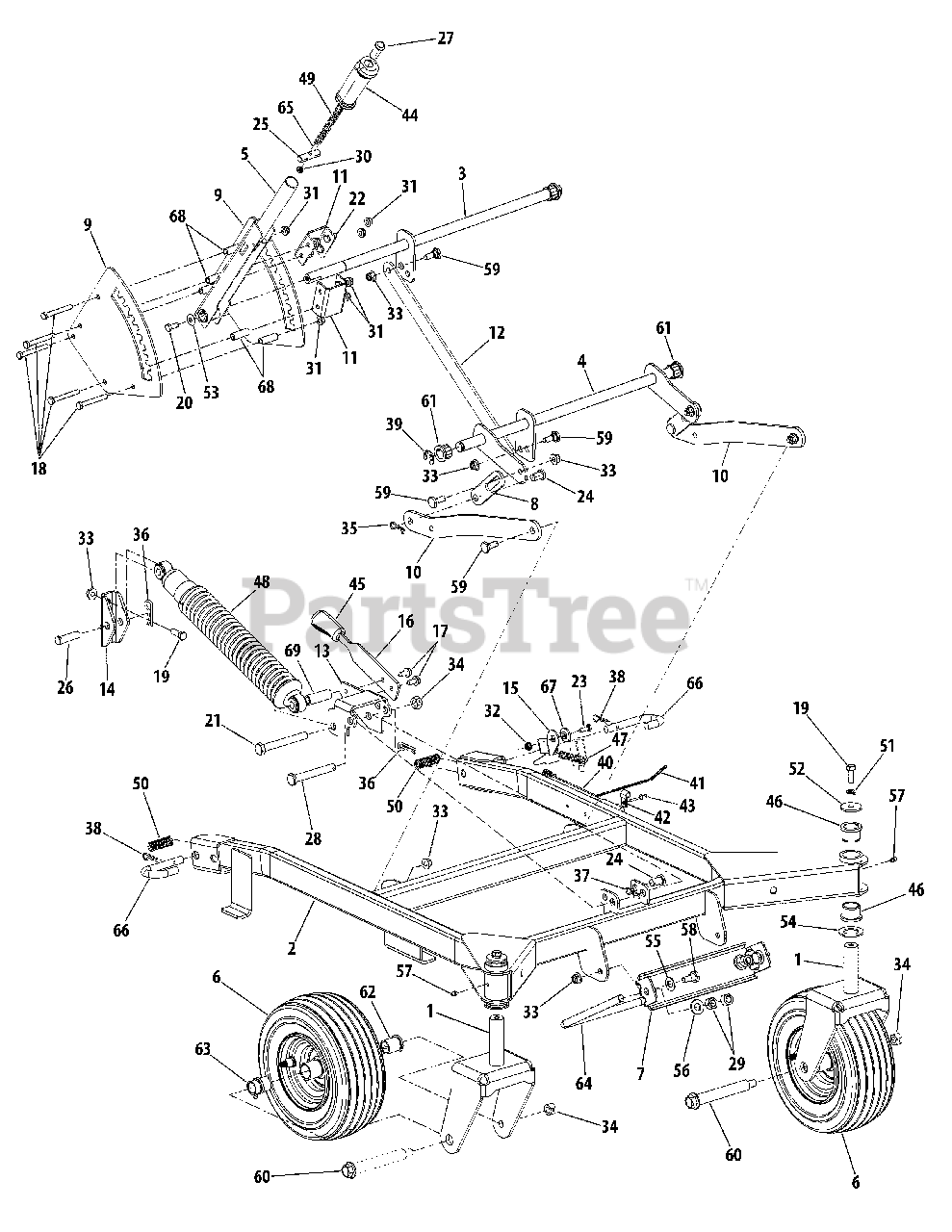

Deck Frame and Lift Handle Parts Diagram

  • Title

1

Cub Cadet 603-04308

Bracket, Castor Wheel
(Superseded to 603-04308A)

Variations

Cub Cadet 603-04308-0716

Caster Yoke Assembly, Yellow - CUB YELLOW-99 (0716)

$98.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04308-0650

Caster Yoke Assembly, Red - RED METALLIC (0650)

$98.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04308-0606

Caster Yoke Assembly, Orange - MAJESTIC ORANGE (0606)

$98.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04308-0637

Caster Yoke Assembly - POWDER BLACK (0637)

$98.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04308-0638

Caster Yoke Assembly, Red - MTD/TROY-BILT RED (0638)

$98.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04308-0665

Caster Yoke Assembly - YARDMAN GREEN (0665)

$98.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04308-0674

Caster Yoke Assembly, Yellow - YARDMAN YELLOW (0674)

$98.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04308-0691

Caster Yoke Assembly - BLACK JACK (0691)

$98.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04308-4015

Caster Yoke Assembly - FIRE RED (4015)

$98.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04308-4021

Caster Yoke Assembly, Yellow - CUB YELLOW 2 (4021)

$98.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04308-4038

Caster Yoke Assembly - DAY ORANGE (4038)

$98.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04308-4044

USE 603-04308A-4044 YOKE ASM- - CRAFTSMAN RED (4044)

$98.99

$

Usually ships in 3-6 days

0

$79.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-04499-0637

Frame, Deck
(Superseded to 759-04307)

Note: 5-23-08 & Before

$

$

Not available

2

Cub Cadet 603-04499A-0637

Frame, Deck
(Superseded to 759-04307)

Note: 5-23-08 & After

$

$

Not available

3

Cub Cadet 603-04505

Shaft Assembly, Deck Lift

Variations

Cub Cadet 603-04505-0637

USE 603-04505A-0637 SHAFT-LIF - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 603-04506

Shaft Assembly, Deck Lift

Variations

Cub Cadet 603-04506-0637

SHAFT-DECK LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 603-04509

Handle Assembly, Lift

Variations

Cub Cadet 603-04509-0637

HANDLE-LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 634-04212A

Wheel Assembly, Caster
(Superseded to 634-04212C)

$103.99

$

In Stock, Qty 6

0

7

Cub Cadet 703-05414A

Bracket, Front Deck Hanger

Variations

Cub Cadet 703-05414A-0606

BRACKET-DECK HANGER - MAJESTIC ORANGE (0606)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-4021

Hanger Deck Bracket - CUB YELLOW 2 (4021)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-0650

BRACKET-DECK HANGER - RED METALLIC (0650)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-0691

BRACKET-DECK HANGER - BLACK JACK (0691)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-4033

Hanger Deck Bracket - FLINT MICA (4033)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-4044

BRACKET-DECK HANGER - CRAFTSMAN RED (4044)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-0637

BRACKET-DECK HANGER - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-0638

BRACKET-DECK HANGER - MTD/TROY-BILT RED (0638)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-0674

BRACKET-DECK HANGER - YARDMAN YELLOW (0674)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-0709

BRACKET-DECK HANGER - MASTERCRAFT GREEN (0709)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-0716

BRACKET-DECK HANGER - CUB YELLOW-99 (0716)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-4015

BRACKET-DECK HANGER - FIRE RED (4015)

$66.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-06209

Link, Deck Lift Arm

Variations

Cub Cadet 703-06209-0637

LINK-LIFT SHAFT - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 703-06213

Plate, Index

Variations

Cub Cadet 703-06213-0637

LIFT INDEX PLATE (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

10

Cub Cadet 703-06389

Arm, Deck Lift

Variations

Cub Cadet 703-06389-0637

USE 703-06389A-0637 ARM-PARAL - POWDER BLACK (0637)

$

$

Not available

$

$

11

Cub Cadet 703-06408

Bracket, Index Mounting
(Superseded to 703-06408A)

Variations

Cub Cadet 703-06408-0637

BRACKET-INDEX PLATE - POWDER BLACK (0637)

$

$

Not available

$

$

12

Cub Cadet 703-06409

Link, Deck Lift

Variations

Cub Cadet 703-06409-0637

LINK-LIFT HANDLE SHAFT - POWDER BLACK (0637)

$

$

Not available

$

$

13

Cub Cadet 703-06568

Bracket, Shock Absorber Mounting

Variations

Cub Cadet 703-06568-0637

BRACKET-SHOCK MOUNTING - POWDER BLACK (0637)

$

$

Not available

$

$

14

Cub Cadet 703-06596

Mount, Shock Abs.

Variations

Cub Cadet 703-06596-0637

BRACKET-SHOCK MOUNTING - POWDER BLACK (0637)

$

$

Not available

$

$

15

Cub Cadet 703-06663

Bracket, Deck Limit Switch
(Superseded to 703-06663-0637)

Variations

Cub Cadet 703-06663-0637

BRACKET-DECK SWITCH - POWDER BLACK (0637)

$

$

Not available

$

$

16

Cub Cadet 703-06673

Handle, Shock Absorber

Variations

Cub Cadet 703-06673-0637

HANDLE-SHOCK ABSORBER - POWDER BLACK (0637)

$

$

Not available

$

$

17

Cub Cadet 710-04484

Screw, Hex Wash. Hd. Tapp, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-0378

Screw, Hex Cap, 5/16-18 x 2.5 Gr5

$4.99

$

In Stock, only 4 left!

0

19

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 Gr5

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0627

Screw, Hex Cap Lock, 5/16-24 x .75 Gr5

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 710-0786

Screw, Hex Cap, 1/2-13 x 4.0 Gr5

$16.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75 Gr5

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 x .75 Gr5

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 711-0332

Pin, Clevis, .5 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 17

0

25

Cub Cadet 711-04898

Pin, Index

$

$

Not available

26

Cub Cadet 711-04997

Pin, Clevis, .5 x 1.59

$

$

Not available

27

Cub Cadet 711-0642A

Button, Handle

$7.99

$

In Stock, Qty 12

0

28

Cub Cadet 711-1206

Pin, Clevis, .5 x 3.75

$13.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 712-0206

Nut, Hex, 1/2-13 Gr5

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 712-0298

Nut, Hex Jam, 1/4-20
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 712-04063

Nut, Hex Insert Flange Lock, 5/16-18 GrF

$3.99

$

In Stock, Qty 5

0

32

Cub Cadet 712-04064

Nut, Hex Insert Flange Lock, 1/4-20 GrF

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 712-04065

Nut, Hex Insert Flange Lock, 3/8-16 GrF

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 712-3022

Nut, Hex Lock, 1/2-13 GrB

$3.99

$

In Stock, Qty 9

0

35

Cub Cadet 714-0145

Pin, Internal Cotter

$4.99

$

In Stock, Qty 20+

0

36

Cub Cadet 714-0147

Pin, Internal Cotter

$4.99

$

In Stock, Qty 6

0

37

Cub Cadet 714-04023

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 714-0470

Pin, Internal Cotter

Note: Replaces 714-04023 in this application

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 716-0231

E-Ring, Retainer

$3.99

$

In Stock, Qty 20+

0

40

Cub Cadet 725-04715

Harness, Safety

$

$

Not available

41

Cub Cadet 726-0154

Tie, Cable, Push Mount
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 726-04056

Clamp, Hose

$4.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 728-04000

Rivet, Pop, .188 x .3

$6.99

$

In Stock, Qty 8

0

44

Cub Cadet 731-3158

Grip, Deck Lift Handle

$17.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 731-04735

Grip, Shock Absorber Handle

$20.99

$

In Stock, only 1 left!

0

46

Cub Cadet 731-05500

Bearing, Flange, 1.0 x 1.246

$10.99

$

In Stock, Qty 20+

0

47

Cub Cadet 732-0428A

Spring, Extension, .50 x 4.35

$

$

Not available

48

Cub Cadet 732-04512

Shock Absorber

$134.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 732-3097

Spring, Compression, .4 x 8.52

$14.99

$

In Stock, only 4 left!

0

50

Cub Cadet 732-3127

Spring, Compression, .66 x 1.9
(Superseded to 932-3127)

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

52

Cub Cadet 736-0227

Washer, Flat, .39 x 1.5 x .134

$6.49

$

In Stock, Qty 13

0

53

Cub Cadet 736-0242

Washer, Belleville, .34 x .872 x .06

$4.49

$

In Stock, Qty 20+

0

54

Cub Cadet 736-0250

Washer, Flat, 1.0 x 1.75 x .107

$4.49

$

Usually ships in 3-6 days

0

55

Cub Cadet 736-0272

Washer, Flat, .52 x 1.0 x .06

$4.99

$

In Stock, Qty 20+

0

56

Cub Cadet 736-3019

Washer, Flat, .531 x 1.062 x .134 HT

$5.99

$

In Stock, Qty 11

0

57

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

58

Cub Cadet 738-0143

Screw, Shoulder, .496 x .336: 3/8-16

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet 738-0380

Screw, Shoulder, .5 x .27:3/8-16

$7.99

$

In Stock, only 1 left!

0

60

Cub Cadet 738-04182A

Bolt, Shoulder, .75 x 4.75: 1/2-13
(Superseded to 738-04182B)

$26.99

$

In Stock, Qty 20+

0

61

Cub Cadet 741-0245

Bearing, Hex Flange, .75 ID
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

62

Cub Cadet 741-0516B

Bearing, Flange, .76 x 1.0 x 1.2

$6.49

$

In Stock, Qty 20+

0

63

Cub Cadet 741-0990B

Bearing, Flange, .76 ID w/ Lube Fitting

$10.99

$

In Stock, Qty 20+

0

63

Cub Cadet 737-3034

Grease -#251 EP, Tube

Note: Not Shown

$

$

Not available

64

Cub Cadet 747-04858

Rod, Deck Front Hanger

$24.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 747-04859

Rod, Lift Index

$

$

Not available

66

Cub Cadet 747-3188

Rod, Deck Release

$34.99

$

In Stock, only 3 left!

0

67

Cub Cadet 748-04192

Spacer, Shoulder, .5 x .11 x .25

$8.49

$

Usually ships in 3-6 days

0

68

Cub Cadet 750-04981

Spacer, Handle

$

$

Not available

69

Cub Cadet 750-05095

Spacer, .51 x .69 x 1.97

$

$

Not available

Cub Cadet 735-04130

Strip - Edge Trim Frame

Note: Not Shown

$8.49

$

Usually ships in 3-6 days

0
