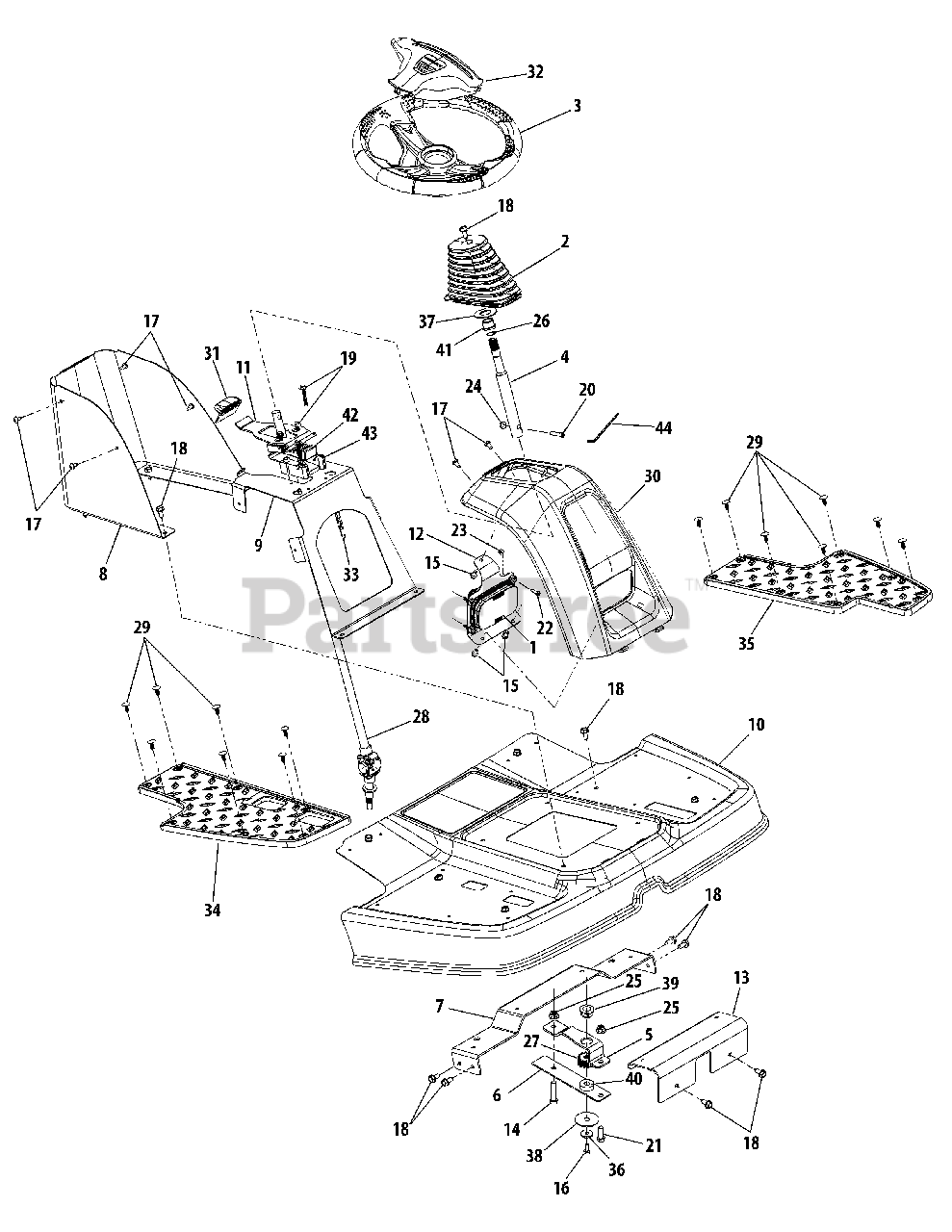

FMZ 50 (17AF4BFP010) - Cub Cadet 50" Zero-Turn Mower Steering Shaft, Pedestal & Running Board Parts Diagram

50" Zero-Turn Mower

Steering Shaft, Pedestal & Running Board Parts Diagram

  • Title

1

Cub Cadet 625-04036P

Headlight Assembly

$121.99

$

In Stock, only 2 left!

0

1

Cub Cadet 925-3161A

Lamp Assembly

$52.99

$

In Stock, only 2 left!

0

2

Cub Cadet 631-0076

Boot, Tilt Steering

$

$

Not available

3

Cub Cadet 631-04008A

Wheel Assembly, Steering
(Superseded to 631-04008B)

$94.99

$

In Stock, only 4 left!

0

4

Cub Cadet 638-04018

Shaft, Steering

$

$

Not available

5

Cub Cadet 703-06388

Bracket, Upper Steering Support

Variations

Cub Cadet 703-06388-0637

BRACKET-STEERING SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 703-06497

Bracket, Steering Pivot

$

$

Not available

7

Cub Cadet 703-06498

Bracket, Pedestal Mounting

Variations

Cub Cadet 703-06498-0637

BRACKET-RUNNINGBOARD - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 703-06551

Pedestal

Variations

Cub Cadet 703-06551-0637

CONSOLE-STEERING - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 703-06553

Bracket, Pedestal Front

Variations

Cub Cadet 703-06553-0637

BRACKET-CONSOLE REINFORCEMENT - POWDER BLACK (0637)

$

$

Not available

$

$

10

Cub Cadet 703-06558

Board, Running

Variations

Cub Cadet 703-06558-0637

RUNNGBRD-FRNT CUT - POWDER BLACK (0637)

$

$

Not available

$

$

11

Cub Cadet 703-06560

Bracket, Tilt Index

$

$

Not available

12

Cub Cadet 703-06563

Bracket, Headlight

Variations

Cub Cadet 703-06563-0637

BRACKET-HEADLAMP MOUNTING - POWDER BLACK (0637)

$

$

Not available

$

$

13

Cub Cadet 703-06633

Bracket, Pedestal Mounting

Variations

Cub Cadet 703-06633-0637

BRACKET-RUNNING BOARD FRONT - POWDER BLACK (0637)

$

$

Not available

$

$

14

Cub Cadet 710-0347

Screw, Hex Cap, 3/8-16 x 1.75 Gr5

$5.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-04187

Screw, Hex Wash. Hd. Lock, 1/4-15 x .5
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0433

Screw, Hex Cap, 1/4-20 x .625 Gr5 Lock

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-04483

Screw, Pan Hd. Torx, 1/4-20 x .5

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-04484

Screw, Hex Wash. Hd. Tapp, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-04586

Screw, Hex Wash Hd. Tapp, 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

20

Cub Cadet 710-04776

Screw, Socket Hd. 1/4-20 x 1.25

$

$

Not available

21

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 Gr5

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-3009

Screw, Pan Phillips Hd Tapp, #10-24 x .75

$7.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 712-0161

Nut, Hex Insert Lock, #10-24 Gr2

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 712-04064

Nut, Hex Insert Flange Lock, 1/4-20 GrF

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-04065

Nut, Hex Insert Flange Lock, 3/8-16 GrF

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 716-0115

Ring, Retaining, .56 Dia.
(Superseded to 916-0115)

$

$

Not available

27

Cub Cadet 717-04570

Gear, Steering, 14T
(Superseded to 917-04570)

$

$

Not available

28

Cub Cadet 717-04571

Shaft, Steering

$

$

Not available

29

Cub Cadet 726-3046

Clip, Ratchet, .25

$3.99

$

In Stock, Qty 16

0

30

Cub Cadet 731-06324

Housing, Pedestal
(Superseded to 931-06324)

$

$

Not available

31

Cub Cadet 731-3224

Lever, Tilt

$11.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 731-04532A

Cover, Steering Wheel;
(Superseded to 731-04532B)

$24.99

$

In Stock, Qty 12

0

33

Cub Cadet 732-0932

Spring, Extension, .38 x 5.6

$14.99

$

In Stock, only 4 left!

0

34

Cub Cadet 735-04124

Pad, Foot, RH

$

$

Not available

35

Cub Cadet 735-04125

Pad, Foot, LH

$

$

Not available

36

Cub Cadet 736-0176

Washer, Flat, .265 x .938 x.12

$4.99

$

In Stock, only 4 left!

0

37

Cub Cadet 736-0514

Washer, Flat, .885 x 1.85 x .06

$

$

Not available

38

Cub Cadet 736-0518

Washer, Thrust, .445 x 1.92 x .06

$10.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 741-0225

Bearing, Hex Flange
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

40

Cub Cadet 741-04323

Bearing, Flange, 7/16

$

$

Not available

41

Cub Cadet 748-0176

Bearing, Flange, .63 x .62

$9.99

$

In Stock, only 1 left!

0

42

Cub Cadet 748-3083A

Index, Tilt Steering

$

$

Not available

43

Cub Cadet 748-3084A

Block, Tilt Steering

$

$

Not available

44

Cub Cadet 714-04065

Wrench, Allen, 3/16

$

$

Not available
