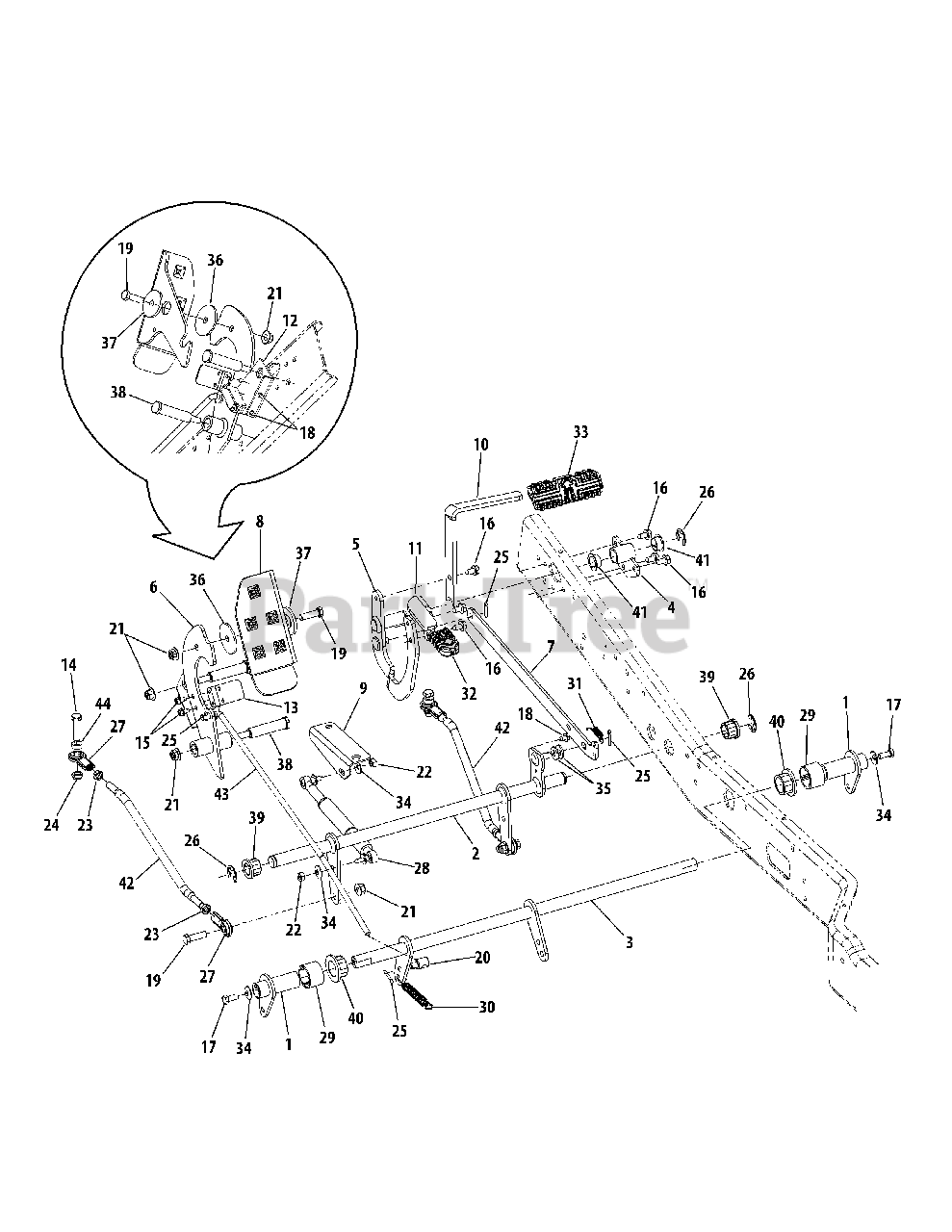

FMZ 50 (17AF4BFP010) - Cub Cadet 50" Zero-Turn Mower Drive Pedals & Controls Parts Diagram

50" Zero-Turn Mower

Drive Pedals & Controls Parts Diagram

  • Title

1

Cub Cadet 603-04526

Lever, Brake

$

$

Not available

2

Cub Cadet 603-04535

Shaft, Control Pedal
(Superseded to 603-04535A)

$

$

Not available

3

Cub Cadet 603-04560

Shaft, Brake Cross

Variations

Cub Cadet 603-04560-0637

SHAFT-BRAKE CROSS - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 603-04587

Hub, Pedal Pivot

Variations

Cub Cadet 603-04587-0637

HUB-PEDAL PIVOT - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 603-04590

Pedal, Reverse/Forward

Variations

Cub Cadet 603-04590-0637

PIVOT ASM-PEDAL - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 603-04602

Pedal, Brake Pivot

Variations

Cub Cadet 603-04602-0637

PIVOT ASM-PEDAL - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 703-06339

Link, Forward

Variations

Cub Cadet 703-06339-0637

LINK-FWD CONTROL - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 703-06603

Pedal, Brake

Variations

Cub Cadet 703-06603-0637

PEDAL-BRAKE - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 703-06629

Bracket, Damper Cylinder Mount

Variations

Cub Cadet 703-06629-0637

BRACKET-DAMPER CYLINDER MOUNT - POWDER BLACK (0637)

$

$

Not available

$

$

10

Cub Cadet 703-06636

Pedal, Forward

Variations

Cub Cadet 703-06636-0637

USE 703-06636A-0637 PEDAL-FOR - POWDER BLACK (0637)

$

$

Not available

$

$

11

Cub Cadet 703-06654

Pedal, Reverse

Variations

Cub Cadet 703-06654-0637

PEDAL-REVERSE - POWDER BLACK (0637)

$

$

Not available

$

$

12

Cub Cadet 703-06676

Bracket, Brake Switch Mounting

Variations

Cub Cadet 703-06676-0637

BRACKET-BRAKE SWITCH - POWDER BLACK (0637)

$

$

Not available

$

$

13

Cub Cadet 703-06678

Bracket, Brake Switch

Variations

Cub Cadet 703-06678-0637

BRACKET-BRAKE SWITCH - POWDER BLACK (0637)

$

$

Not available

$

$

14

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 x 1.5 Gr5

$4.49

$

In Stock, Qty 7

0

15

Cub Cadet 710-0599

Screw, Hex Wash. Hd. Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0604A

Screw, Hex Wash. Hd. Tapp, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0627

Screw, Hex Cap, 5/16-24 x .75 Gr5 Lock

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-0653

Screw, Hex Wash. Hd. Tapp, 1/4-20 x .375

$4.49

$

In Stock, Qty 13

0

19

Cub Cadet 710-3005

Hex Cap Screw, 3/8-16 1.25 Gr5

$3.99

$

In Stock, Qty 12

0

20

Cub Cadet 711-0832

Ferrule, 3/8-24 x .375
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

21

Cub Cadet 712-04065

Nut, Hex Insert Flange Lock, 3/8-16 GrF

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-0690

Nut, Hex, M8-1.25

$

$

Not available

23

Cub Cadet 712-0711

Nut, Jam, 3/8 -24 Gr5

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 712-3020

Nut, Hex Insert Jam Lock, 3/8-16 Gr5
(Superseded to 912-3020)

$6.49

$

In Stock, Qty 10

0

25

Cub Cadet 714-0474

Pin, Cotter, .125 x .75

$4.99

$

In Stock, Qty 14

0

26

Cub Cadet 716-0231

Ring, E

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 723-04035

Ball Joint End . 375

$36.99

$

In Stock, Qty 5

0

28

Cub Cadet 727-3113

Cylinder, Damper

$207.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 731-05163

Spacer, 1.5 x 1.0 x 1.0

$7.49

$

In Stock, Qty 20+

0

30

Cub Cadet 732-0429A

Spring, Extension, .5 x 3.97
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

31

Cub Cadet 732-04549

Spring, Extension, .375 x 1.48

$

$

Not available

32

Cub Cadet 735-04117

Pad, Reverse Pedal

$6.49

$

In Stock, only 3 left!

0

33

Cub Cadet 735-04118

Pad, Forward Pedal
(Superseded to 735-04118A)

$14.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 736-0242

Washer, Belleville, .34 x .872 x .06

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 736-0262

Washer, Flat, .385 x .87 x .092

$3.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 736-04018

Washer, Flat, .38 x 2.0 x .12

$7.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 738-04162A

Spacer, Shoulder, .884 x .19
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

38

Cub Cadet 738-04216A

Bolt, Shoulder, .625 x 2.515:3/8-16

$8.49

$

In Stock, Qty 9

0

39

Cub Cadet 741-0245

Bearing, Hex Flange, .75 ID
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

40

Cub Cadet 741-04324

Bearing, Hex Flange, 1.25 x .775

$

$

Not available

41

Cub Cadet 741-3084

Bearing, Flange, .75 x 1.125 x .375

$5.49

$

In Stock, only 2 left!

0

42

Cub Cadet 747-04883A

Rod, Control - Forward/Reverse

$

$

Not available

43

Cub Cadet 747-04896

Rod, Idler
(Superseded to 747-04896A)

$

$

Not available

44

Cub Cadet 750-04776

Spacer, .38 x .625 x .265

$5.49

$

In Stock, only 2 left!

0
